Service Standard

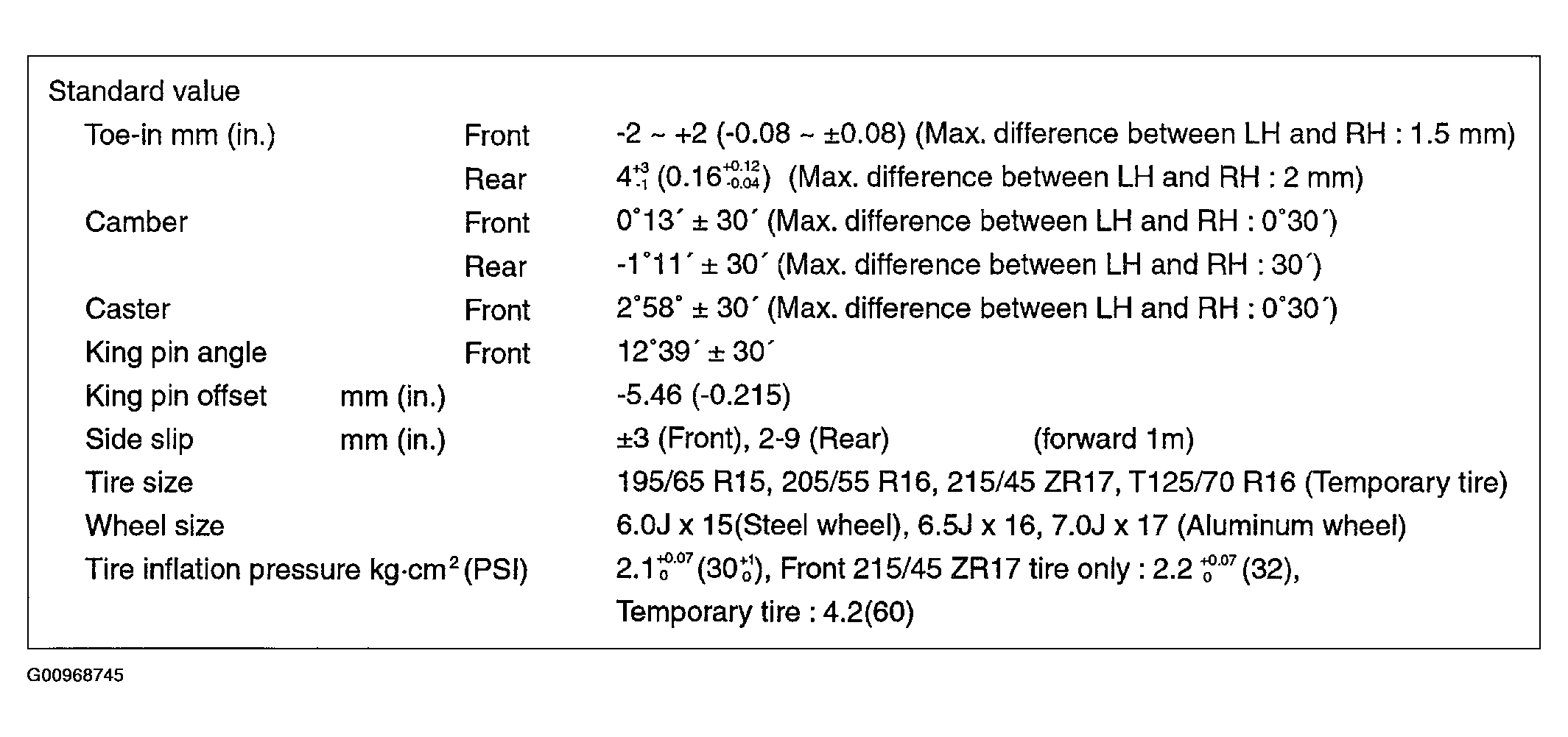

Fig 1: Service Standard Specification Table

Courtesy of HYUNDAI MOTOR CO.

CAUTION: When rotating the "215/45 ZR17" Tires, ensure to follow the "ROTATION" direction marked on the sidewall of tires. See WHEEL ROTATION .
