Home › Hyundai › 2003 › Tiburon Base, Automatic › Repair and Diagnosis › Suspension › Wheel Alignment › Wheel Alignment Specifications & Adjustment Procedures › General › Specifications › Notes

Wheel Alignment Specifications & Adjustment Procedures: General: Specifications: Notes

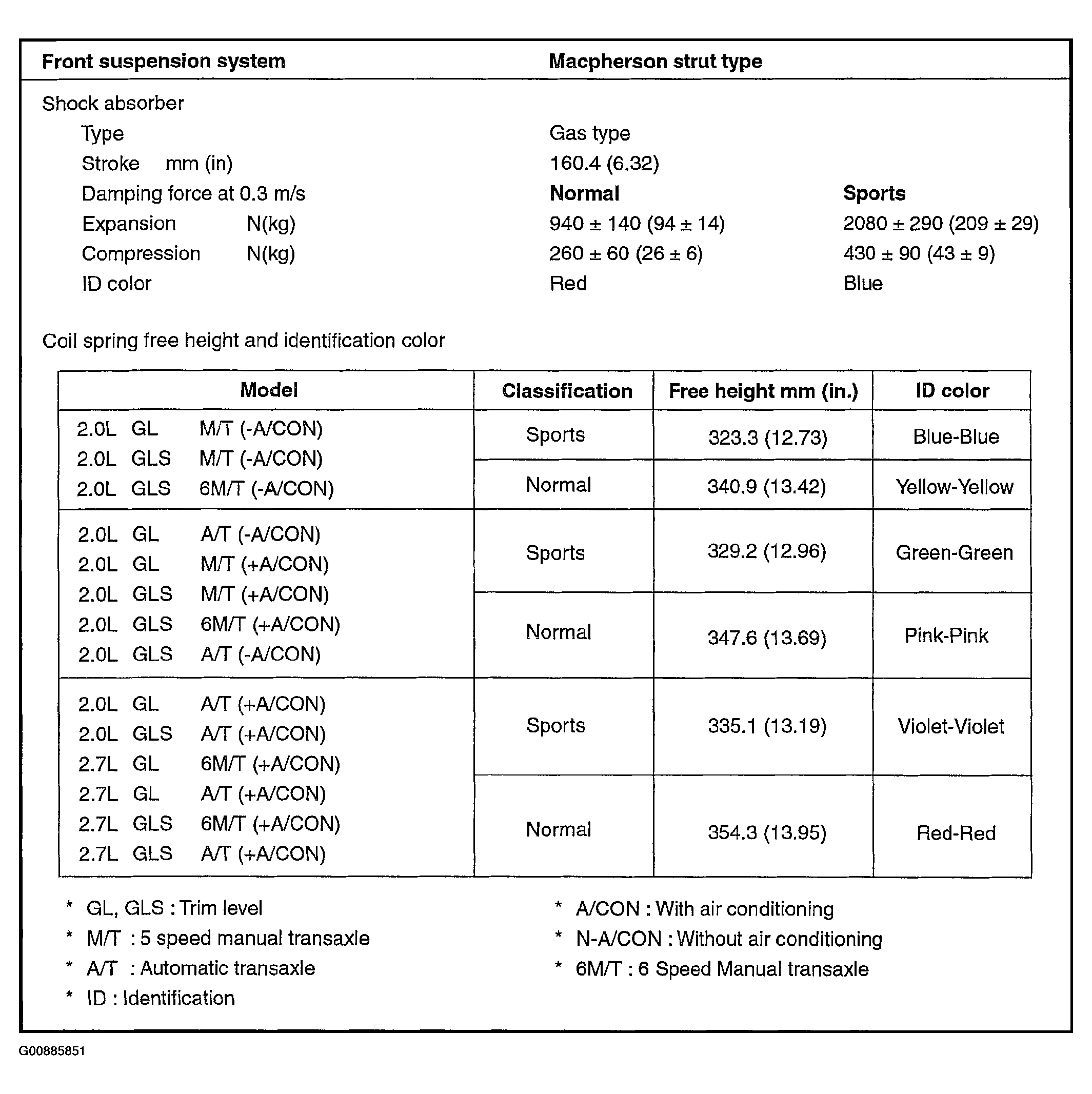

Fig 1: Front Suspension Specification
G00885851Courtesy of HYUNDAI MOTOR CO.

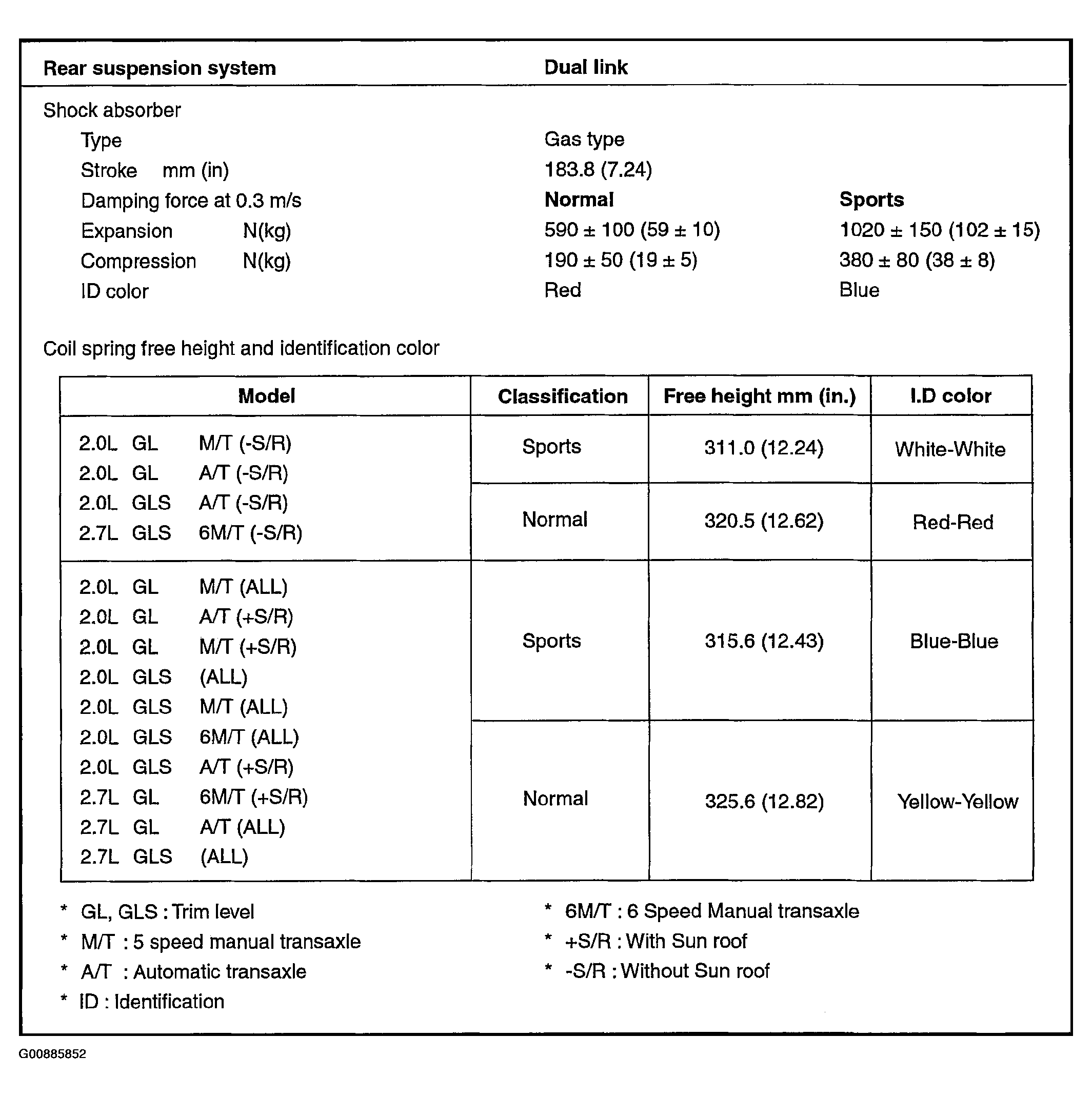

Fig 2: Rear Suspension Specification
G00885852Courtesy of HYUNDAI MOTOR CO.
