Wheel Alignment Specifications & Adjustment Procedures
›
General
›
Specifications
›
Service Standard
Service Standard

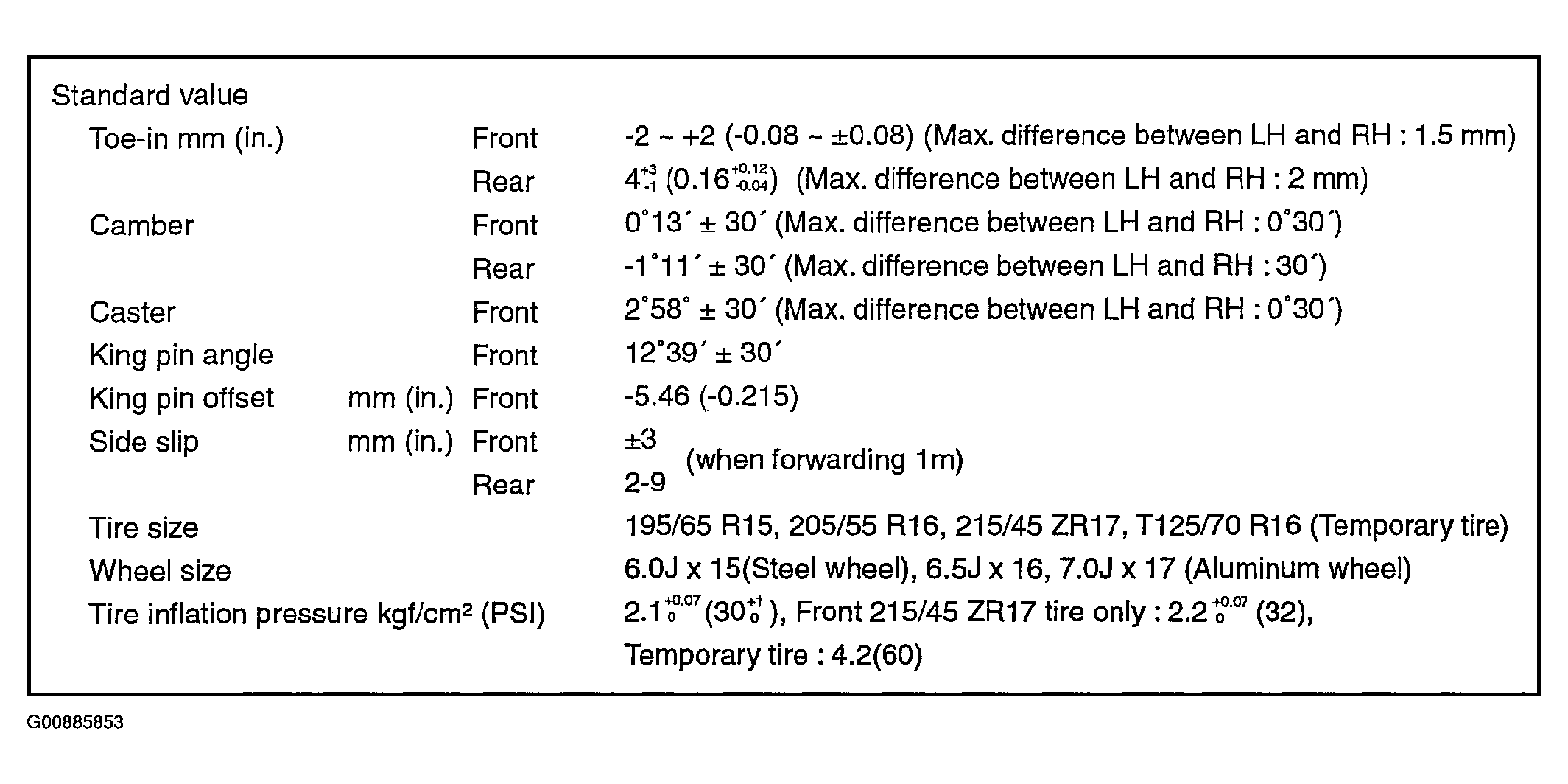

Fig 1: Service Standard Specifications
Courtesy of HYUNDAI MOTOR CO.
CAUTION:
When rotating the "215/45 ZR17" Tires, ensure to follow the "ROTATION" direction marked on the sidewall of tires. See
TIRE
.
