Rear Wheel Alignment: Toe-In
Standard value : 4+3-1 mm (0.16+0.12-0.04 in.)
NOTE:

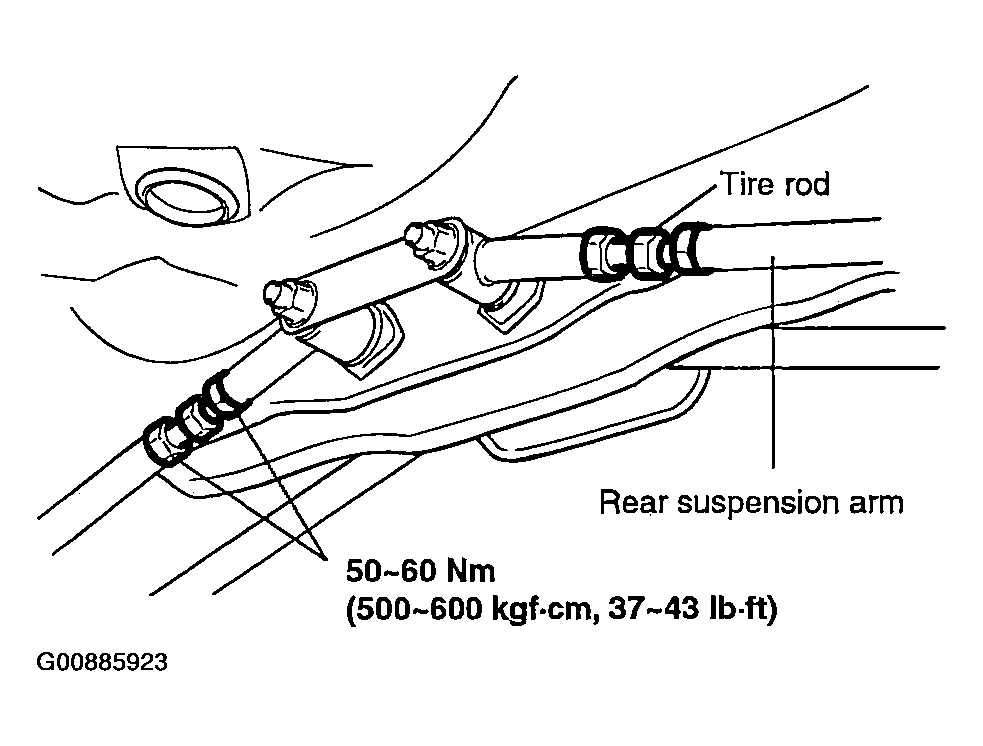

- Adjust the toe-in by turning the tie rod end of the rear suspension arm.
Left tie rod : Clockwise direction -> toe-in
Right tie rod : Clockwise direction -> toe-out
A variation of toe by a rotation of the tie rod : About 6mm (0.6°)
- The cam bolt should be adjusted to a maximum of 90° left or right from the center position.
CAUTION:
After adjusting the tie rod, tighten both nuts to the specified torque.
Specified torque
50~60 Nm (500~600 kgf.cm, 37~43 lbf.ft)
