Automatic Transaxle Hydraulic Circuit: Fourth

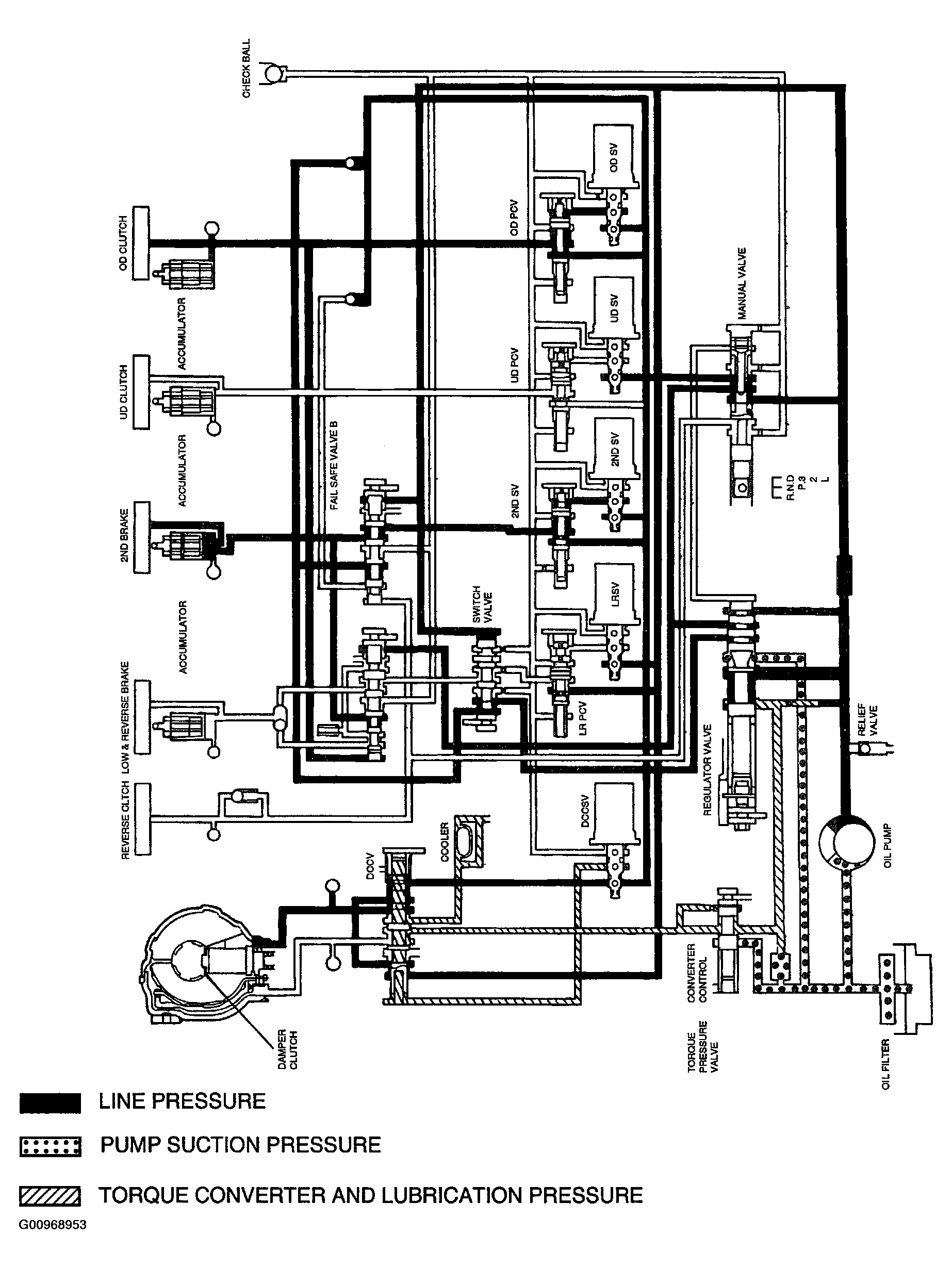

Fig 1: Identifying Hydraulic Circuit In Fourth Gear
G00968953Courtesy of HYUNDAI MOTOR CO.
