Automatic Transaxle Hydraulic Circuit: Reverse

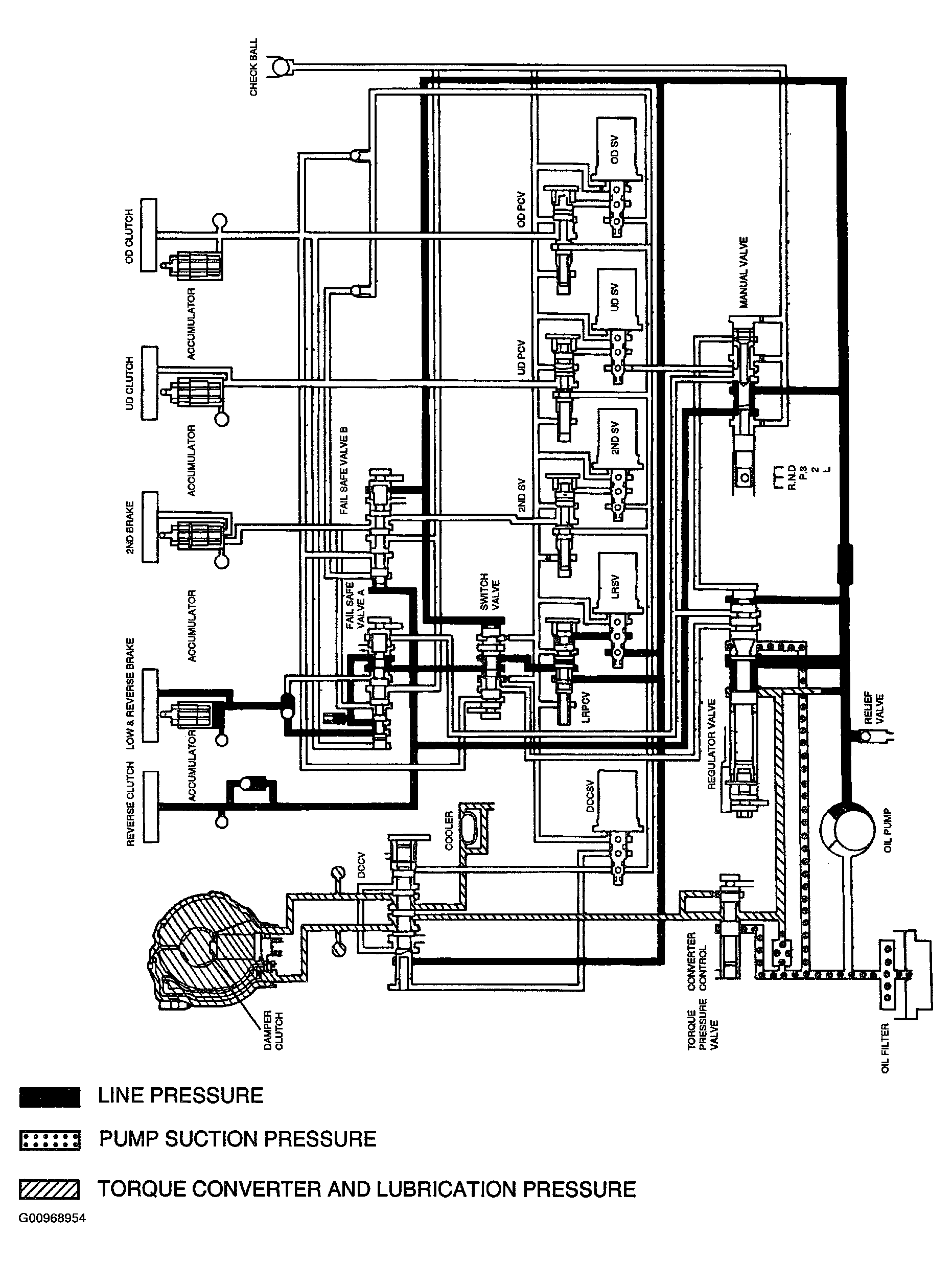

Fig 1: Identifying Hydraulic Circuit In Reverse Gear
G00968954Courtesy of HYUNDAI MOTOR CO.
