Elements In Use In Each Gear
Elements In Use In Each Gear

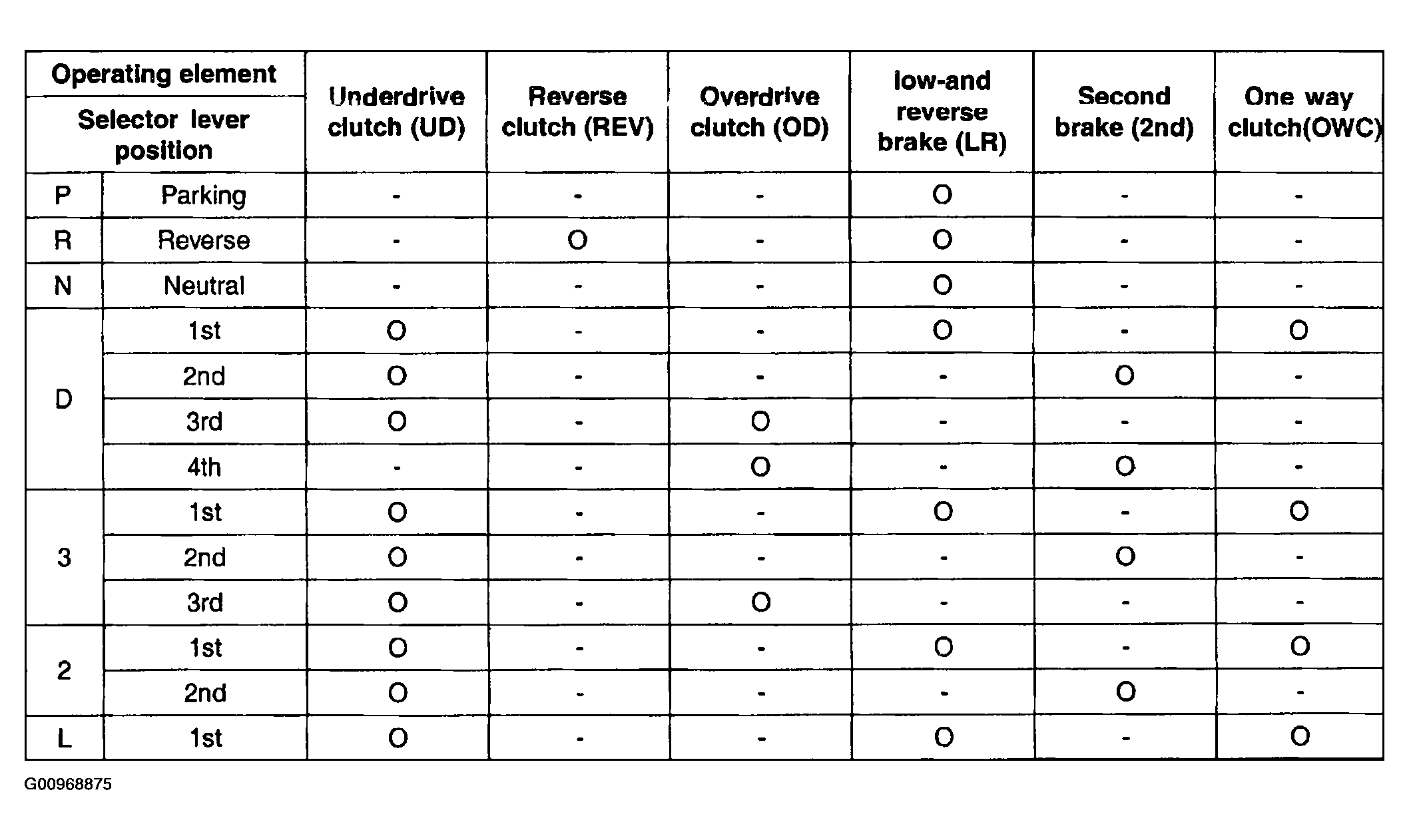

Fig 1: Elements In Use Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
