DTC P0715: Input Shaft Speed Sensor System

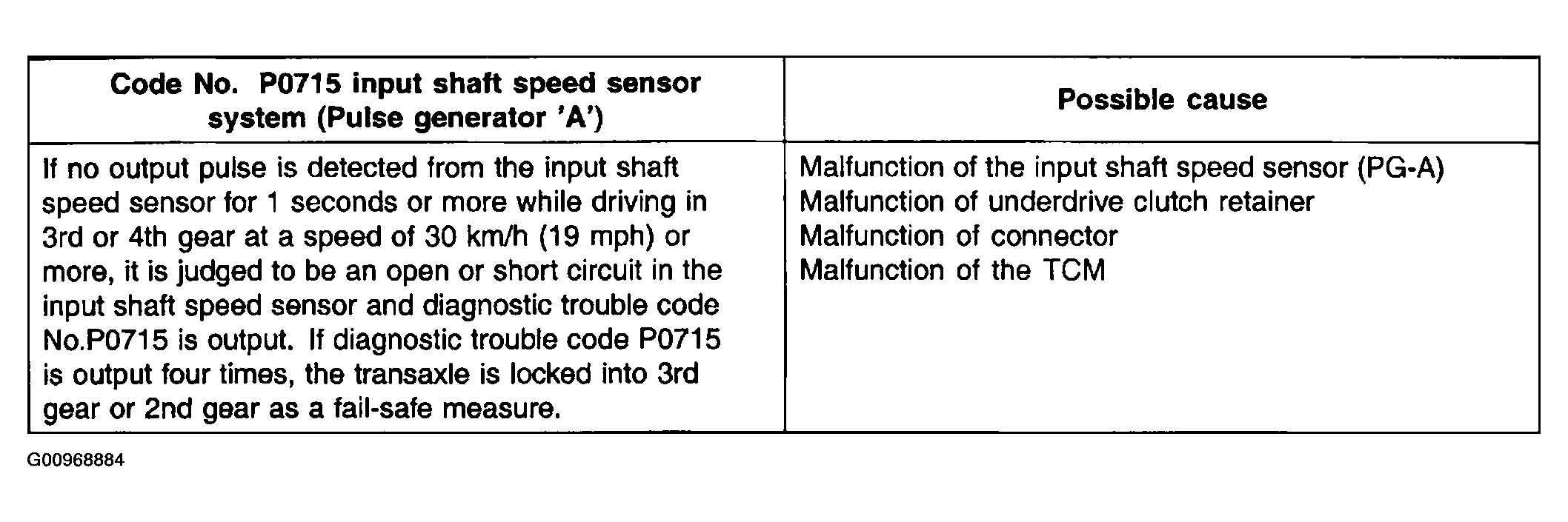

Fig 1: DTC P0715 Detecting Conditions & Probable Causes

Courtesy of HYUNDAI MOTOR CO.

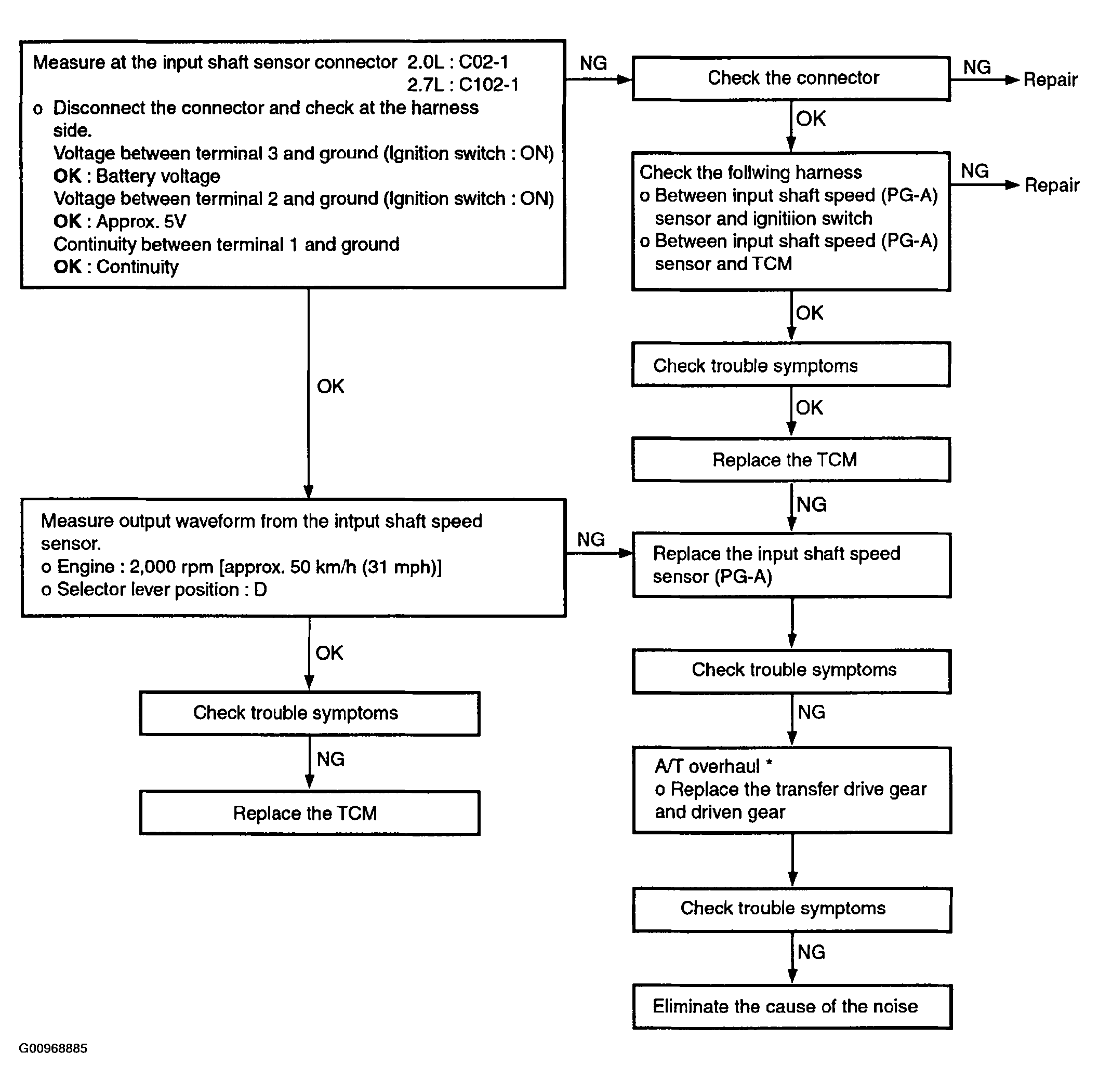

Fig 2: DTC P0715 Diagnostic Flow Chart

Courtesy of HYUNDAI MOTOR CO.

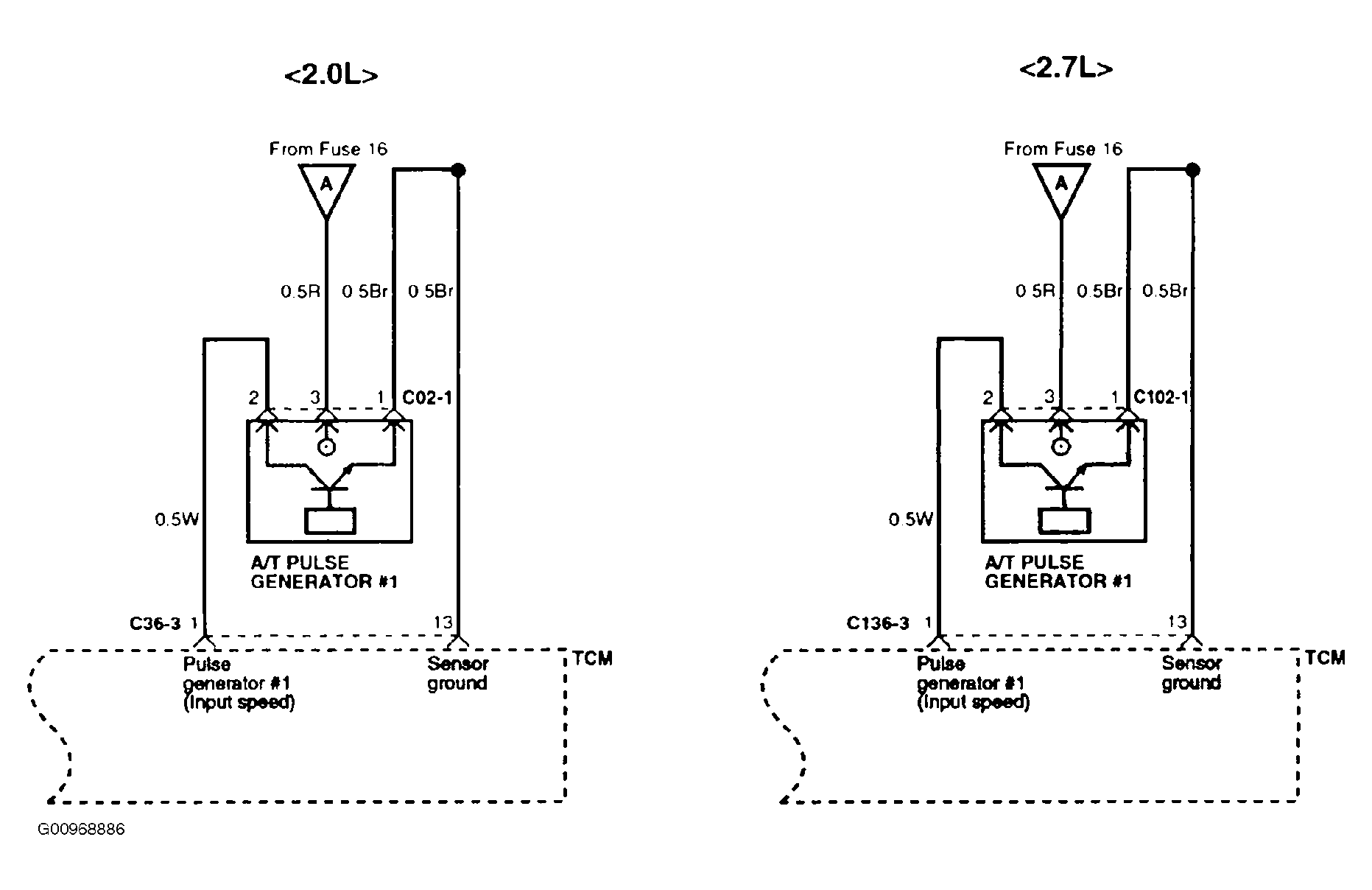

Fig 3: A/T Pulse Generator #1 Circuit

Courtesy of HYUNDAI MOTOR CO.
