DTC P0725: Crankshaft Position Sensor System
DTC P0725: Crankshaft Position Sensor System

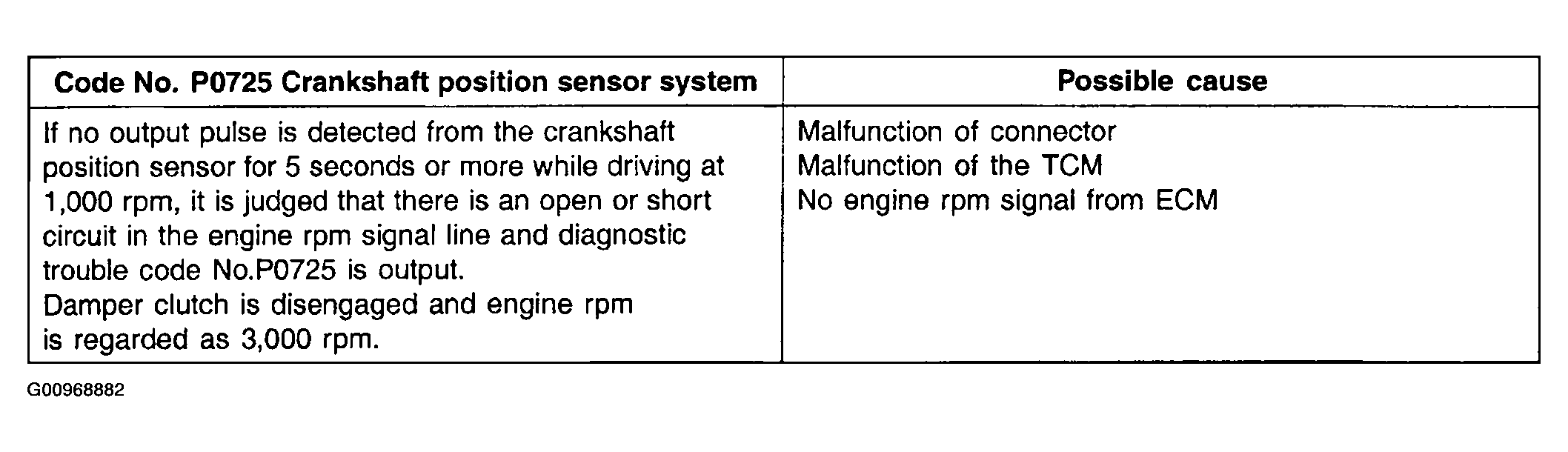

Fig 1: DTC P0725 Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

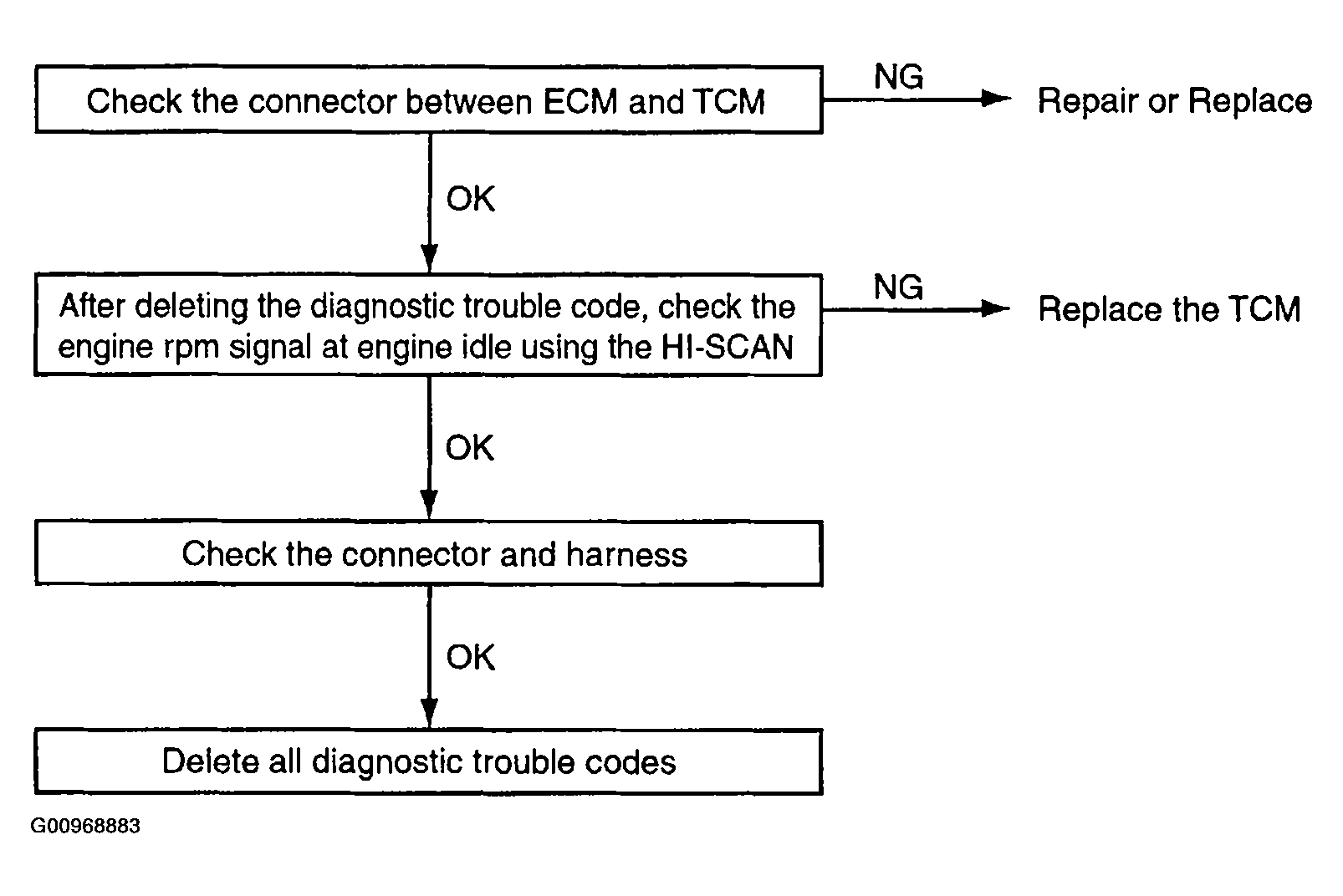

Fig 2: DTC P0725 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
