Inspection Process For Diagnostic
›
DTC P1702-P1704: Throttle Position Sensor System
DTC P1702-P1704: Throttle Position Sensor System

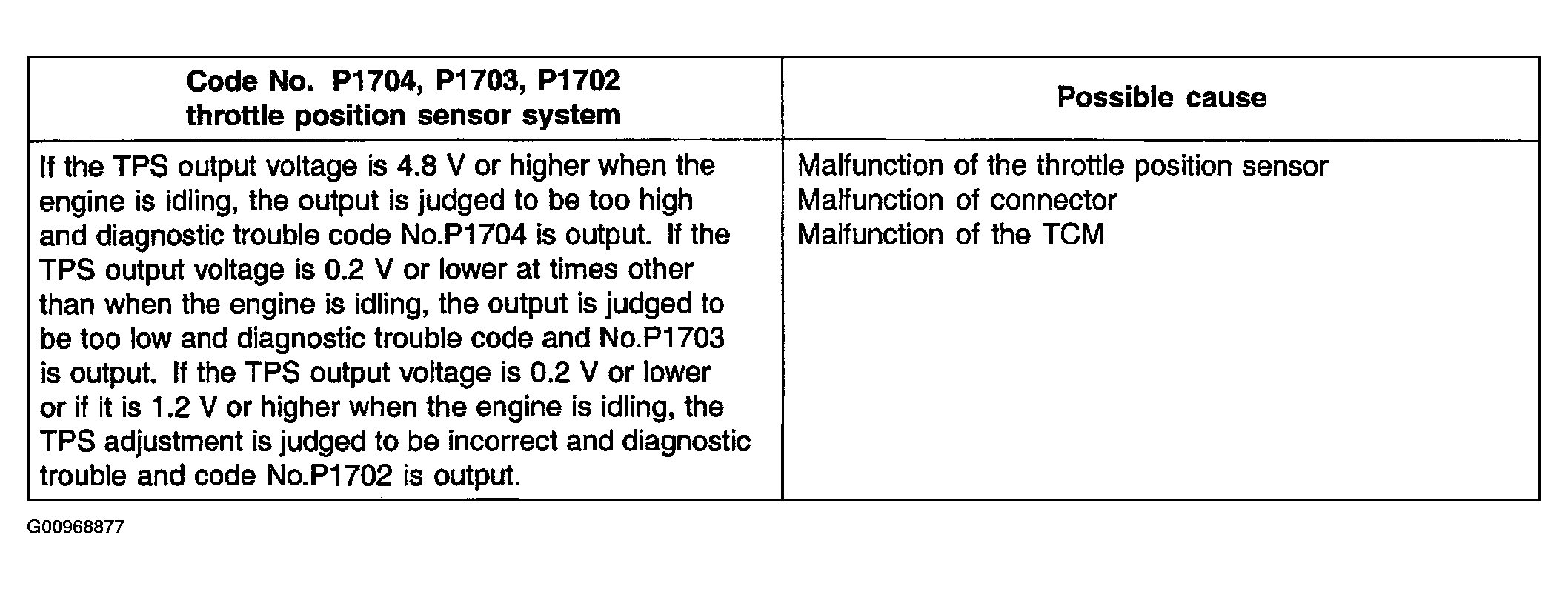

Fig 1: DTC P1702-P1704 Detecting Conditions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

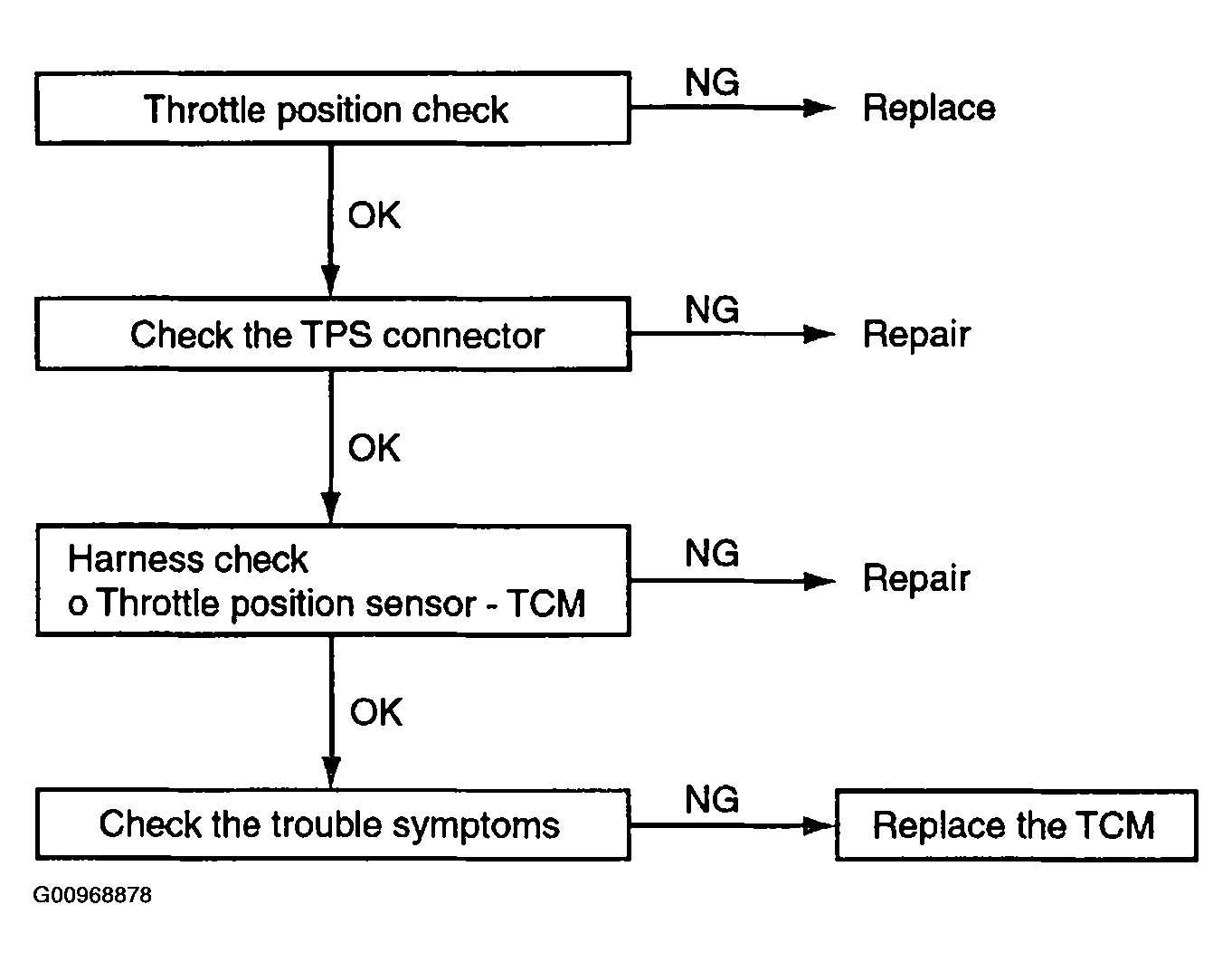

Fig 2: DTC P1702-P1704 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
