Inspection Procedure 7

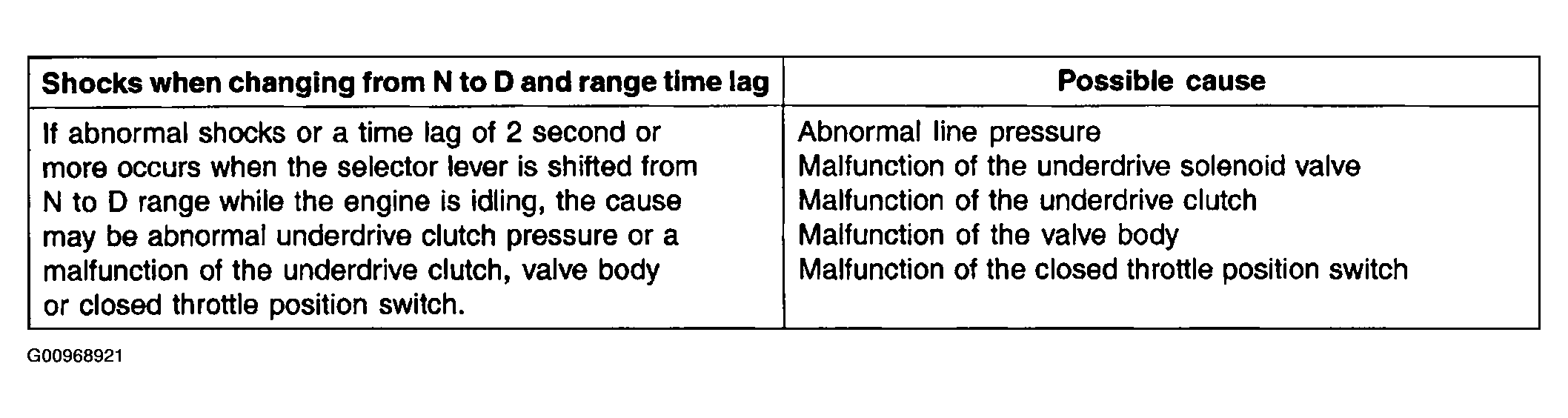

Fig 1: Shocks When Changing From Neutral-To-Drive & Time Lag Possible Causes Table
G00968921Courtesy of HYUNDAI MOTOR CO.

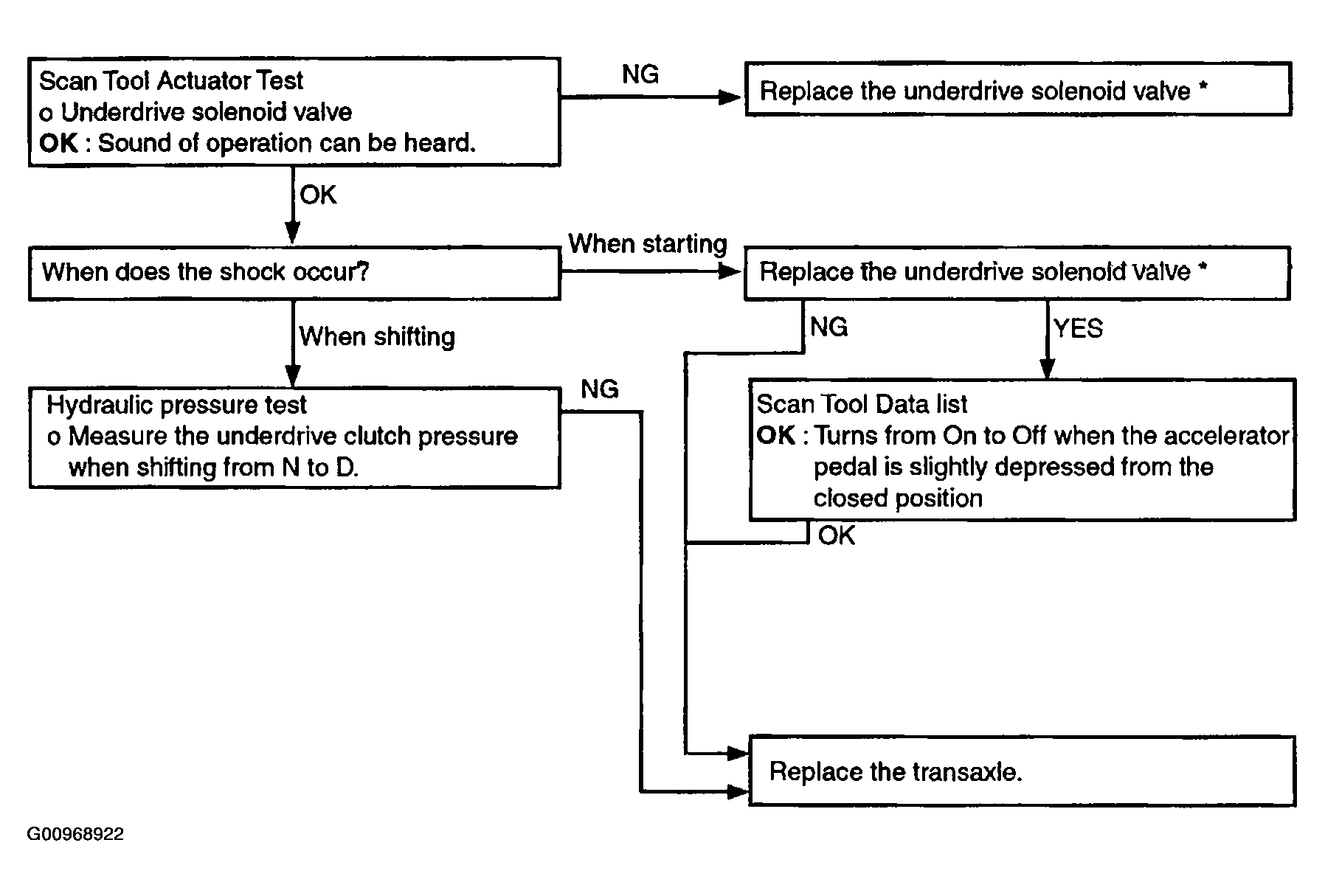

Fig 2: Shocks When Changing From Neutral-To-Drive & Time Lag Diagnostic Flow Chart
G00968922Courtesy of HYUNDAI MOTOR CO.
