Inspection Procedure 8

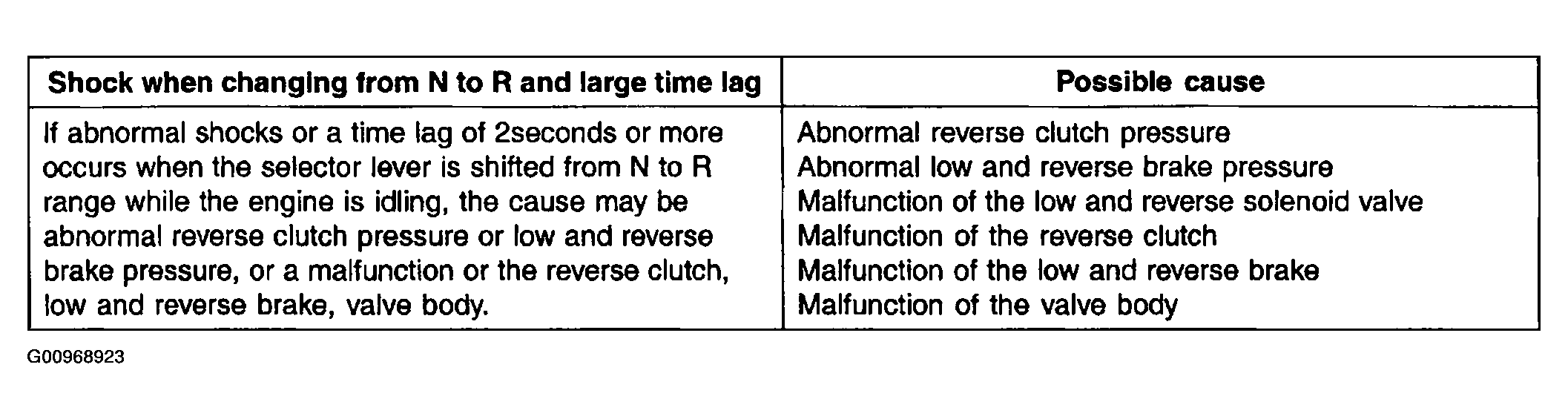

Fig 1: Shocks When Changing From Neutral-To-Reverse & Large Time Lag Possible Causes Table

Courtesy of HYUNDAI MOTOR CO.

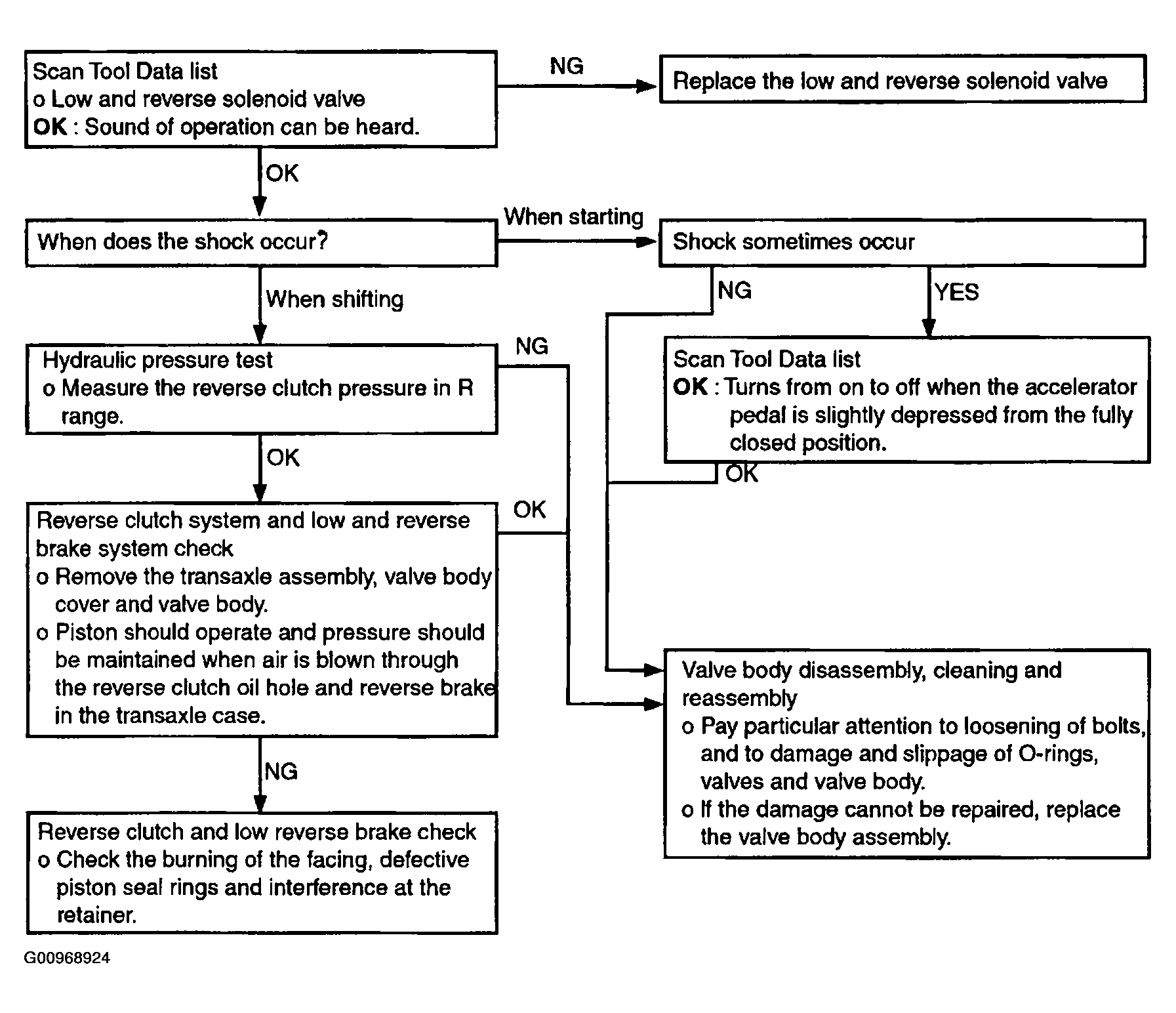

Fig 2: Shocks When Changing From Neutral-To-Reverse & Large Time Lag Diagnostic Flow Chart

Courtesy of HYUNDAI MOTOR CO.
