Removal & Installation
- Remove the battery negative terminal.

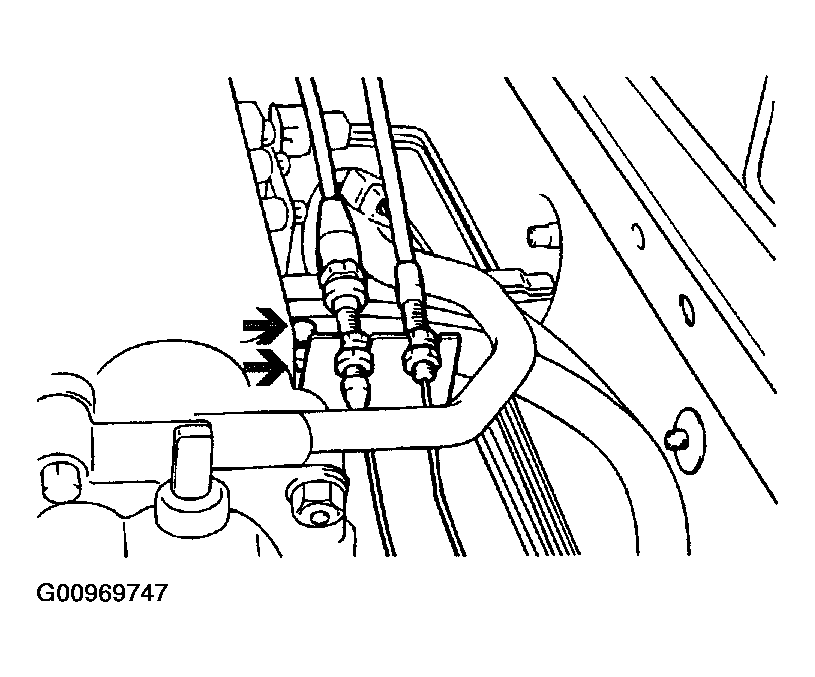

- Disconnect the accelerator cable and cruise control cable from throttle assembly by turning throttle lever to full open position.
- Disconnect the accelerator cable from accelerator pedal connection.
- Remove the accelerator cable mounting bolts.

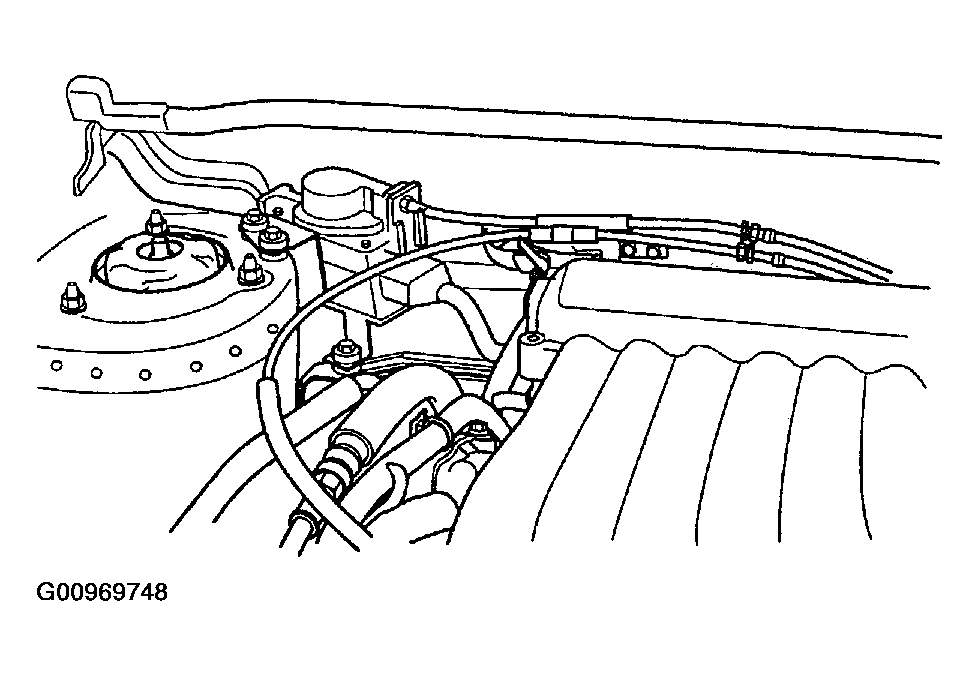

- Remove the actuator and unit assembly mounting bolt.
- Installation is the reverse order of removal.
