FixVault
Home
›
Hyundai
›
2003
›
Tiburon Base, Standard
›
Repair and Diagnosis
›
Accessories & Equipment
›
Cruise Control Systems
›
Cruise Control System
›
System Block Diagram
›
Component Parts & Function Outline
Component Parts & Function Outline

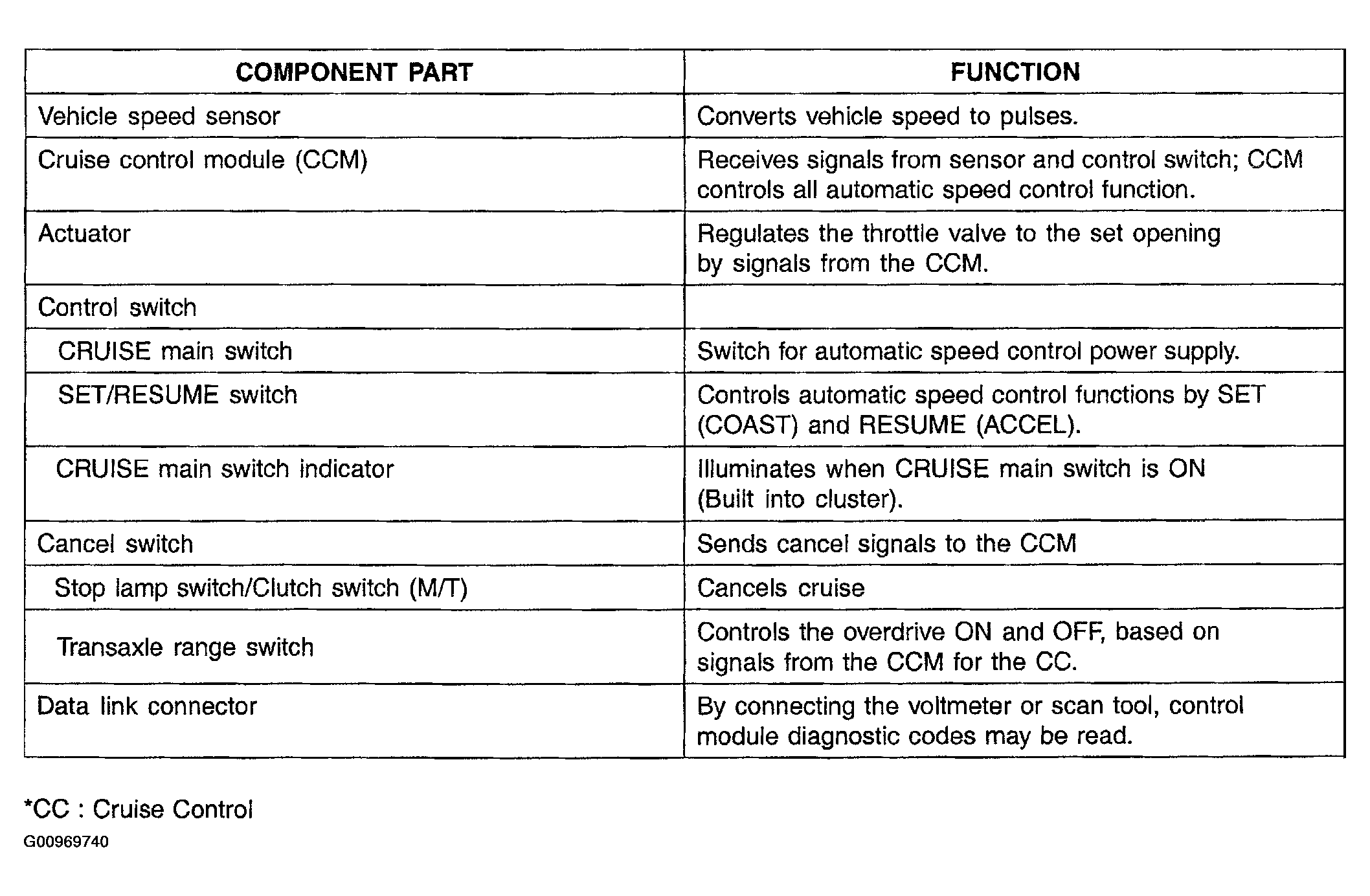

Fig 1: Component Parts & Function Outline Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
