Transmission Mounting

  1. For vehicles with a 5-speed manual transmission, remove the select control valve.
  2. Remove the transmission mounting bolt.

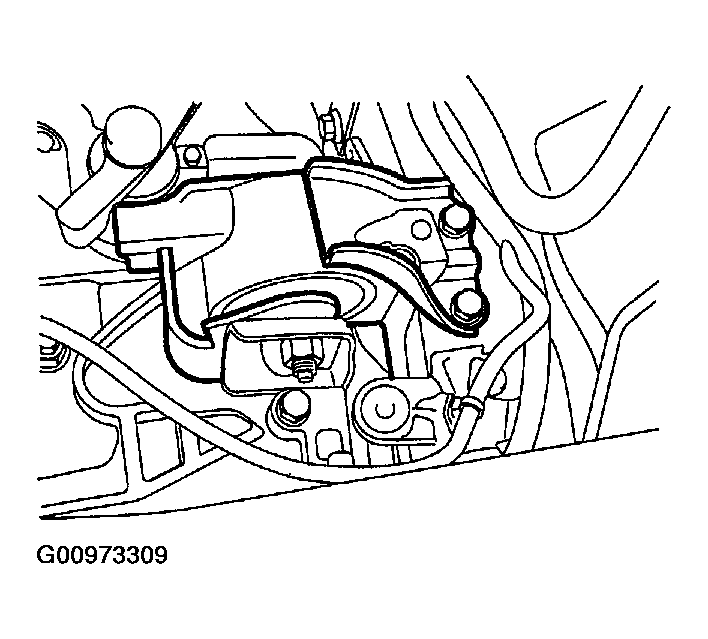

    Fig 1: Identifying Transmission Mount & Mounting Bolt
    G00973309Courtesy of HYUNDAI MOTOR CO.
  3. Detach the cap from inside the right fender shield. Remove the transmission mounting bolts.
  4. Remove the transmission bracket.
    Fig 2: Identifying Transmission Bracket
    G00973310Courtesy of HYUNDAI MOTOR CO.
