Main Moving System: Crankshaft: Notes

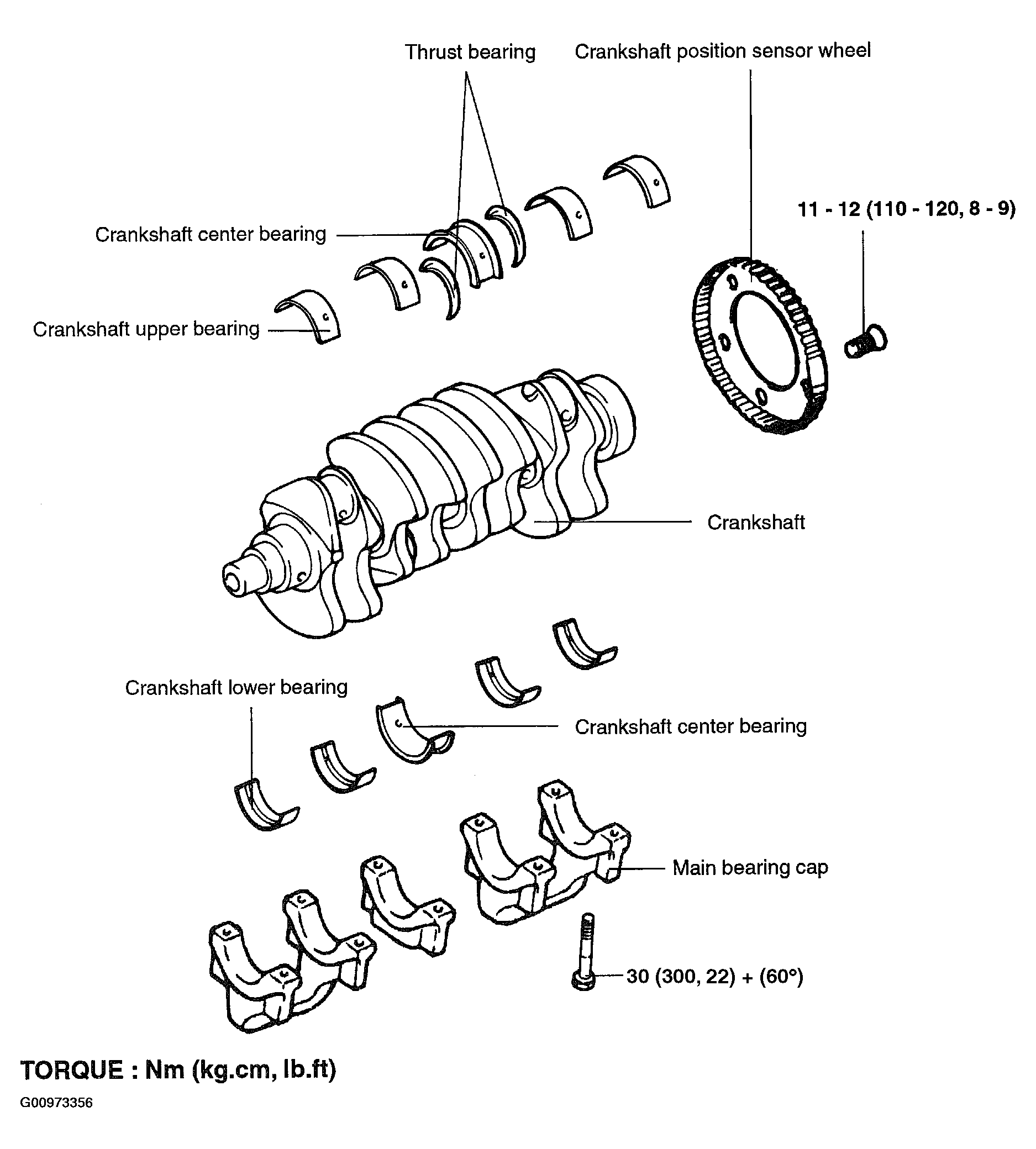

Fig 1: Crankshaft Components
G00973356Courtesy of HYUNDAI MOTOR CO.
