Strut Assembly: Removal

Remove the front wheel.
Detach the brake hose bracket from the strut assembly.
NOTE: Do not apply excessive force to the components.
Remove the stabilizer link.

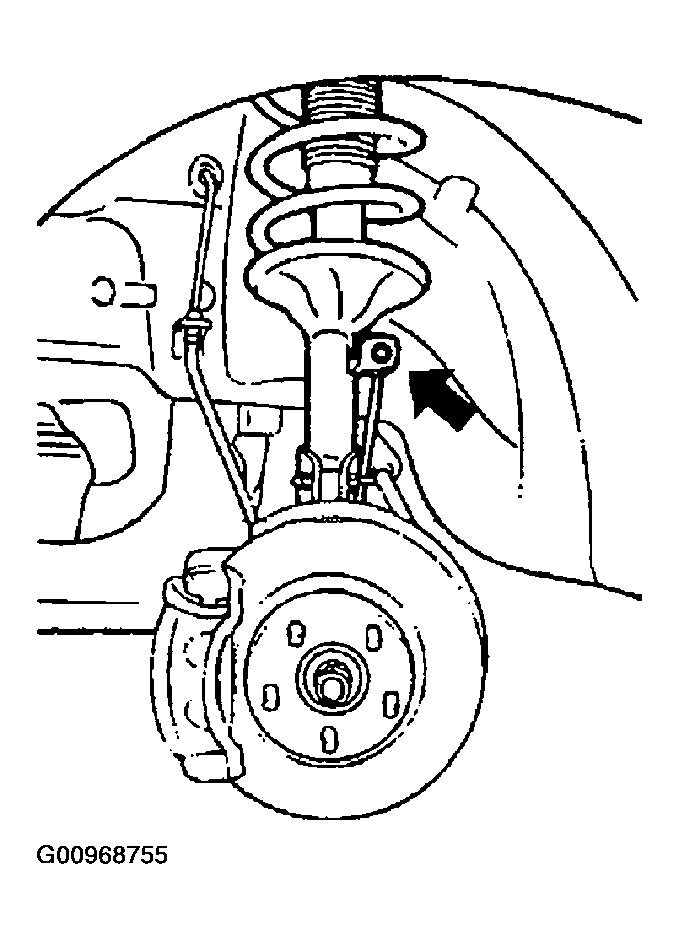

Fig 1: Identifying Stabilizer Link
Courtesy of HYUNDAI MOTOR CO.
Remove the strut upper mounting bolts (3).

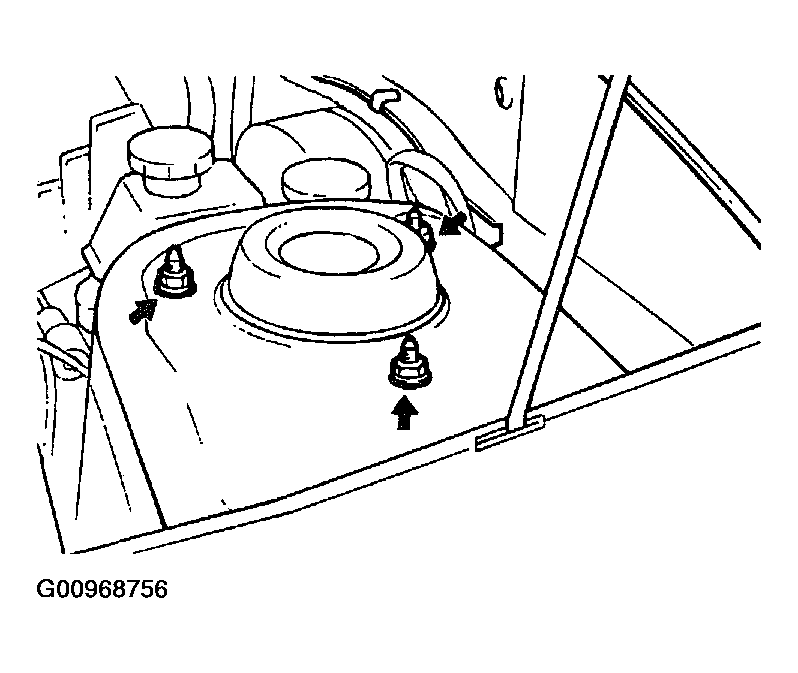

Fig 2: Identifying Strut Upper Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the strut assembly.

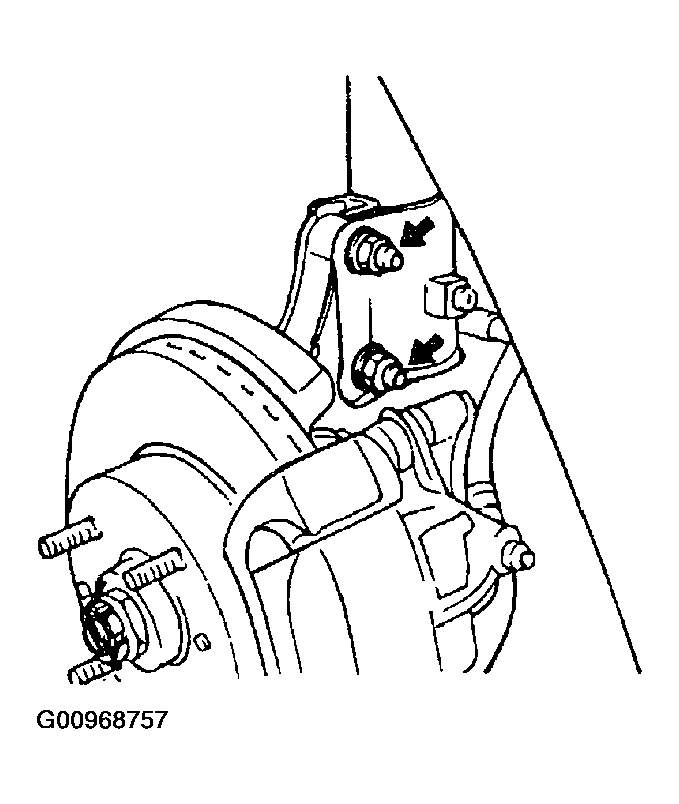

Fig 3: Identifying Strut Lower Bolts
Courtesy of HYUNDAI MOTOR CO.
