Special Tools

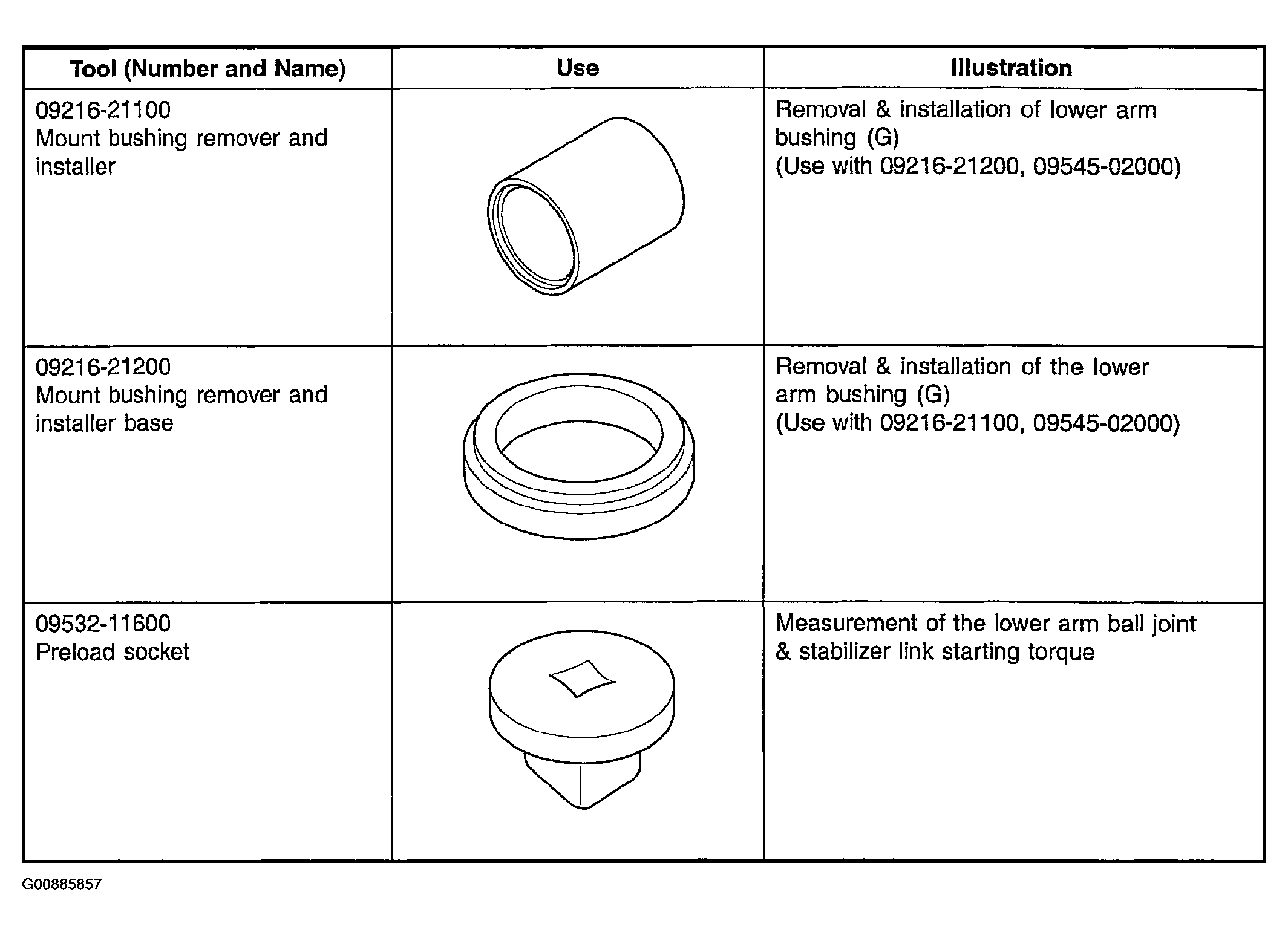

Fig 1: Identifying Special Tools (1 Of 3)
G00885857Courtesy of HYUNDAI MOTOR CO.

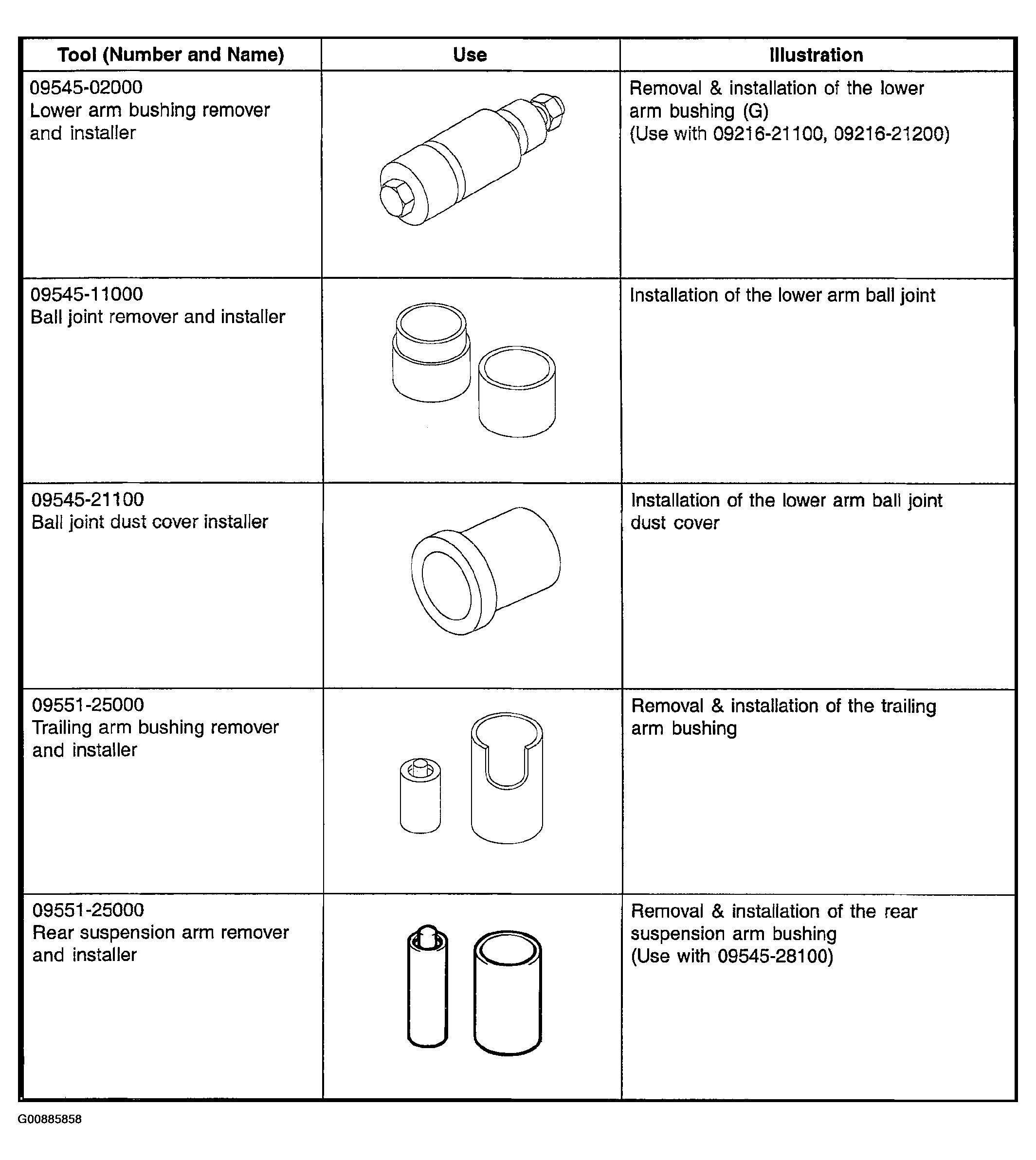

Fig 2: Identifying Special Tools (2 Of 3)
G00885858Courtesy of HYUNDAI MOTOR CO.

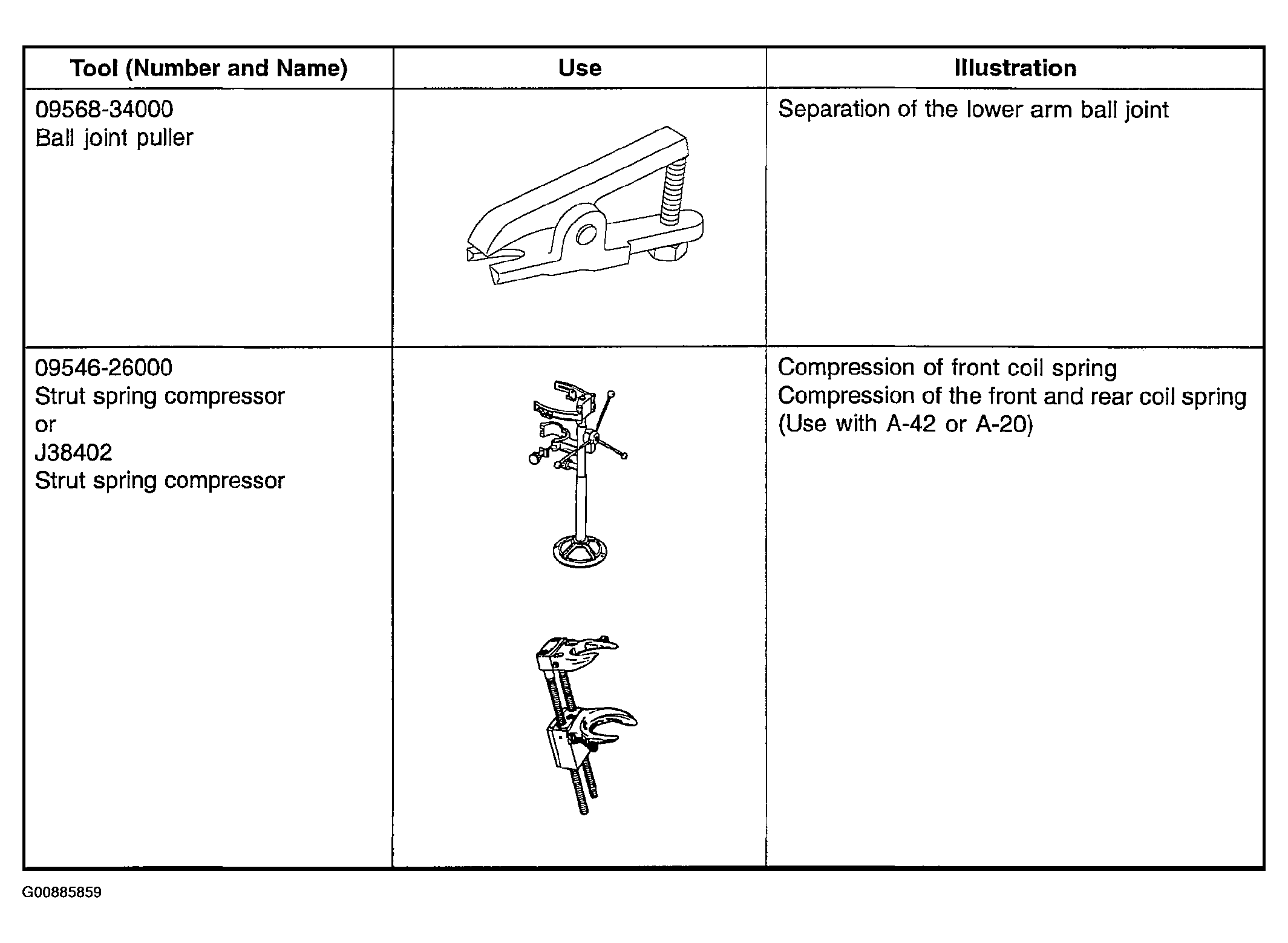

Fig 3: Identifying Special Tools (3 Of 3)
G00885859Courtesy of HYUNDAI MOTOR CO.
