Manual Transaxles: General: Spacer

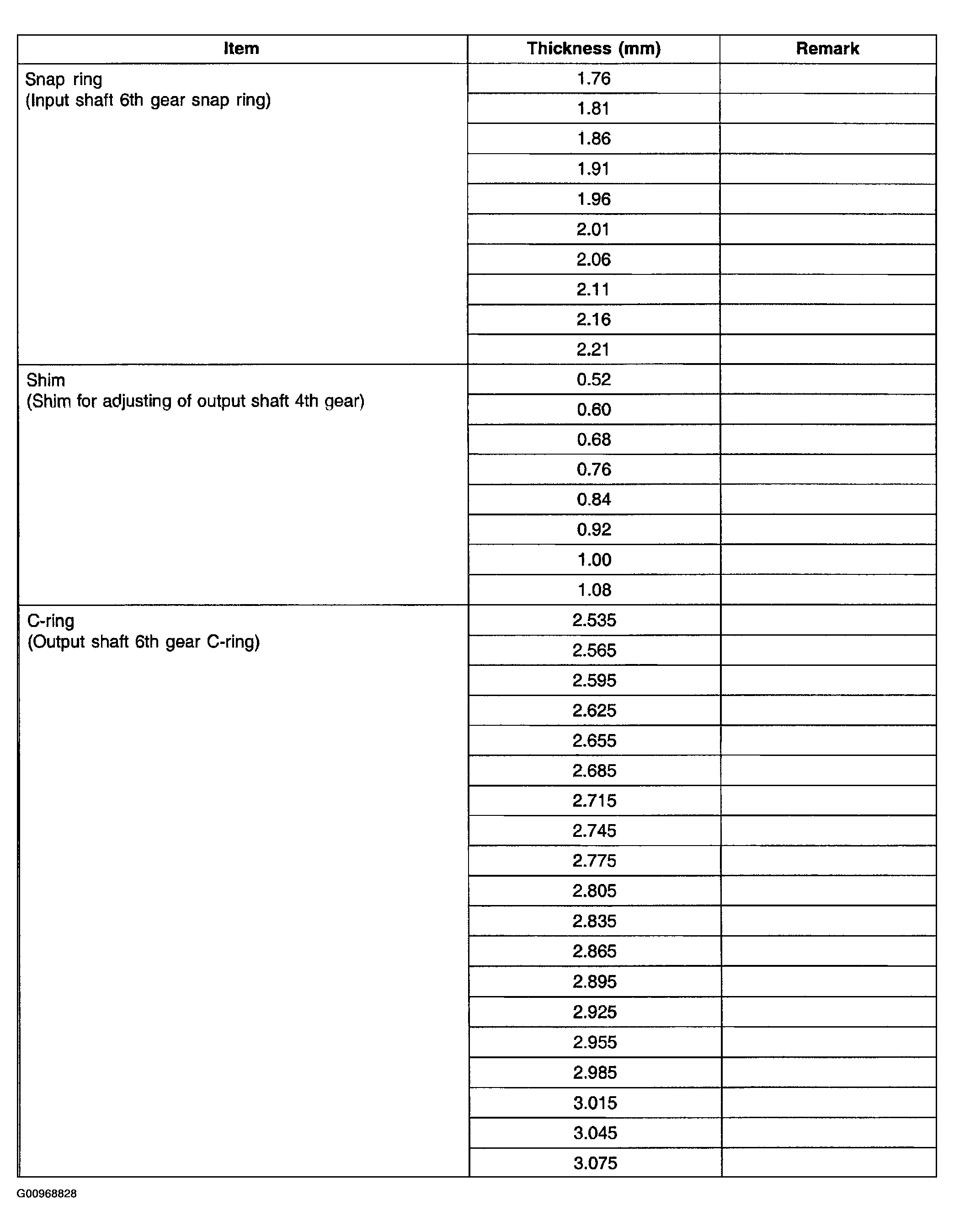

Fig 1: Spacer Specification Table (1 Of 3)

Courtesy of HYUNDAI MOTOR CO.

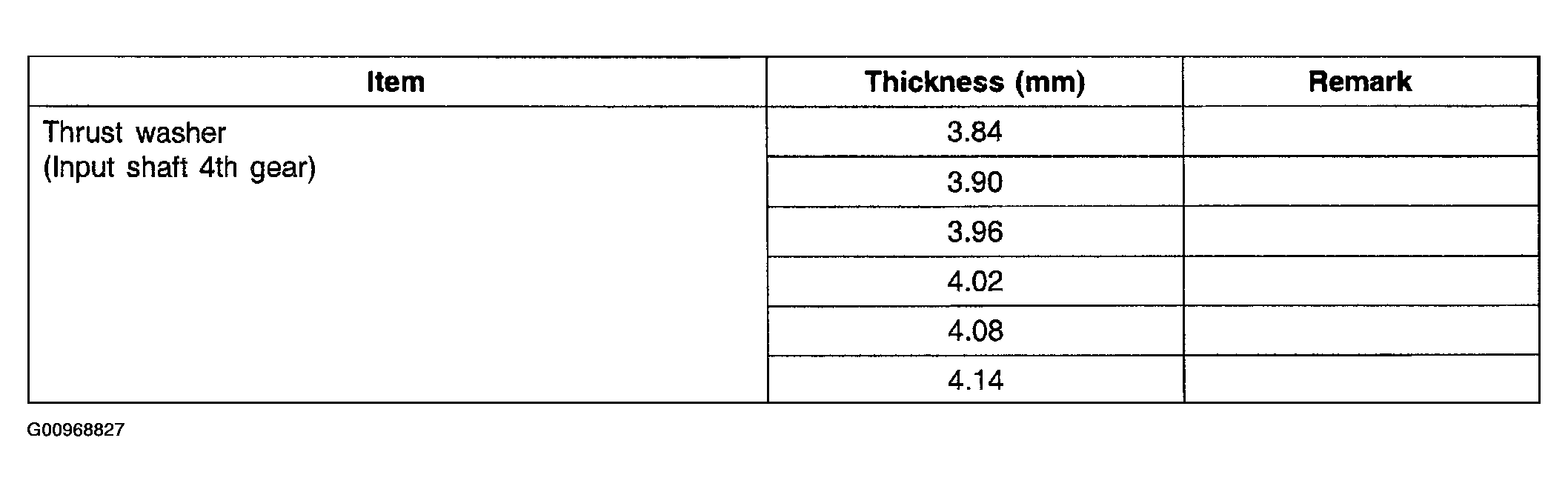

Fig 2: Spacer Specification Table (2 Of 3)

Courtesy of HYUNDAI MOTOR CO.

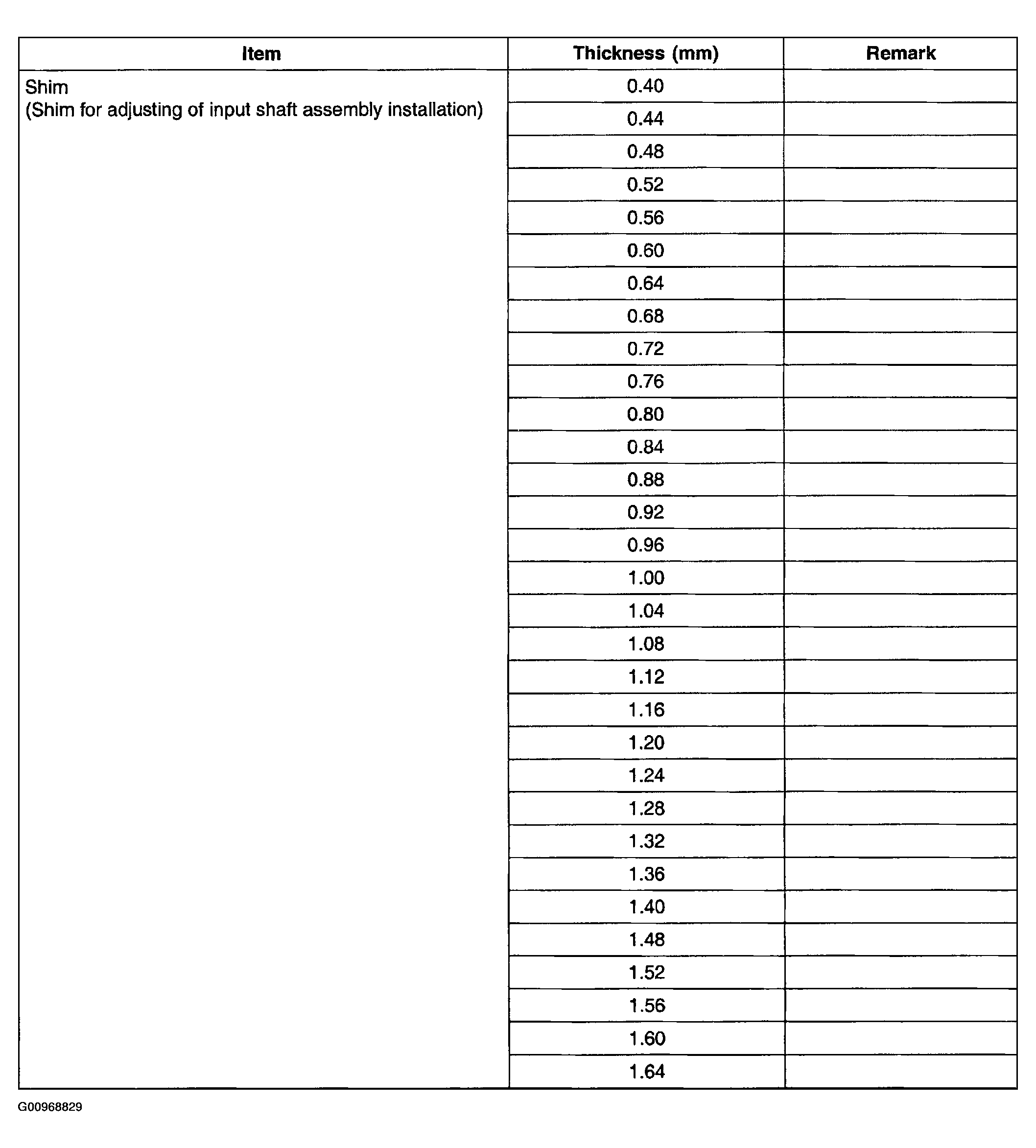

Fig 3: Spacer Specification Table (3 Of 3)

Courtesy of HYUNDAI MOTOR CO.
