Manual Transaxles: Overhaul: Differential: Component

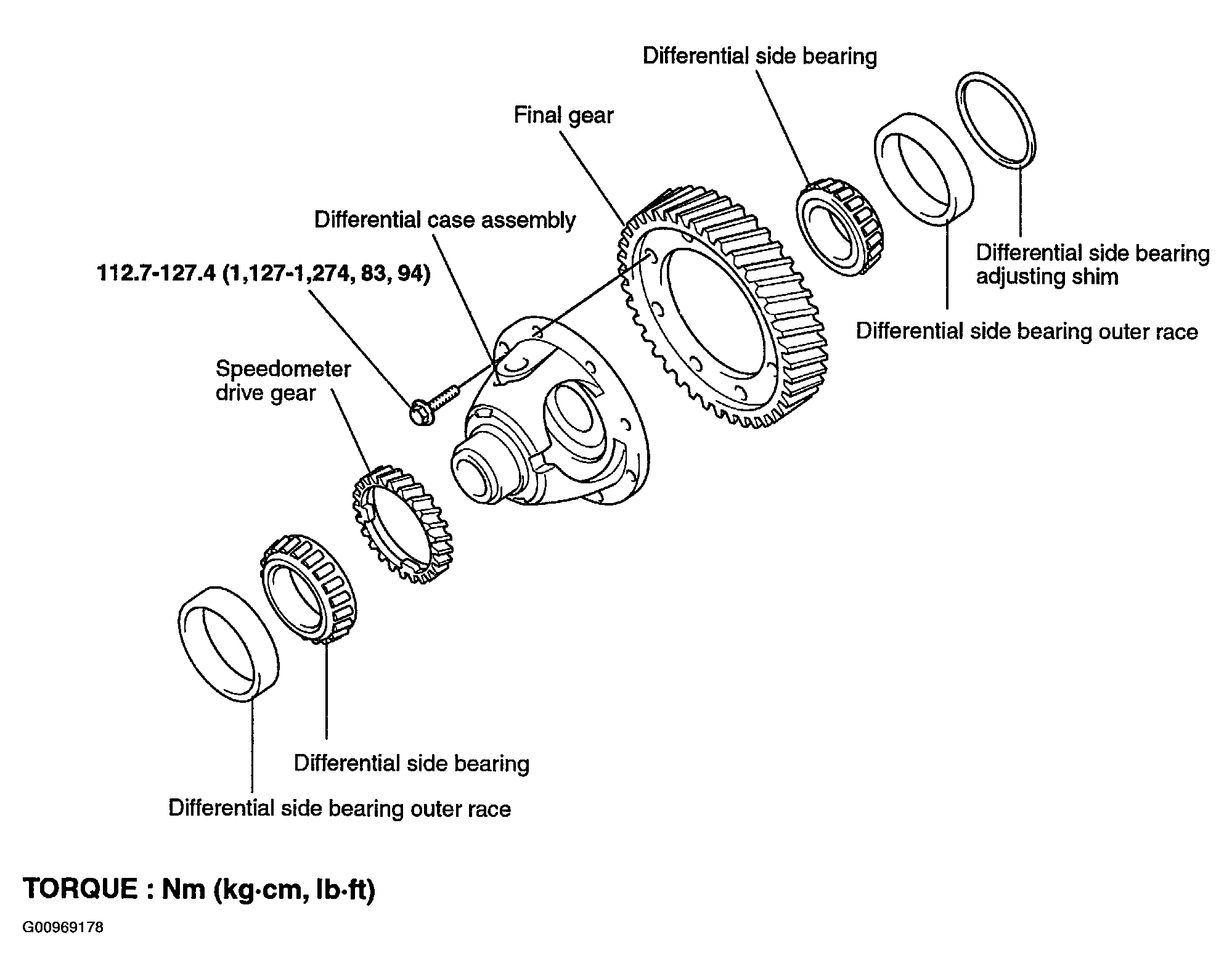

Fig 1: Differential Component
G00969178Courtesy of HYUNDAI MOTOR CO.
