Manual Transaxle Case: Components

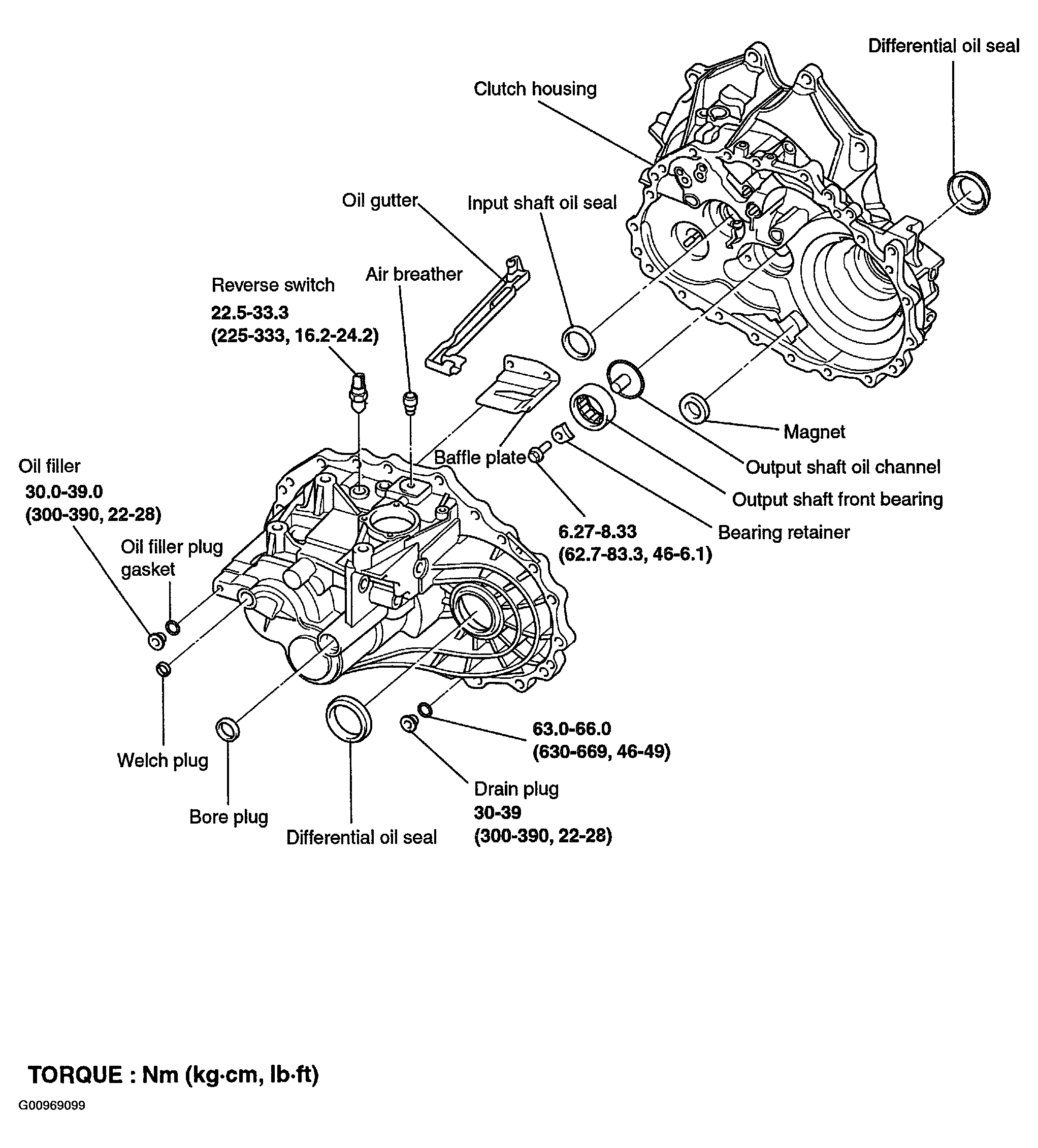

Fig 1: Manual Transaxle Case Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
