Ignition Switch: Inspection: Notes

  1. Separate the connector located under the steering column.
  2. Inspect the switch continuity between the terminals.
  3. If continuity is not as specified, replace the switch.

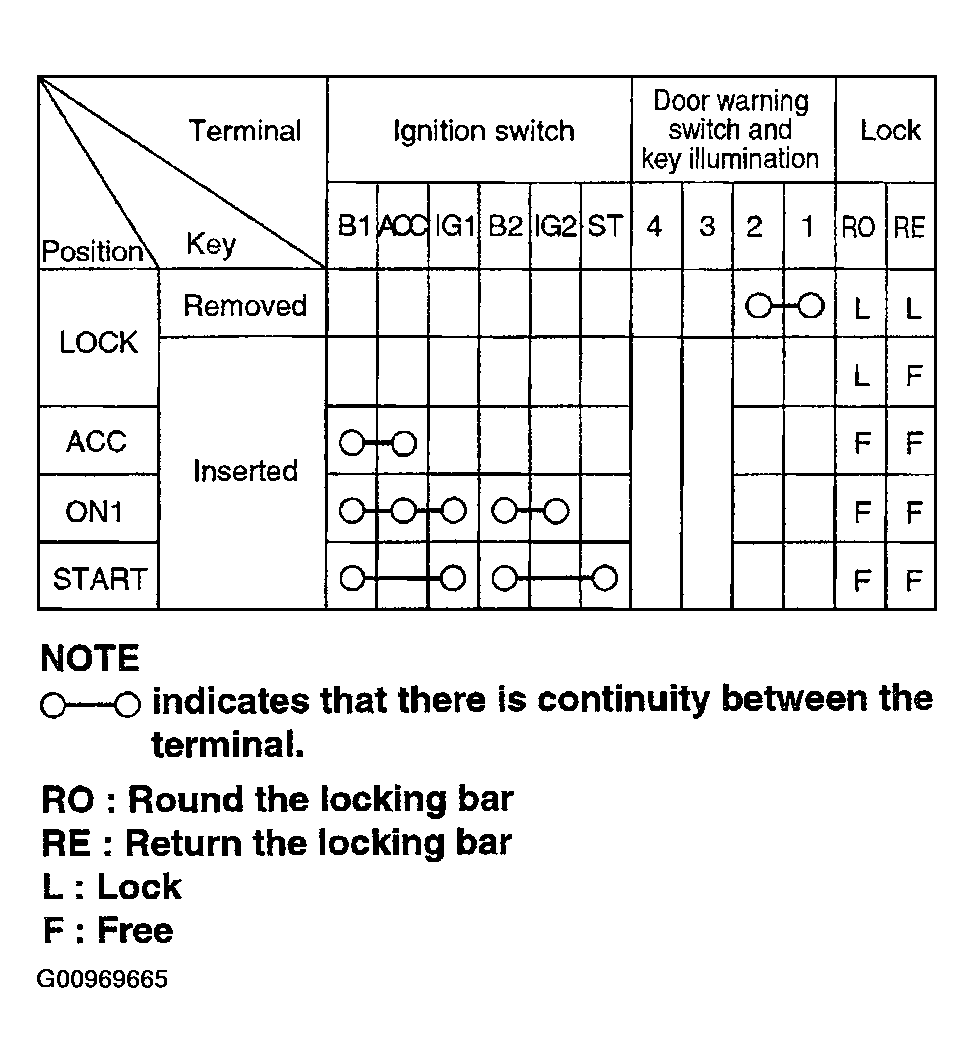

    Fig 1: Ignition Switch Continuity Table
    G00969665Courtesy of HYUNDAI MOTOR CO.

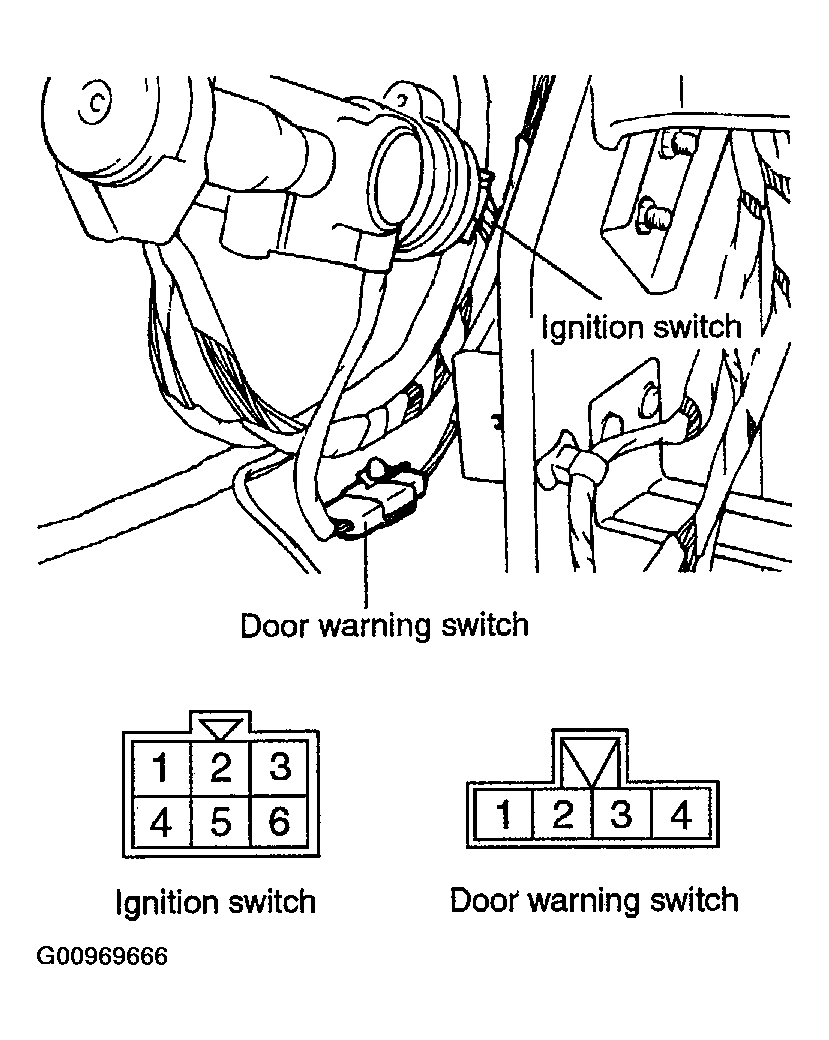

    Fig 2: Ignition Switch & Door Warning Switch Connectors & Terminals
    G00969666Courtesy of HYUNDAI MOTOR CO.
