Inspection Procedure 11

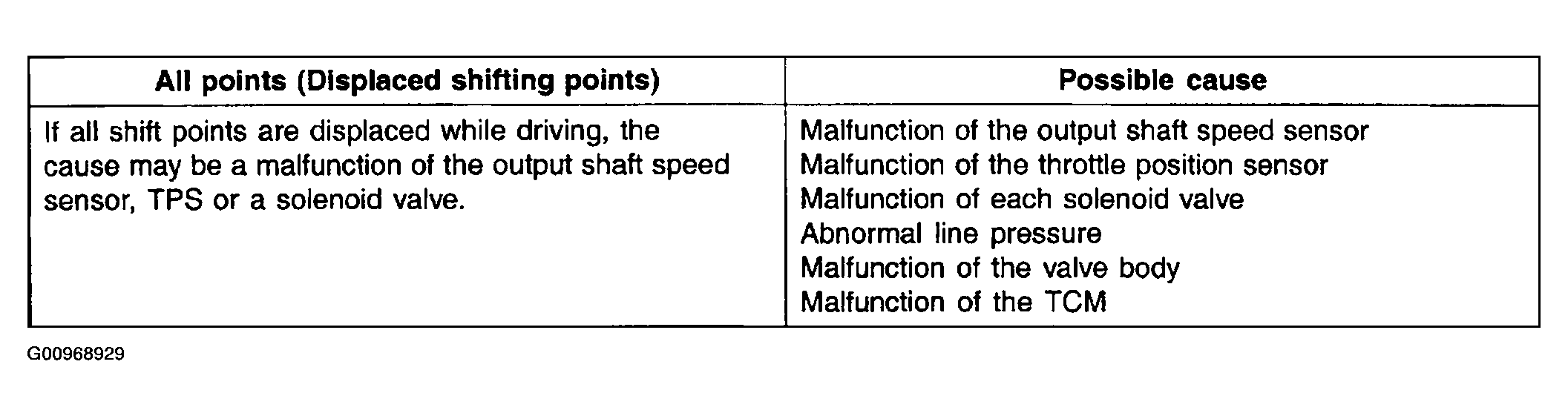

Fig 1: All Points (Displaced Shifting Points) Possible Causes Table
G00968929Courtesy of HYUNDAI MOTOR CO.

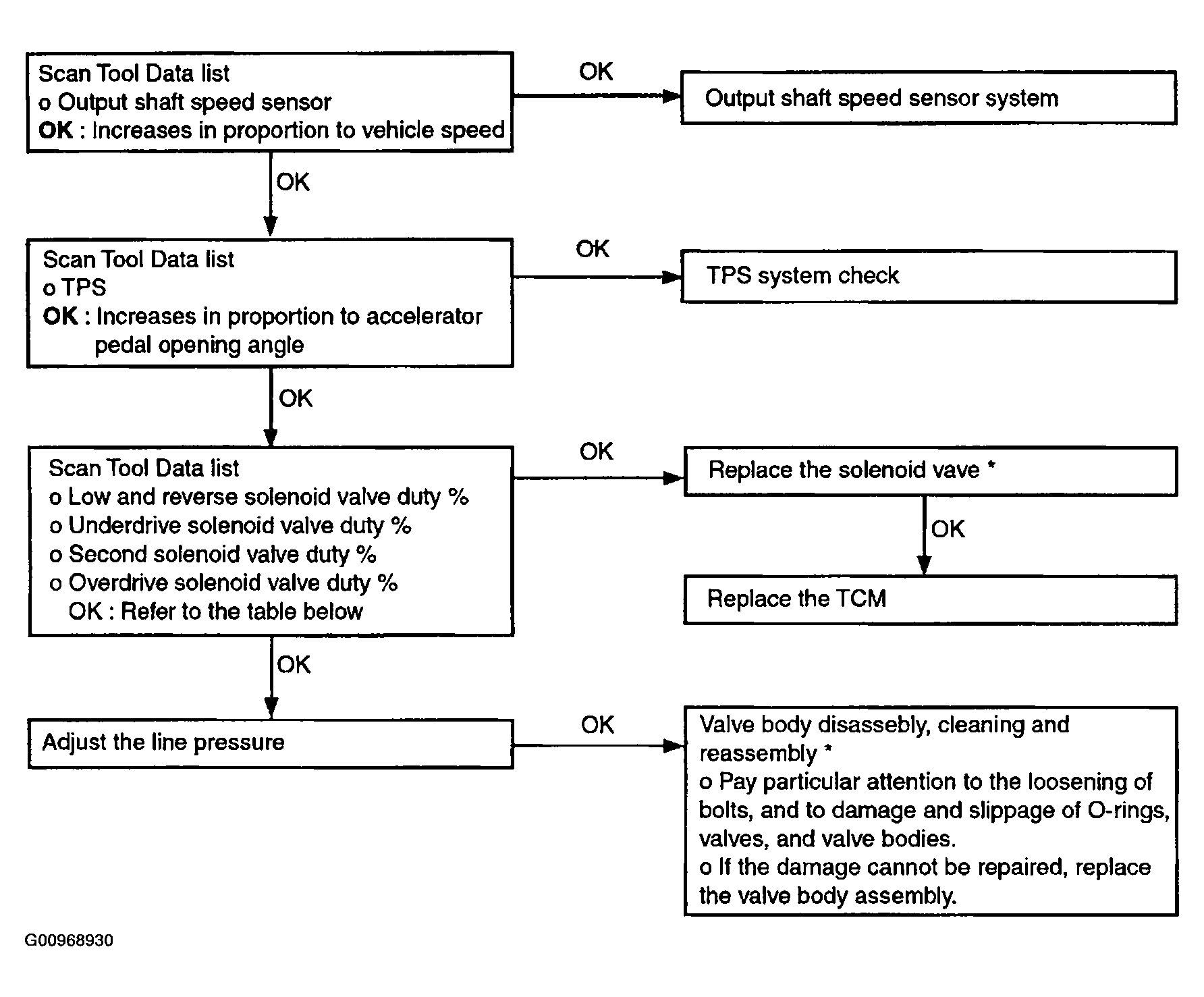

Fig 2: All Points (Displaced Shifting Points) Diagnostic Flow Chart
G00968930Courtesy of HYUNDAI MOTOR CO.
