Home › Hyundai › 2003 › XG350 Base › Repair and Diagnosis (Single Page) › Body & Frame › Door Locks › Electronic Time & Alarm Control System › ETACS Module Input Signal Test

ETACS Module Input Signal Test

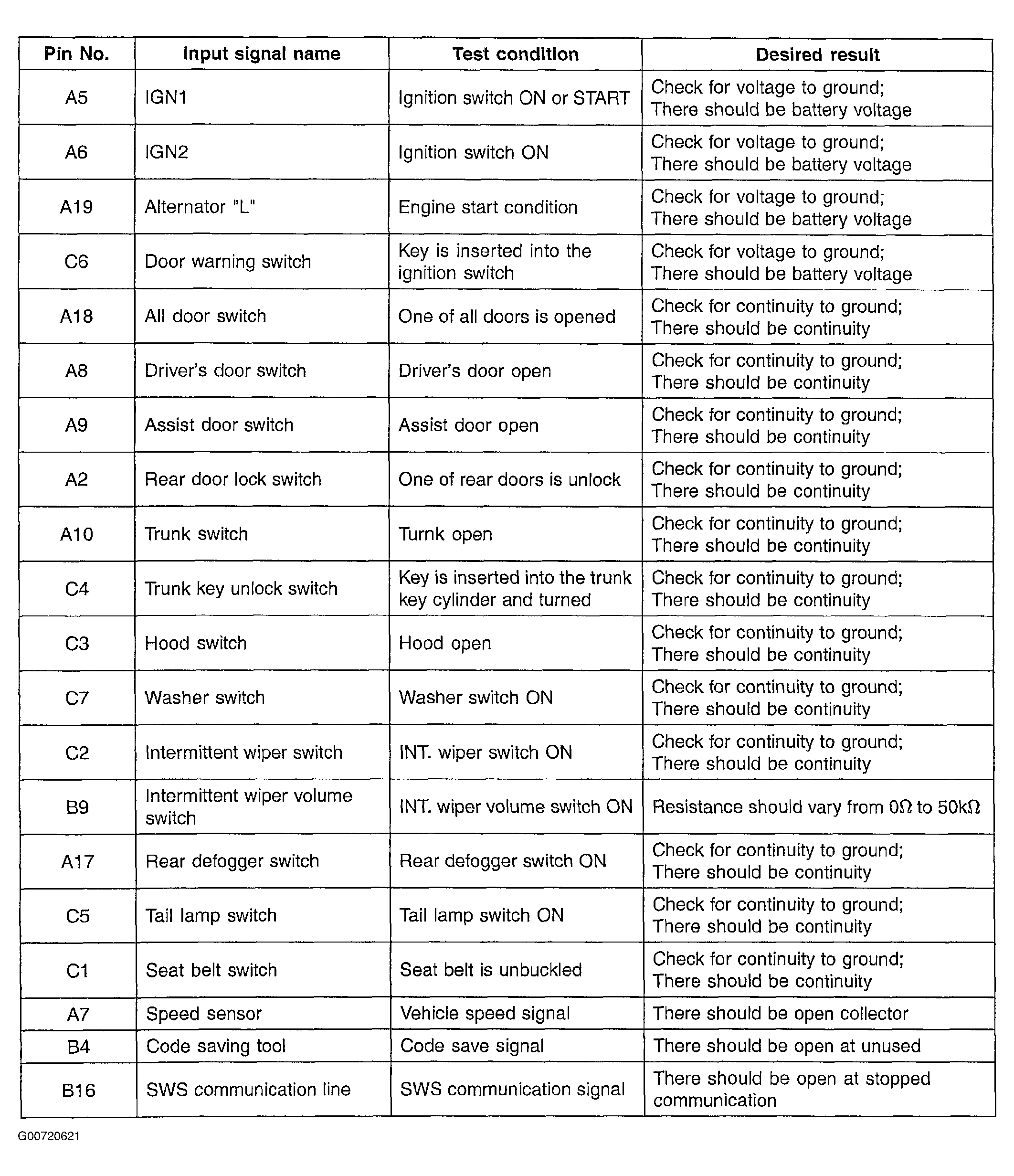

Fig 1: ETACS Module Input Signal Test Table
G00720621Courtesy of HYUNDAI MOTOR CO.
