Diagnosis Of Immobilizer Related Faults
Diagnosis Of Immobilizer Related Faults

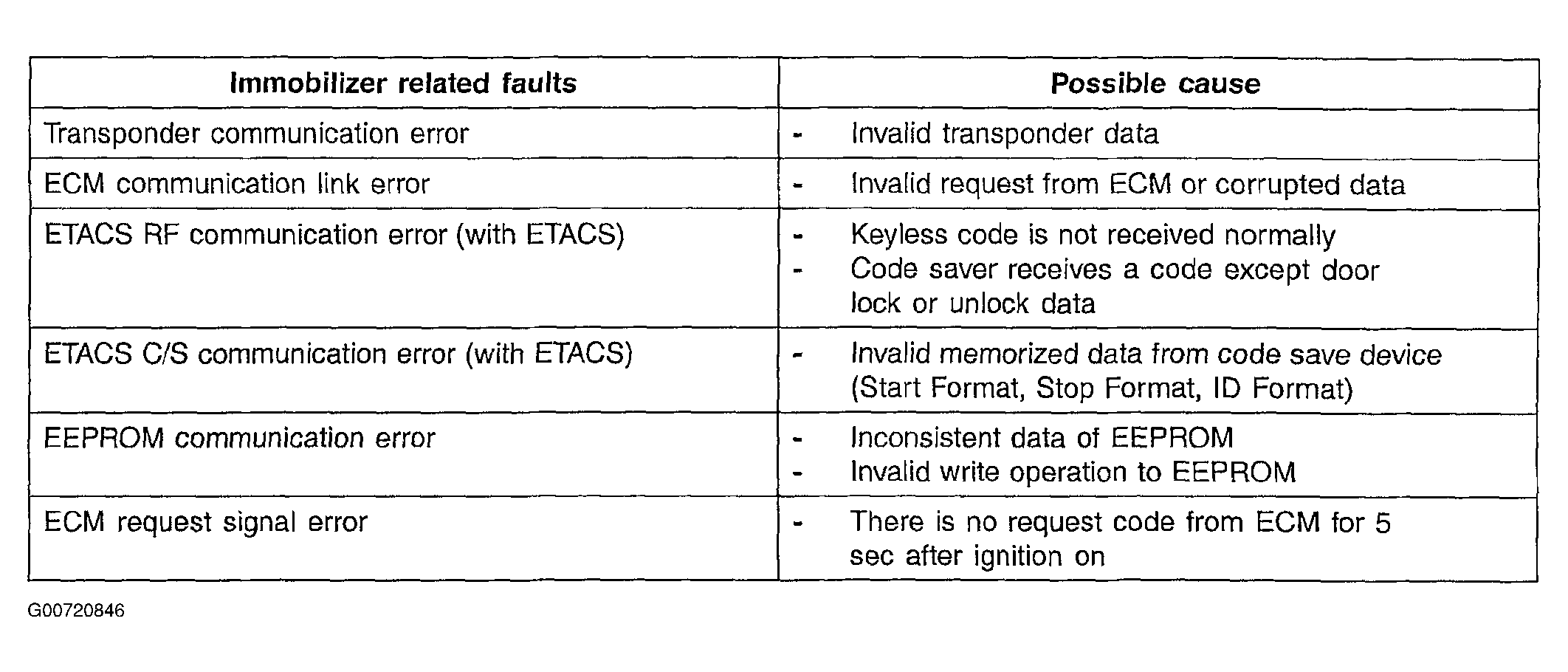

Fig 1: Immobilizer Related Faults Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
