IMS (Integrated Memory System)
›
Pin Connection
›
[M110-3]
Pin Connection: [M110-3]

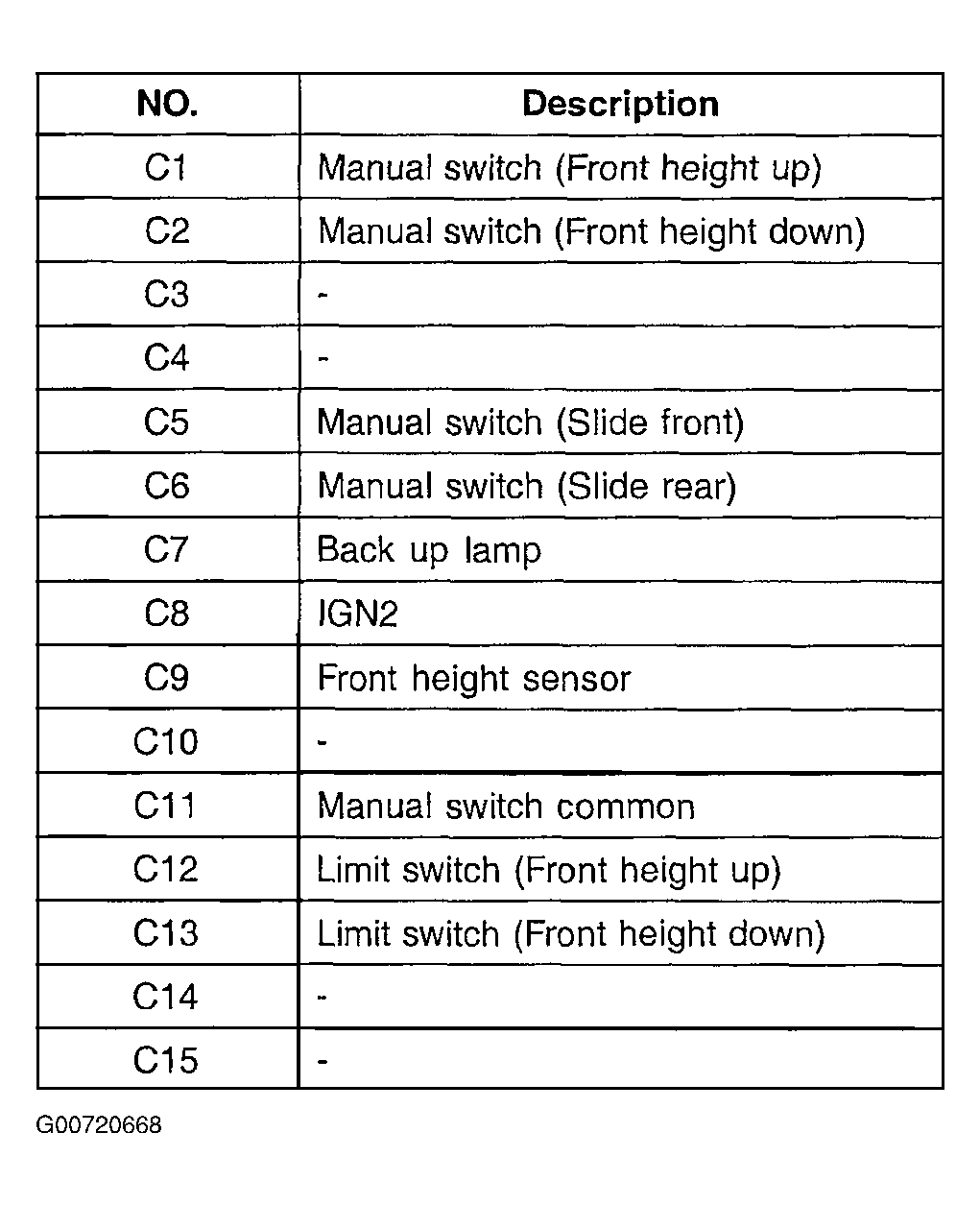

Fig 1: IMS Connector M110-3 Identification Chart (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Fig 2: IMS Connector M110-3 Identification Chart (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
