Pin Connection: [M110-4]

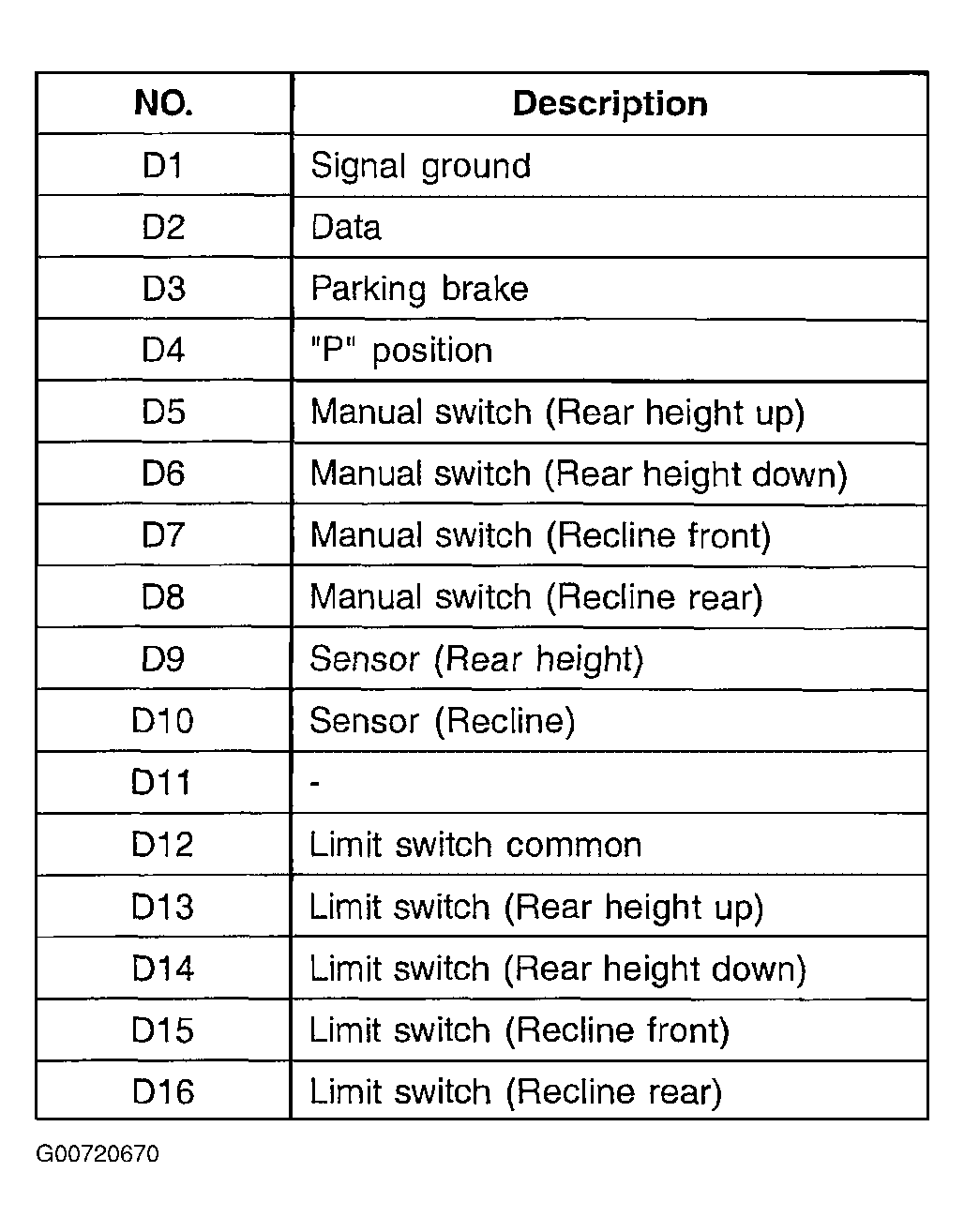

Fig 1: IMS Connector M110-4 Identification Chart
G00720670Courtesy of HYUNDAI MOTOR CO.
