Anti-Lock Braking System Control Module: Components

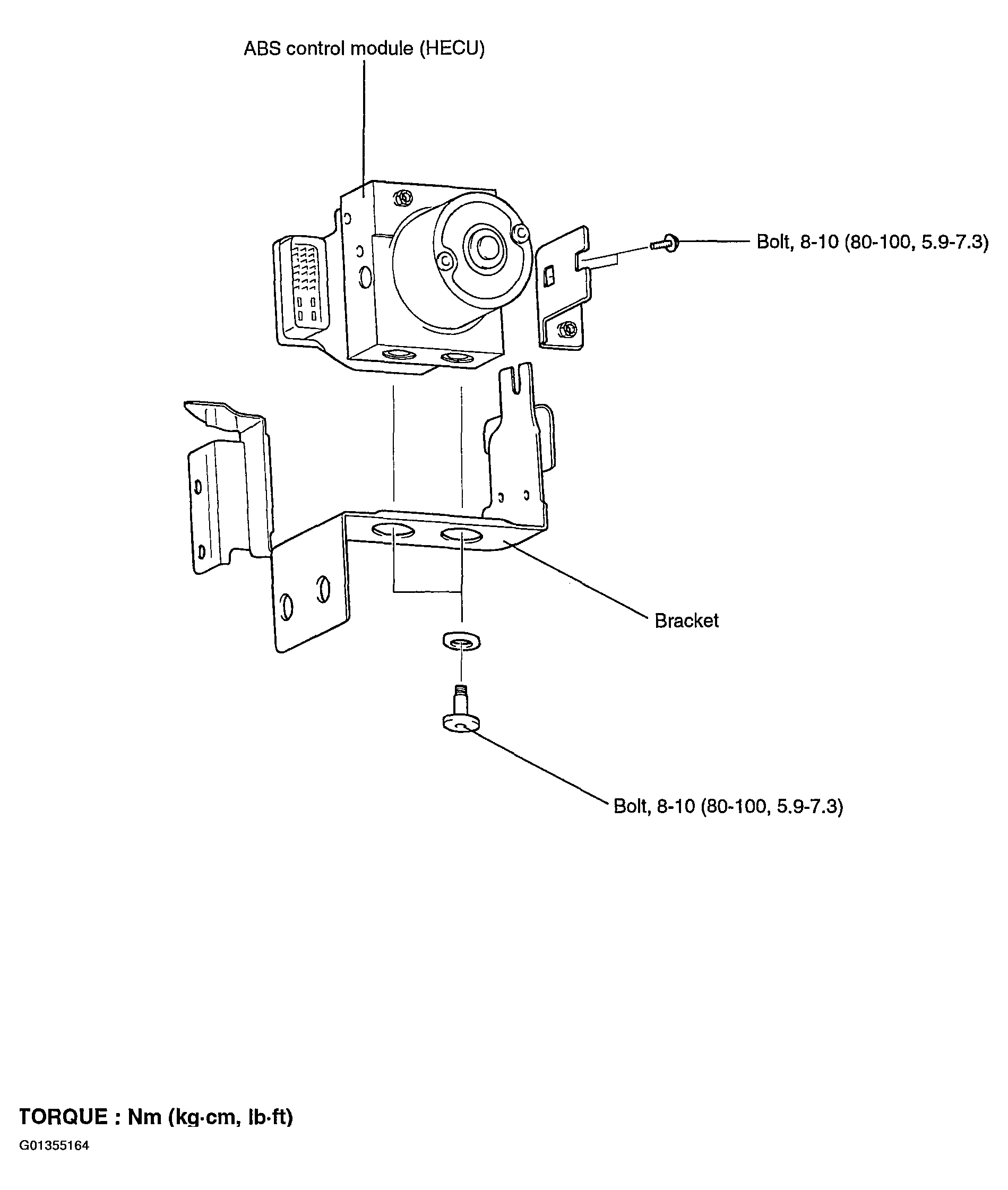

Fig 1: Anti-Lock Braking System Control Module Components
G01355164Courtesy of HYUNDAI MOTOR CO.
