Inspection At HECU Terminals
Fig 1: Identifying HECU Wiring Harness Side Connector Terminals
Courtesy of HYUNDAI MOTOR CO.

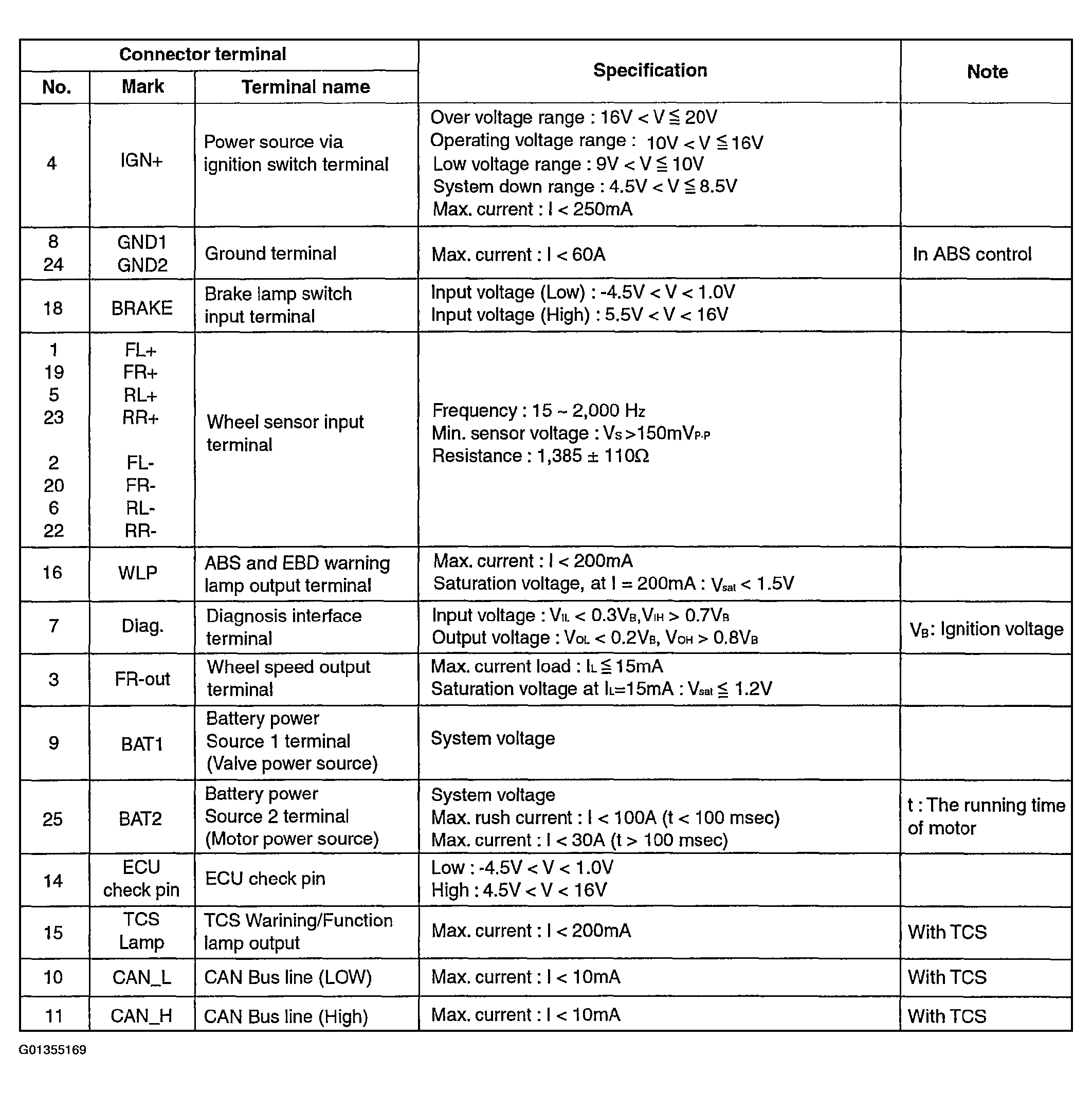

Fig 2: Identifying HECU Wiring Harness Side Connector Terminals & Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
