Front Wheel Speed Sensor

  1. Remove the front wheel speed sensor mounting bolt.

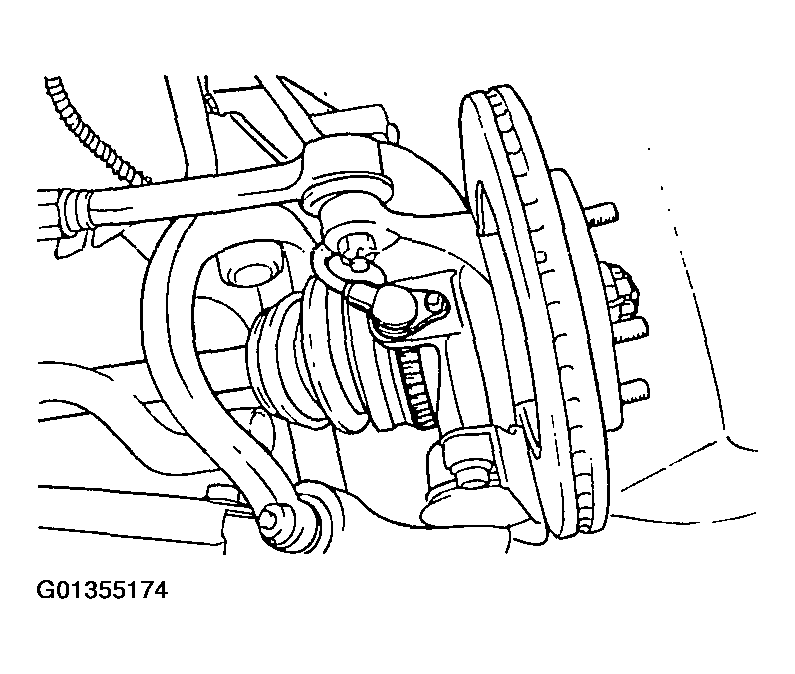

    Fig 1: Identifying Front Wheel Speed Sensor
    G01355174Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector.

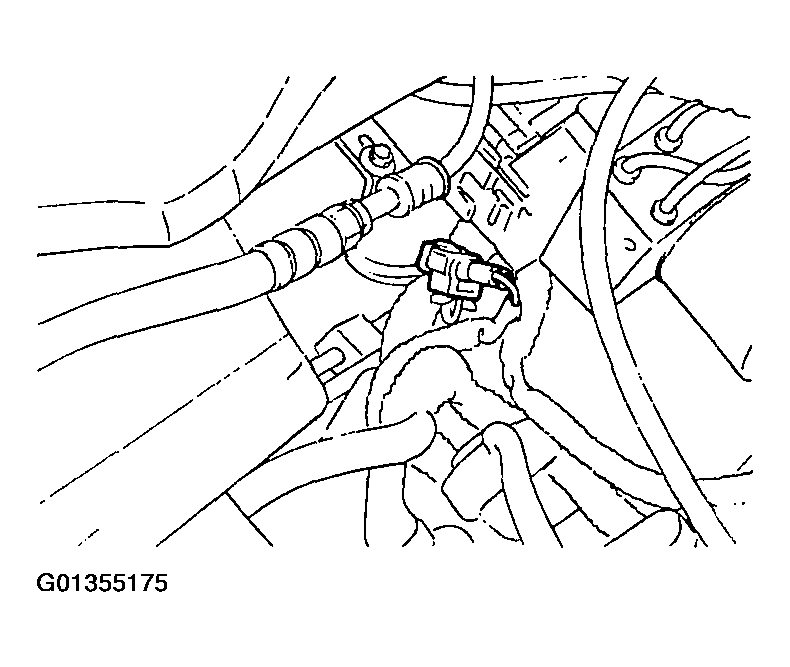

Fig 2: Identifying Front Wheel Speed Sensor Connector
G01355175Courtesy of HYUNDAI MOTOR CO.
