General Brake System Troubleshooting

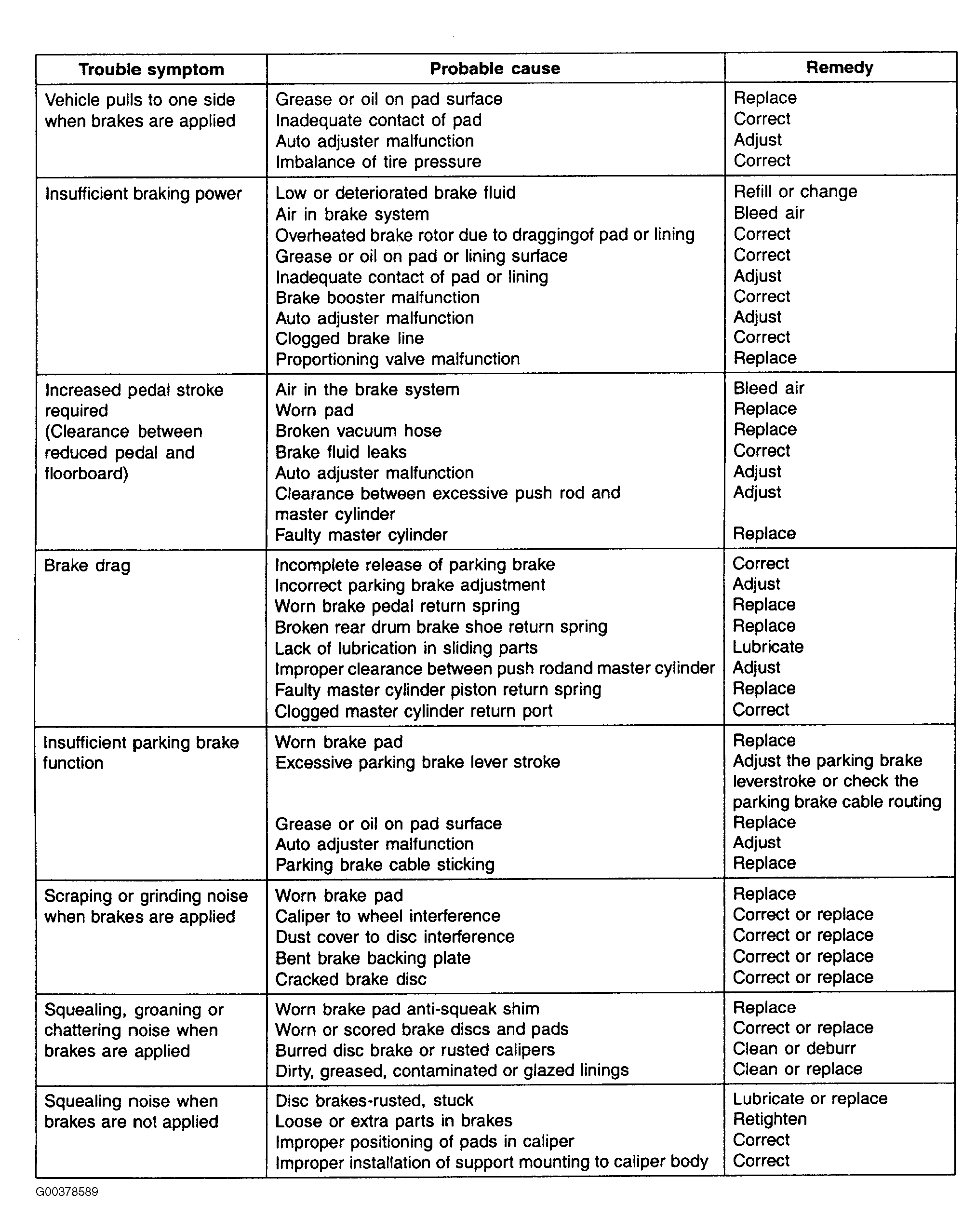

Fig 1: Troubleshooting Symptom Chart (1 Of 2)
G00378589Courtesy of HYUNDAI MOTOR CO.

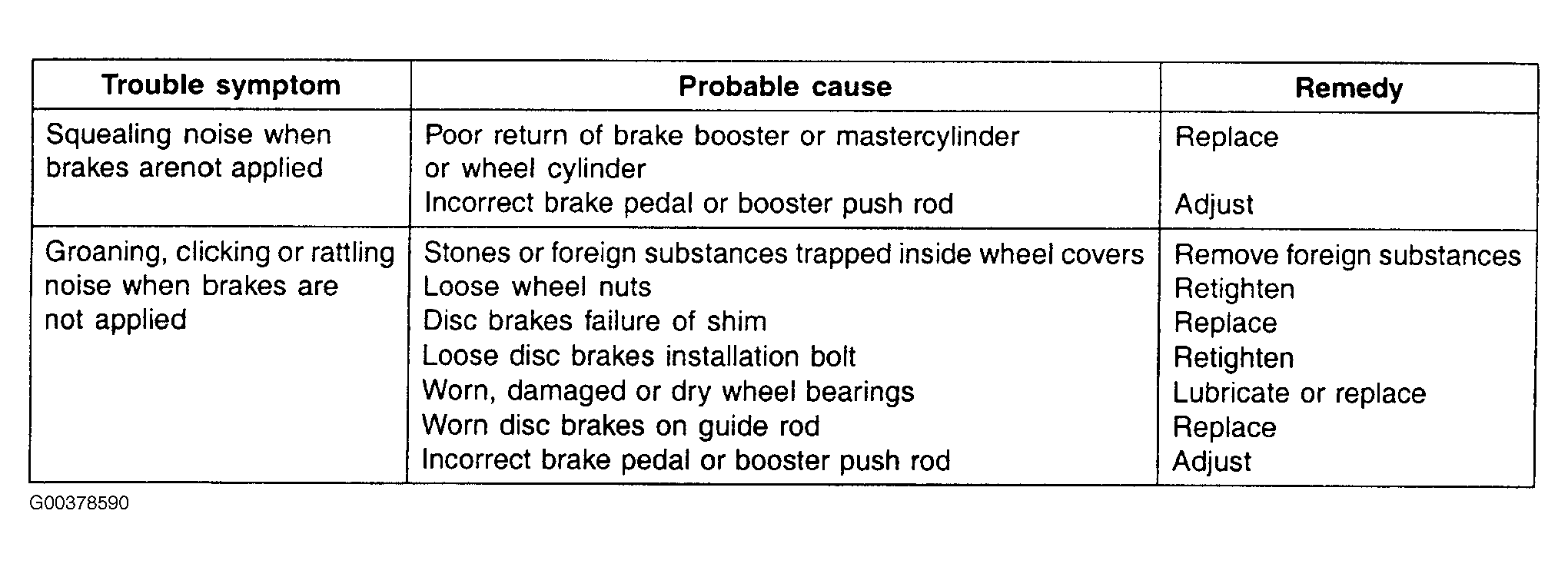

Fig 2: Troubleshooting Symptom Chart (2 Of 2)
G00378590Courtesy of HYUNDAI MOTOR CO.
