Homelink/Electrochromatic Connector End View
Homelink/Electrochromatic Connector End View

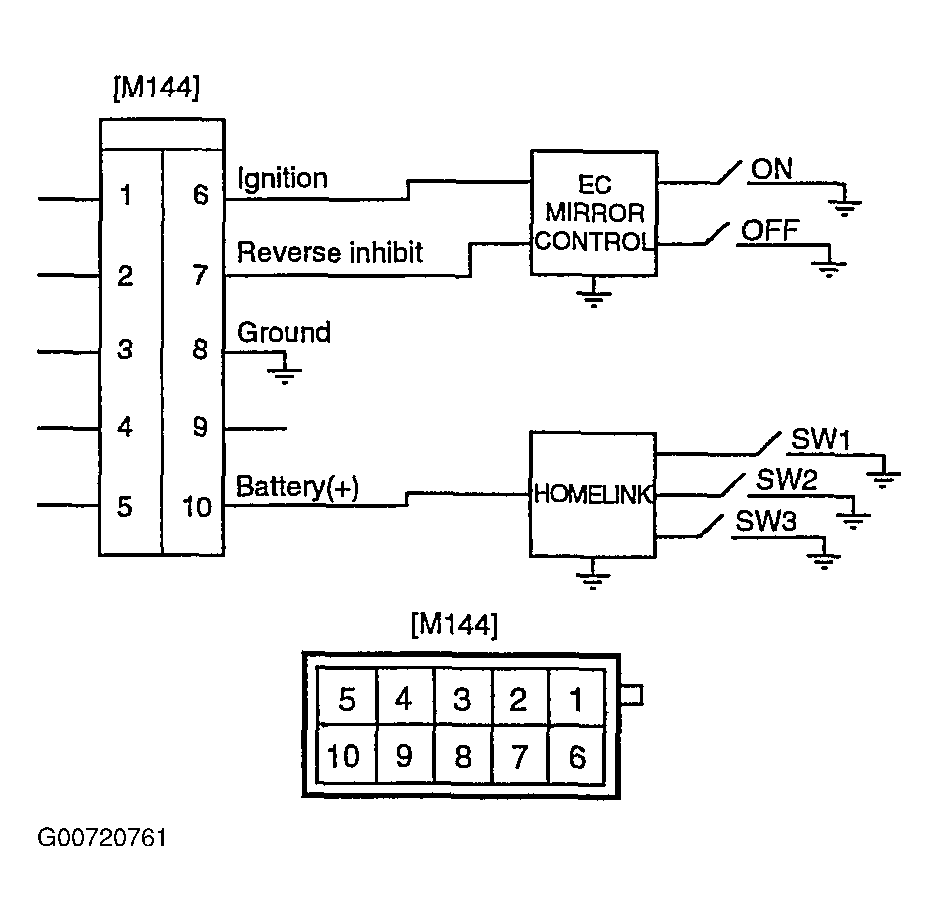

Fig 1: Homelink/Electrochromatic Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
