Engine Compartment Junction Box

NOTE: Engine compartment junction box is located on driver's side of engine compartment, next to battery. See Fig 1 .

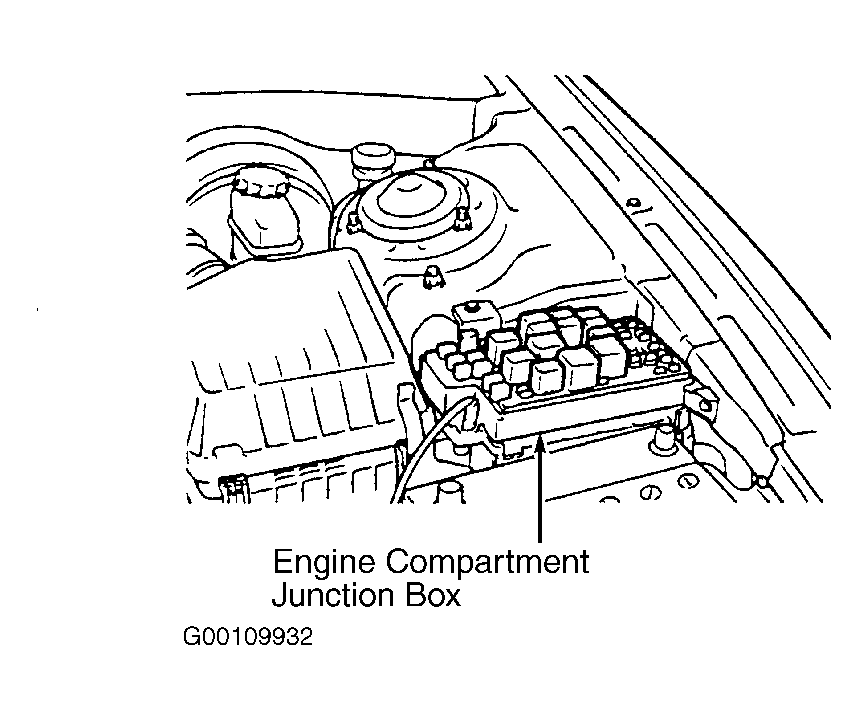

Fig 1: Locating Engine Compartment Junction Box

Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying Engine Compartment Junction Box Components (2002)

Courtesy of HYUNDAI MOTOR CO.

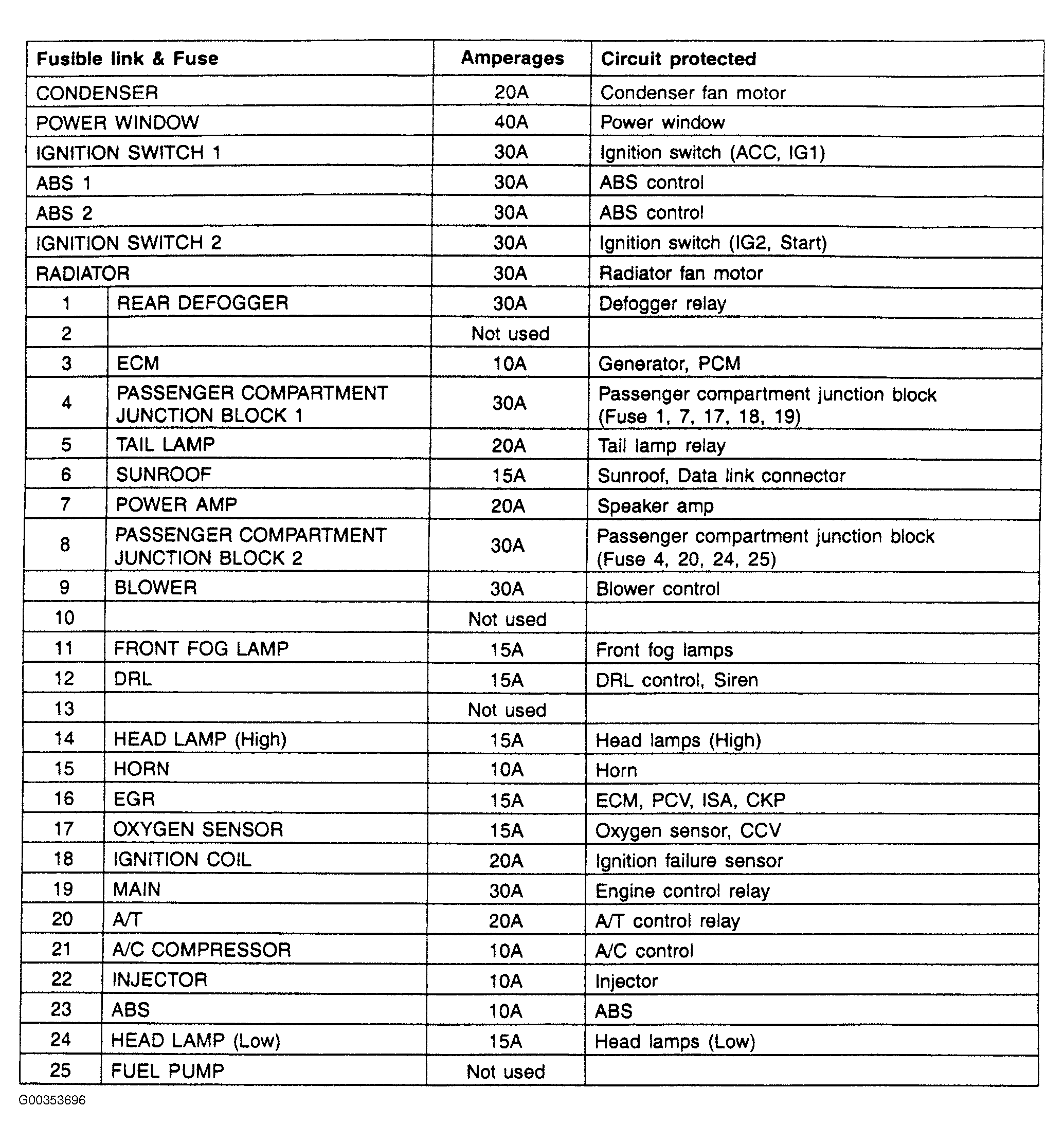

Fig 3: Engine Compartment Junction Box Legend (2002)

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Identifying Engine Compartment Junction Box Components (2003)

Courtesy of HYUNDAI MOTOR CO.

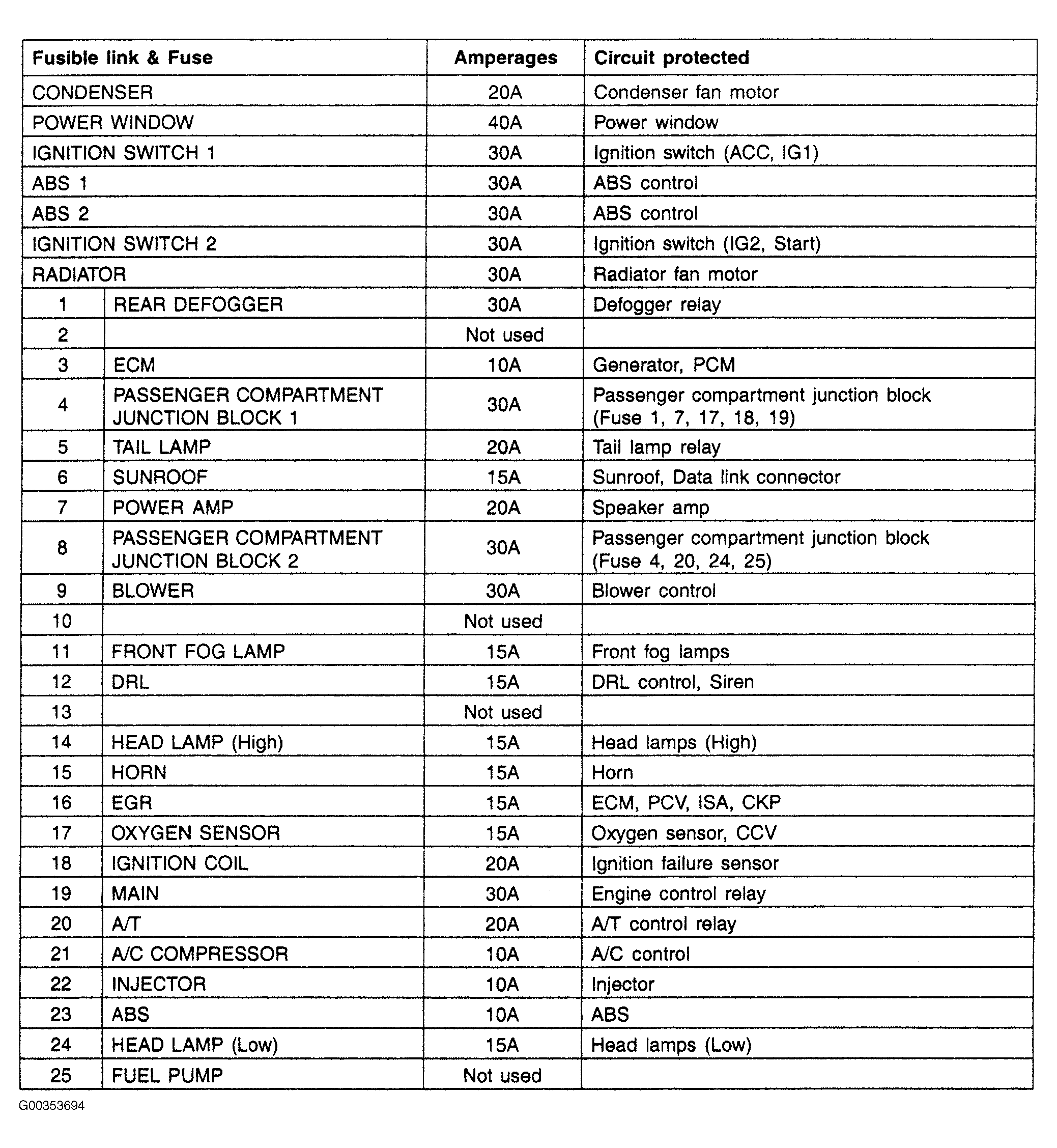

Fig 5: Engine Compartment Junction Box Legend (2003)

Courtesy of HYUNDAI MOTOR CO.

Fig 6: Identifying Engine Compartment Junction Box Connector Terminals (2002-03)

Courtesy of HYUNDAI MOTOR CO.
