Connecting Rod: Components
WARNING:
This page is about a different car, the 2004 Hyundai Santa Fe and 2003 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

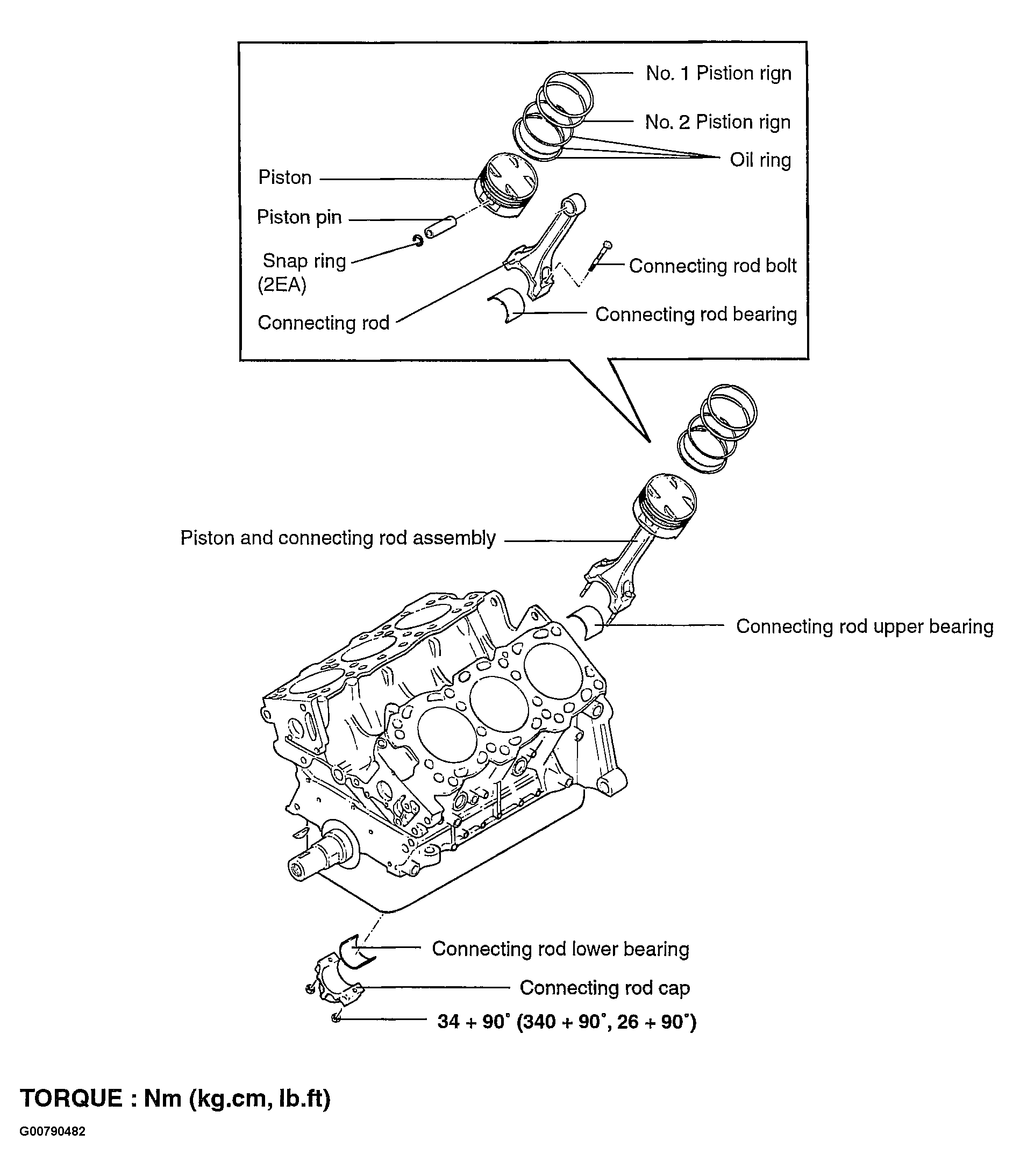

Fig 1: Connecting Rod Components
Courtesy of HYUNDAI MOTOR CO.
