Timing Belt: Components

WARNING: This page is about a different car, the 2004 Hyundai Santa Fe and 2003 Hyundai Santa Fe. However, it is still accessible from the selected car via links, so may be relevant.

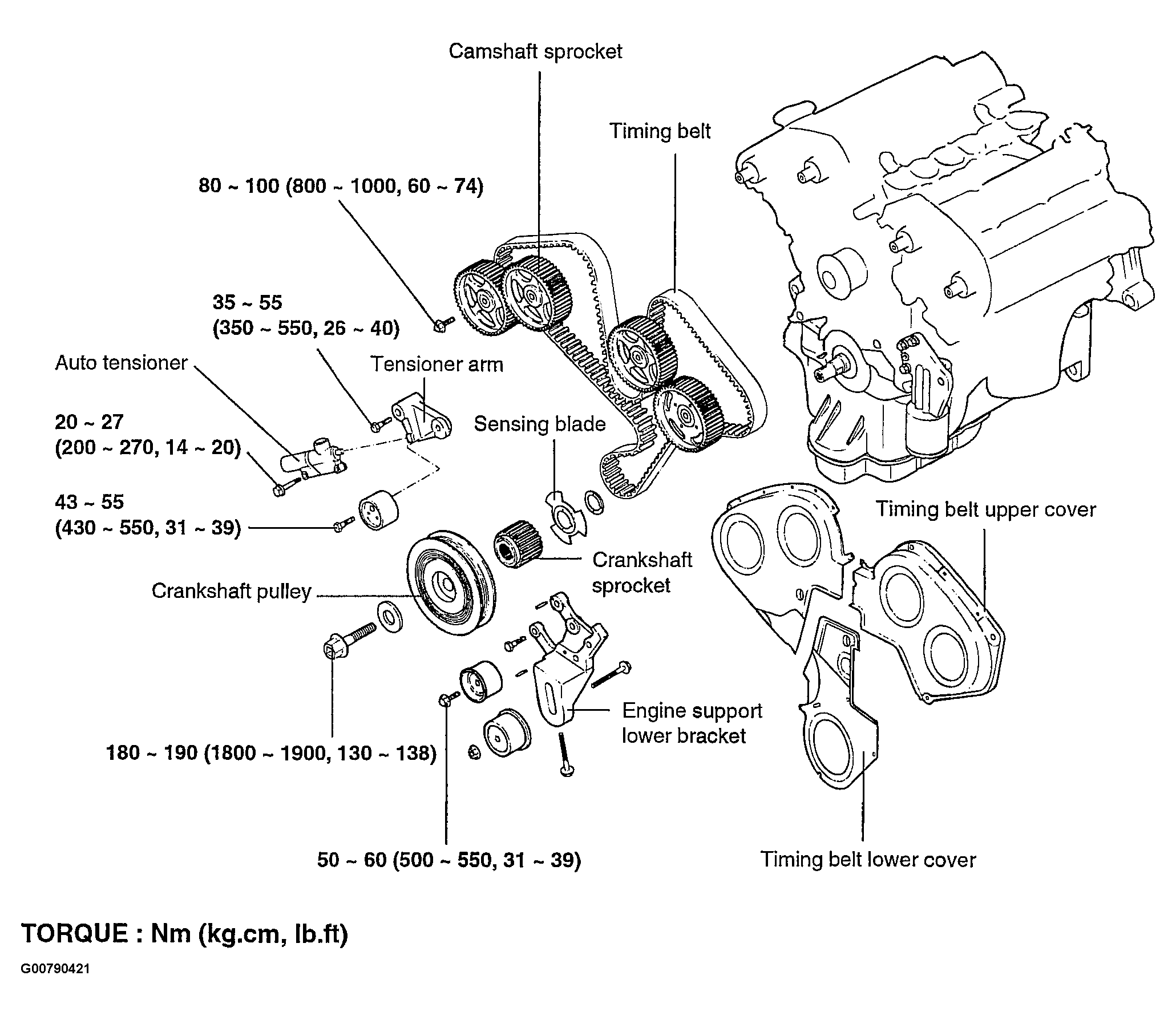

Fig 1: Timing System Components (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

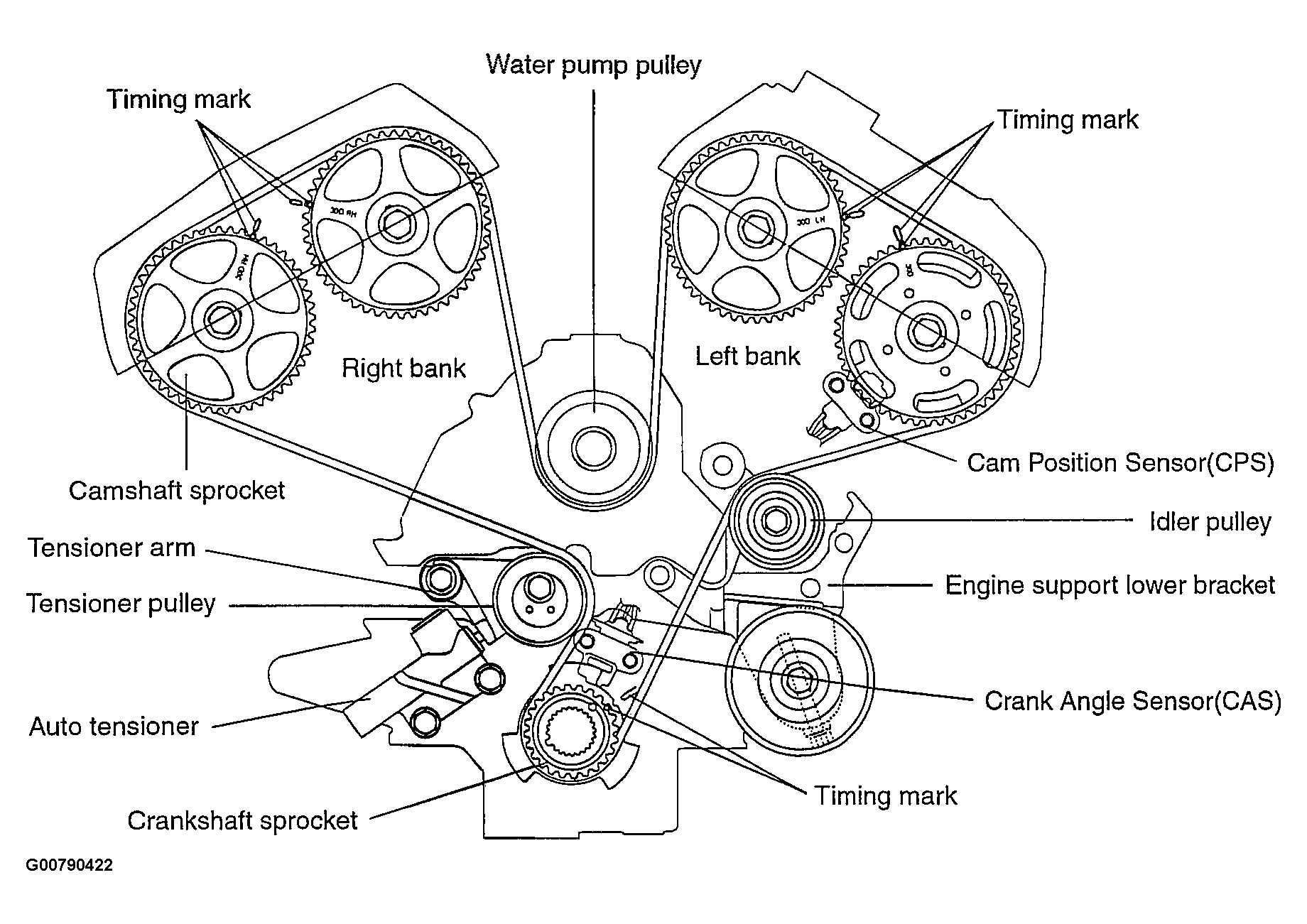

Fig 2: Timing System Components (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
