Home › Hyundai › 2003 › XG350 Base › Repair and Diagnosis › Suspension › Front Suspension System › Front Suspension System › Lower Arm › Components

Lower Arm: Components

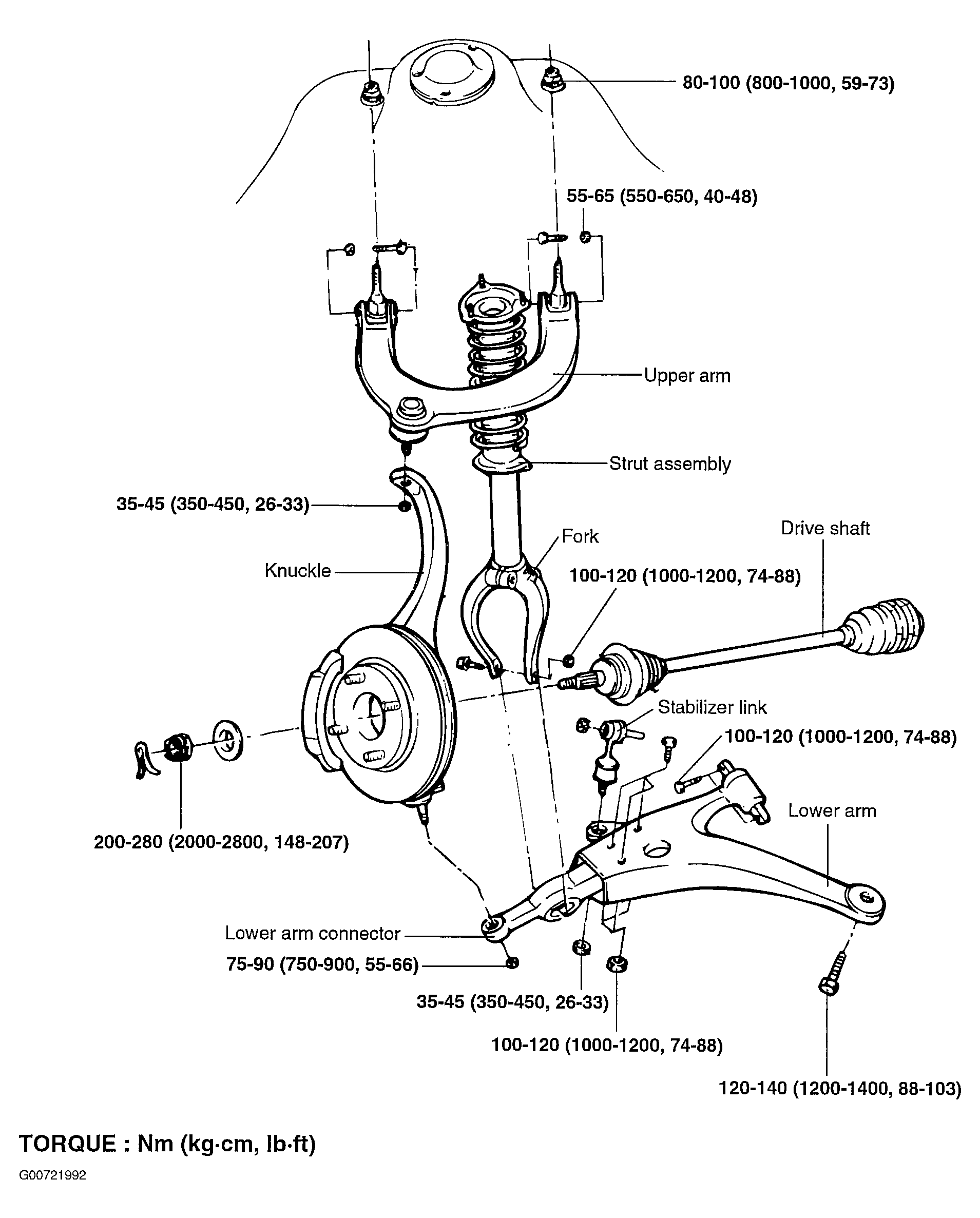

Fig 1: Identifying Lower Arm Components
G00721992Courtesy of HYUNDAI MOTOR CO.
