Tightening Torque

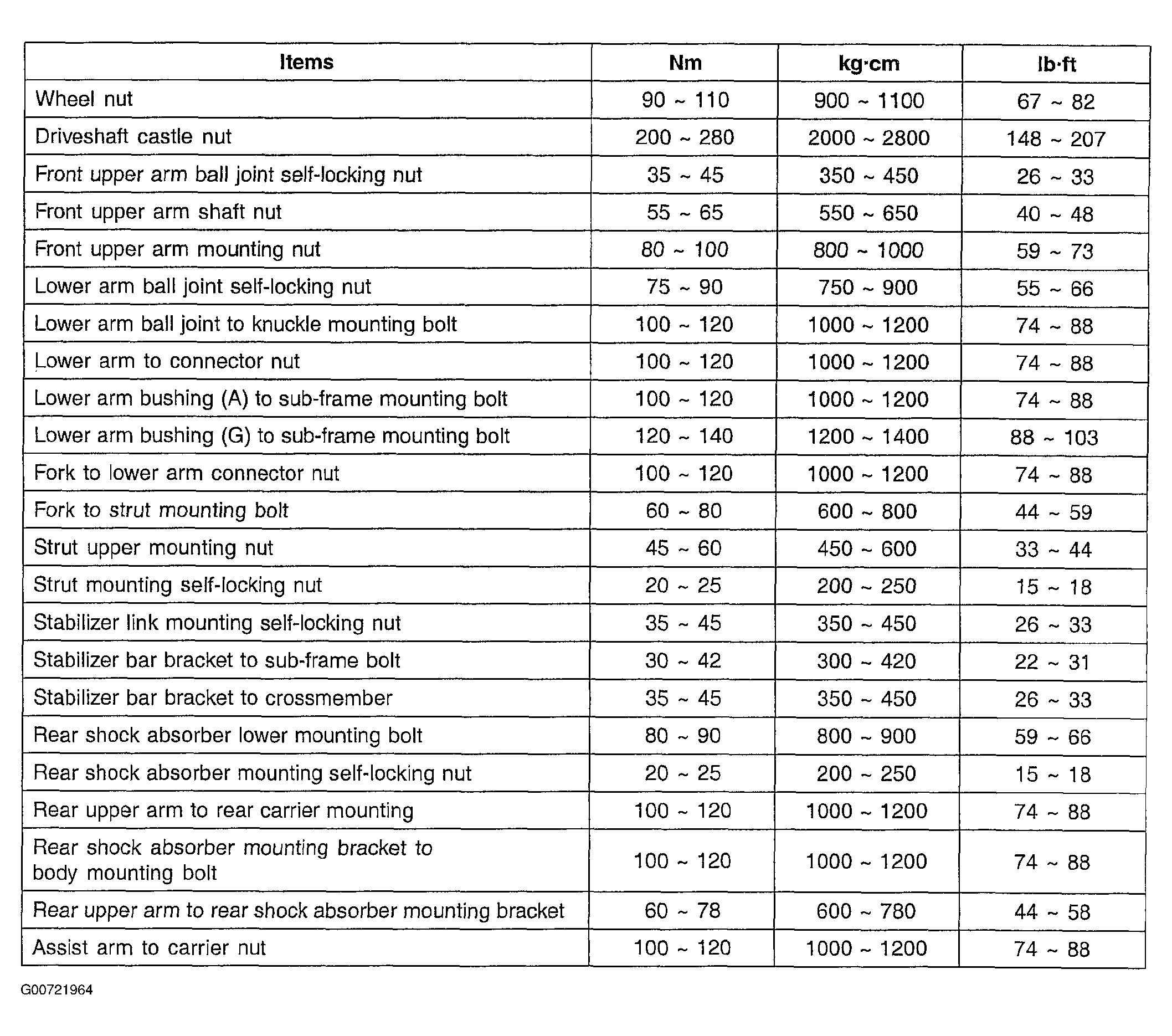

Fig 1: Front Suspension Tightening Torque Specifications (1 Of 3)

Courtesy of HYUNDAI MOTOR CO.

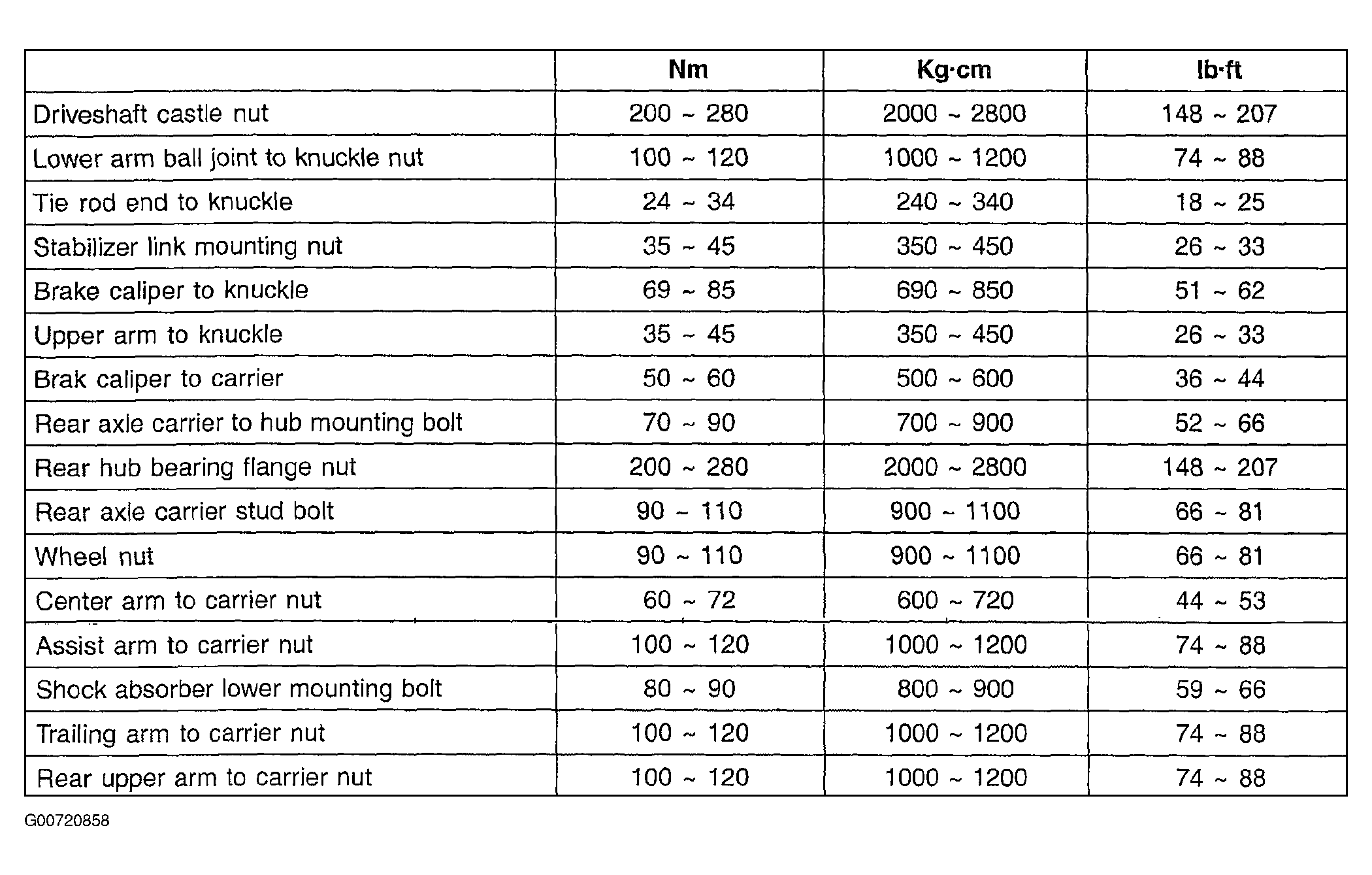

Fig 2: Front Suspension Tightening Torque Specifications (2 Of 3)

Courtesy of HYUNDAI MOTOR CO.

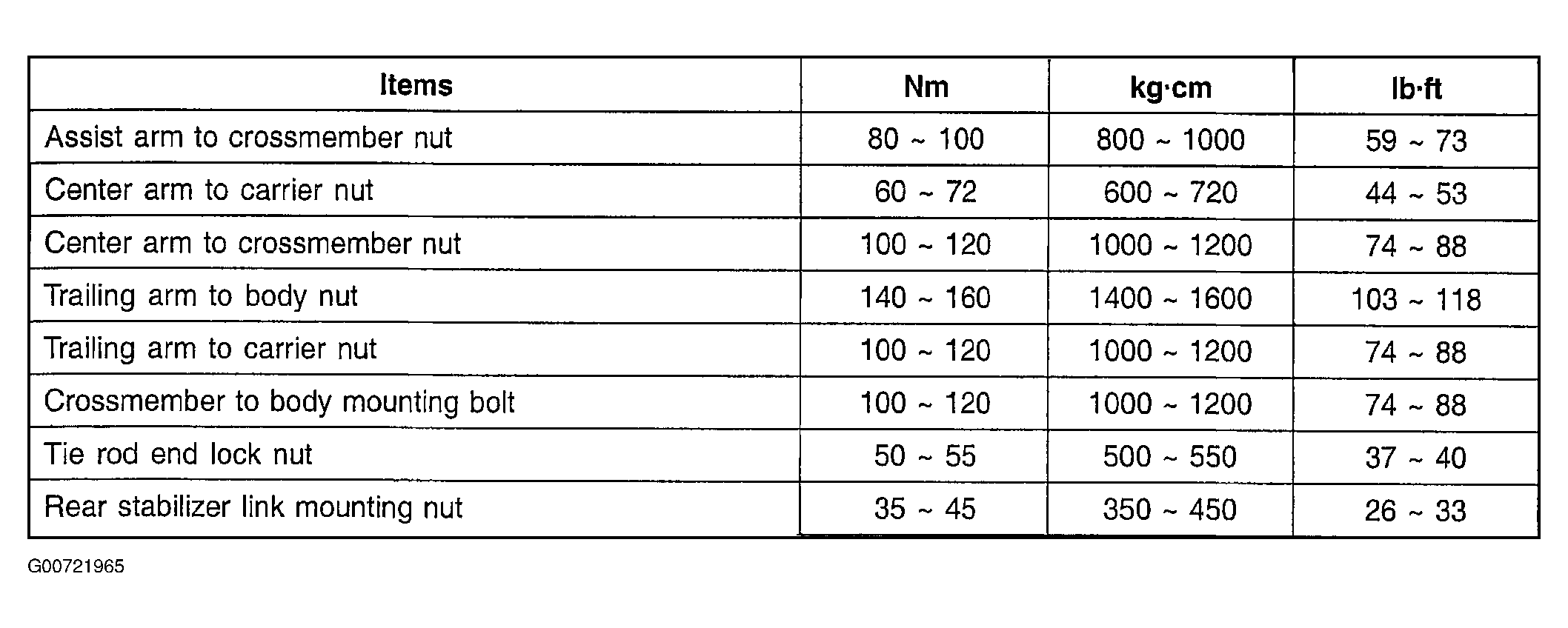

Fig 3: Front Suspension Tightening Torque Specifications (3 Of 3)

Courtesy of HYUNDAI MOTOR CO.

CAUTION: Replace the self-locking nuts with new ones after removal.
