Road Test

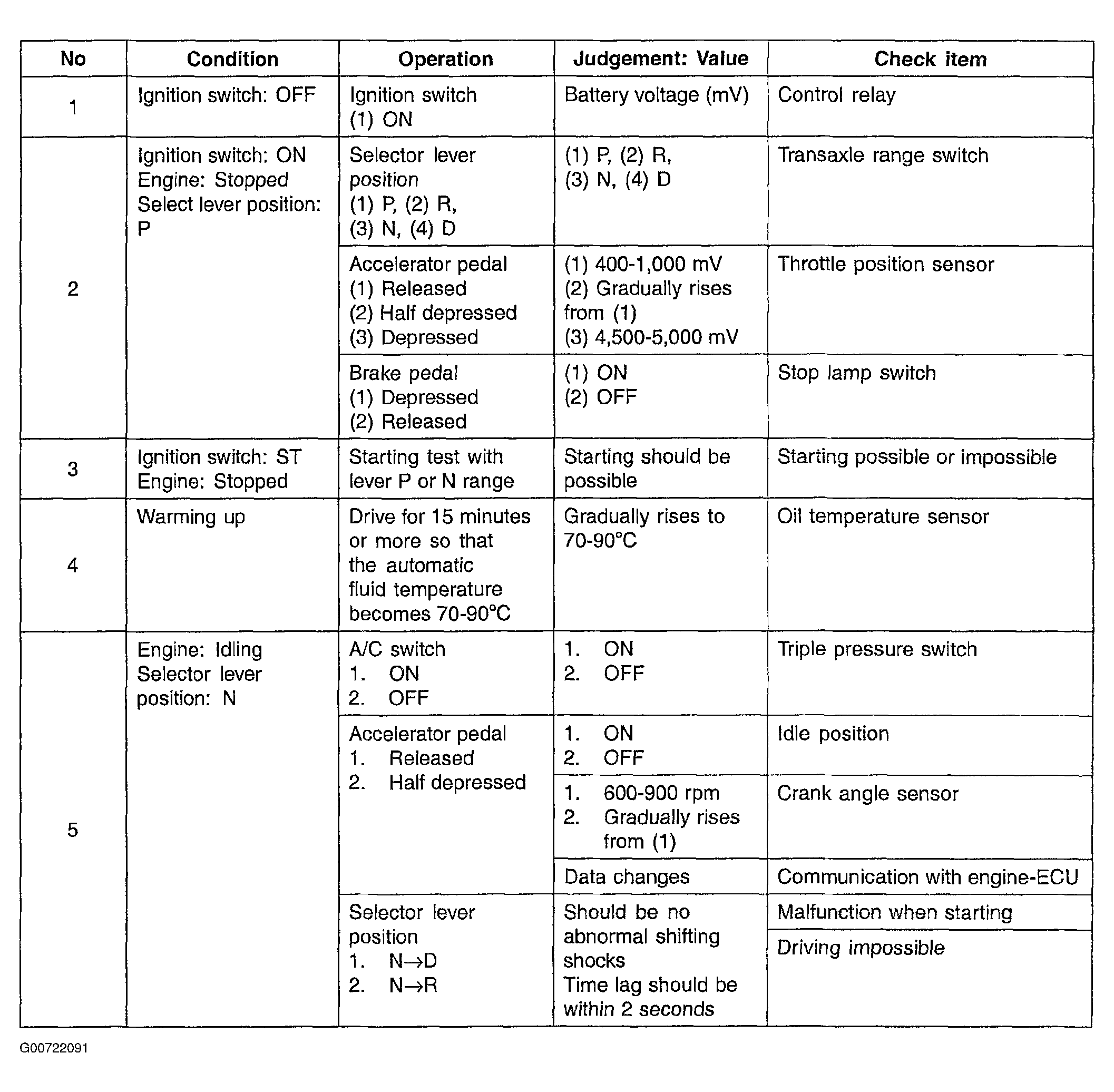

Fig 1: Road Test Evaluation Table (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

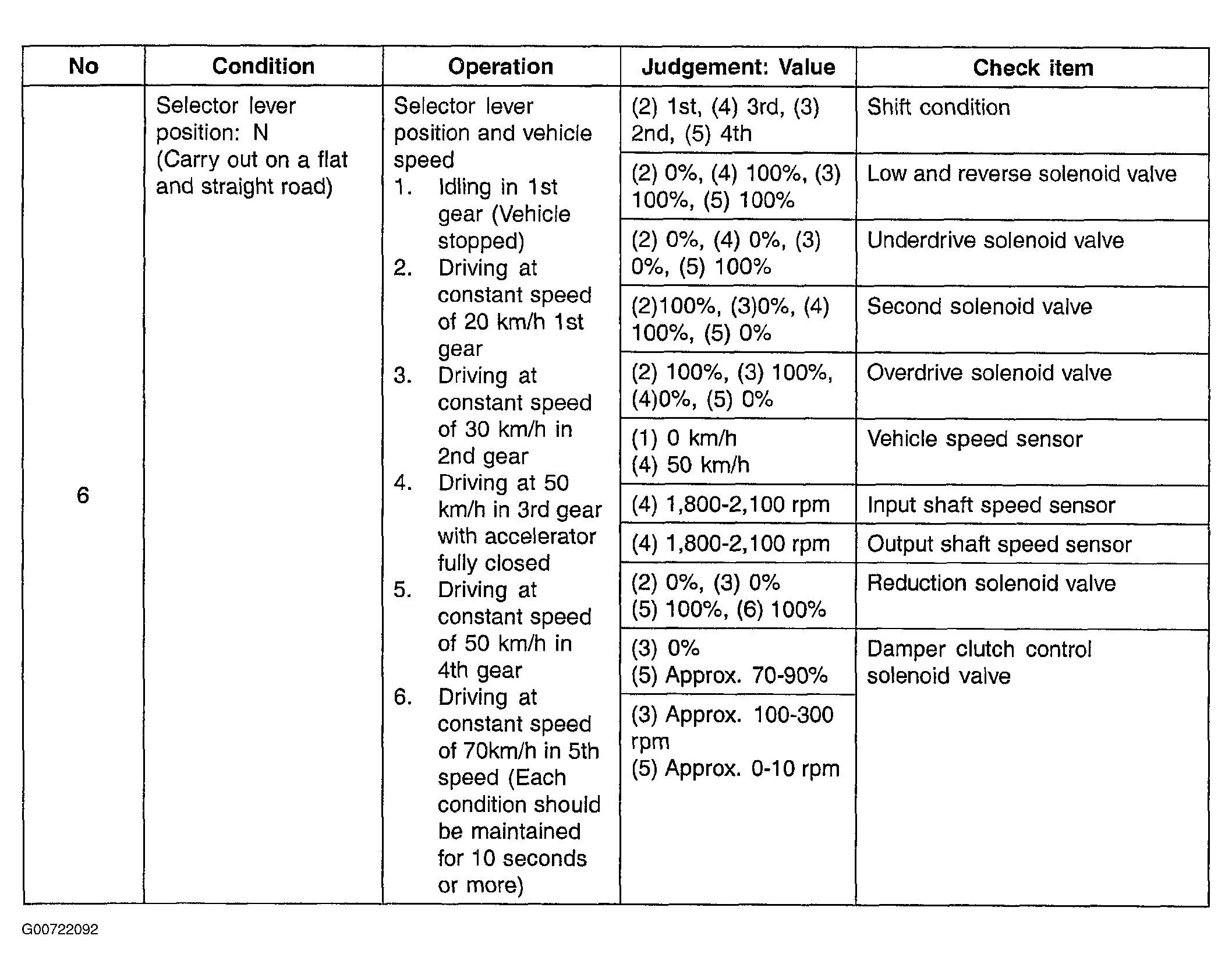

Fig 2: Road Test Evaluation Table (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

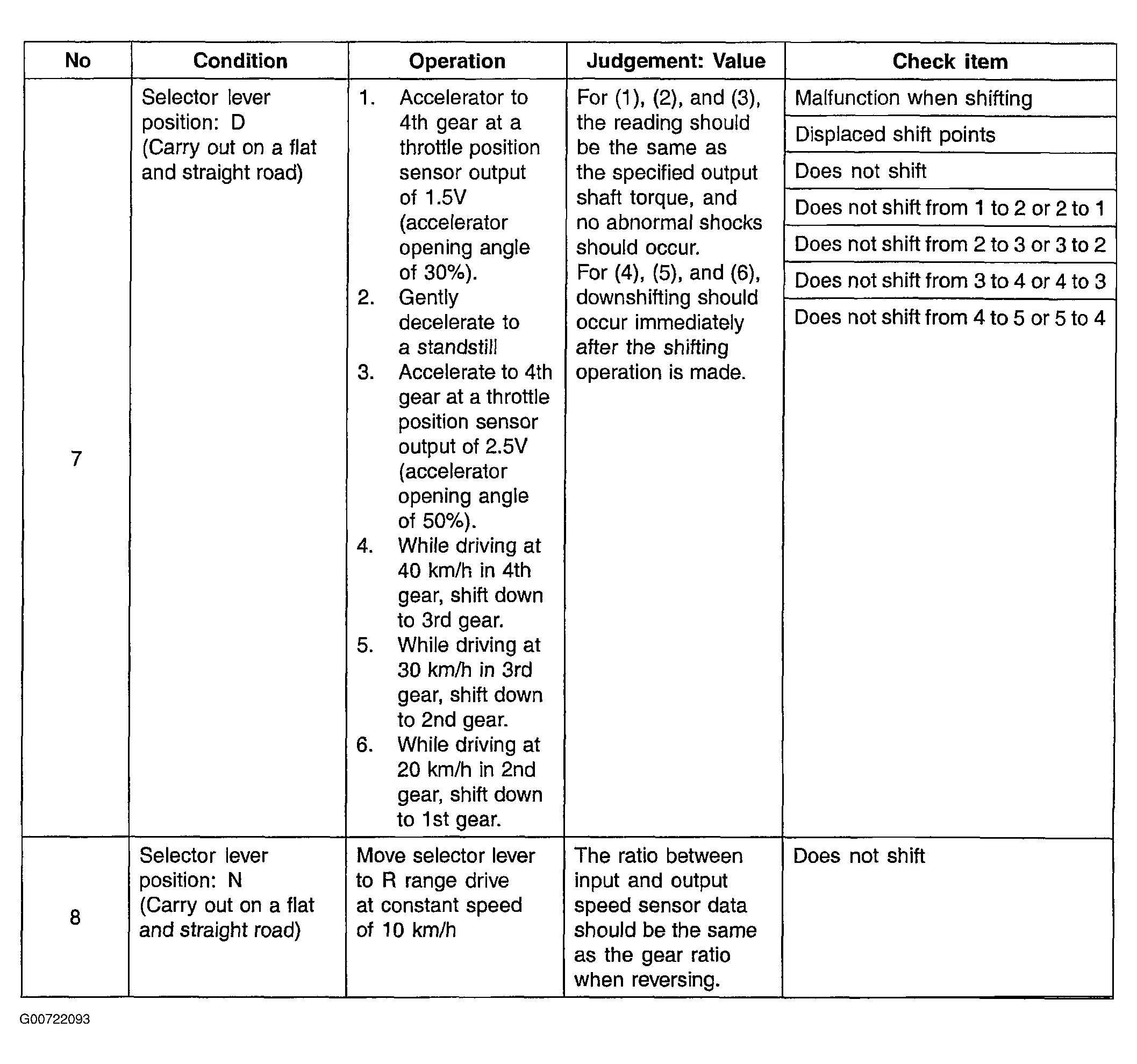

Fig 3: Road Test Evaluation Table (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
