Removal And Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the horn mounting bolts and disconnect the 2P connector from the horn.

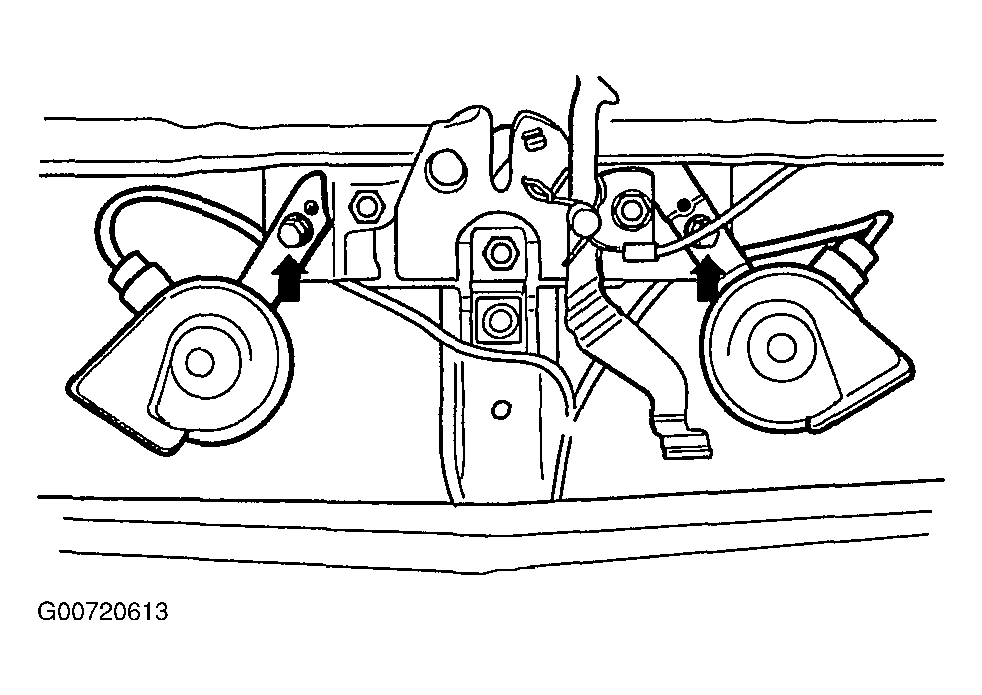

    Fig 1: Removing Horns
    G00720613Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
