Ignition Switch: Inspection

1. Disconnect the connector under the steering column.
2. Check the switch continuity between the terminals.
3. If continuity is not as specified, replace the switch

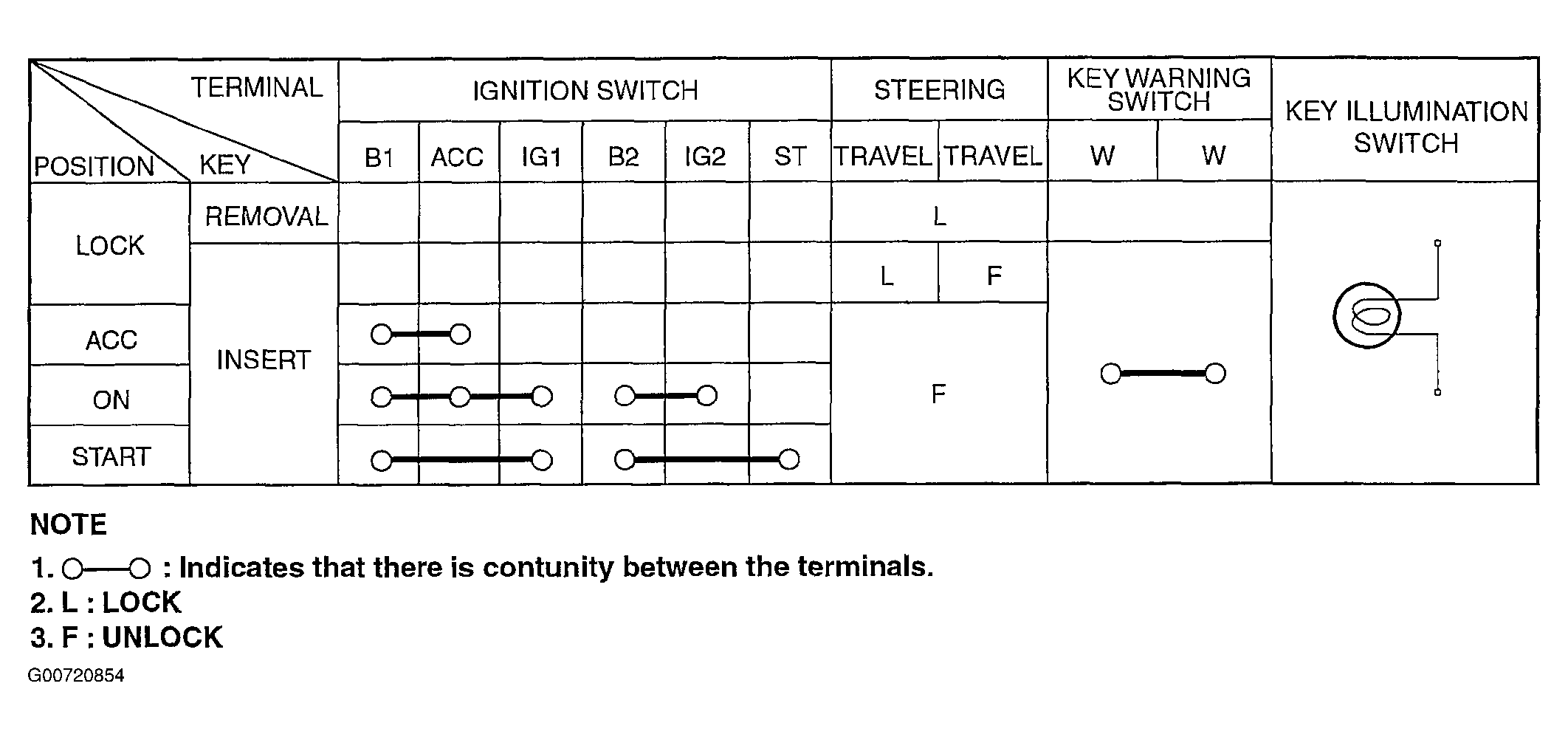

   Fig 1: Ignition Switch Position/Continuity Table (1 Of 2)

   Courtesy of HYUNDAI MOTOR CO.

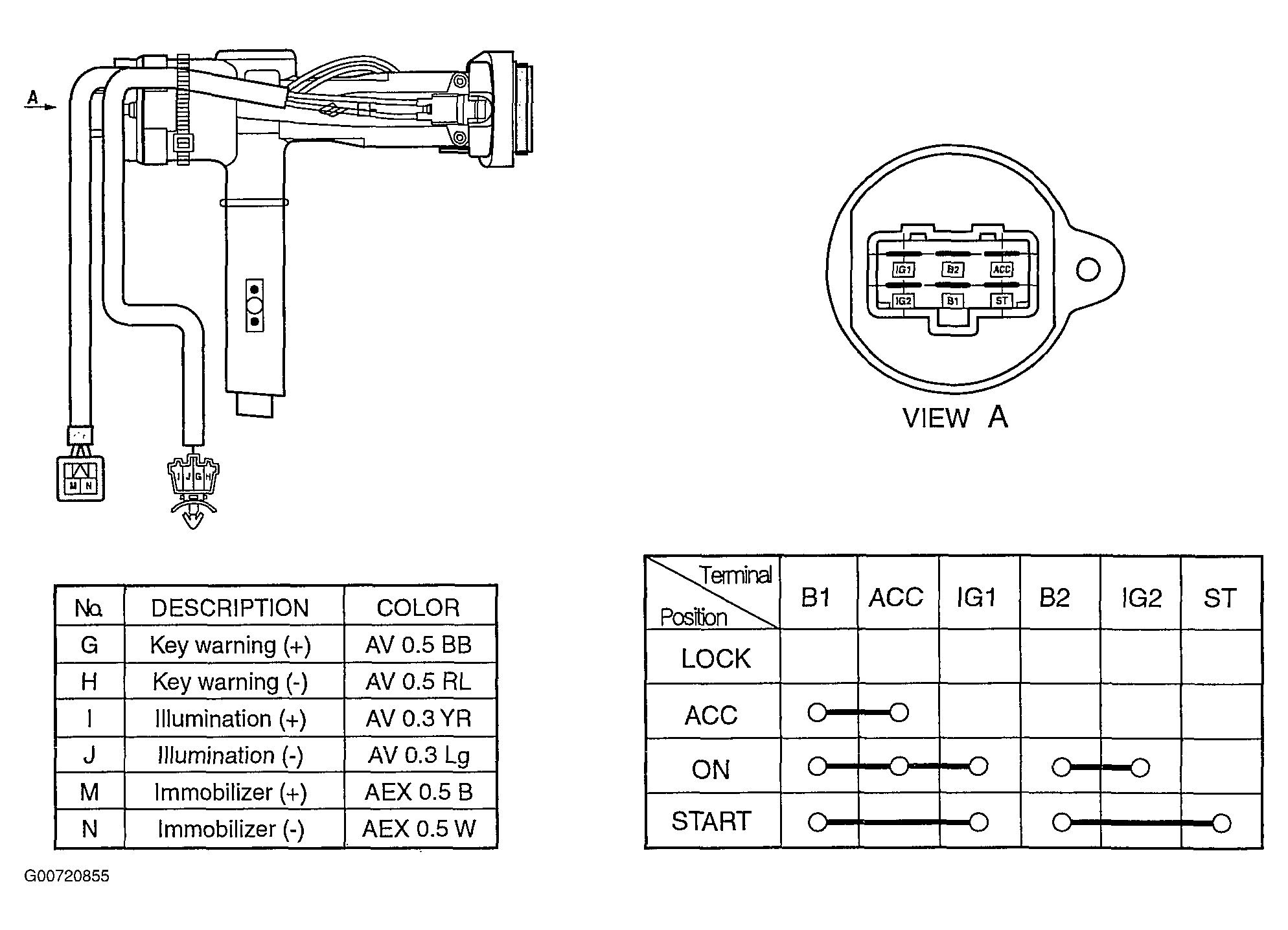

Fig 2: Ignition Switch Position/Continuity Table (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
