MULTIFUNCTION Switch
›
Specifications
MULTIFUNCTION Switch: Specifications

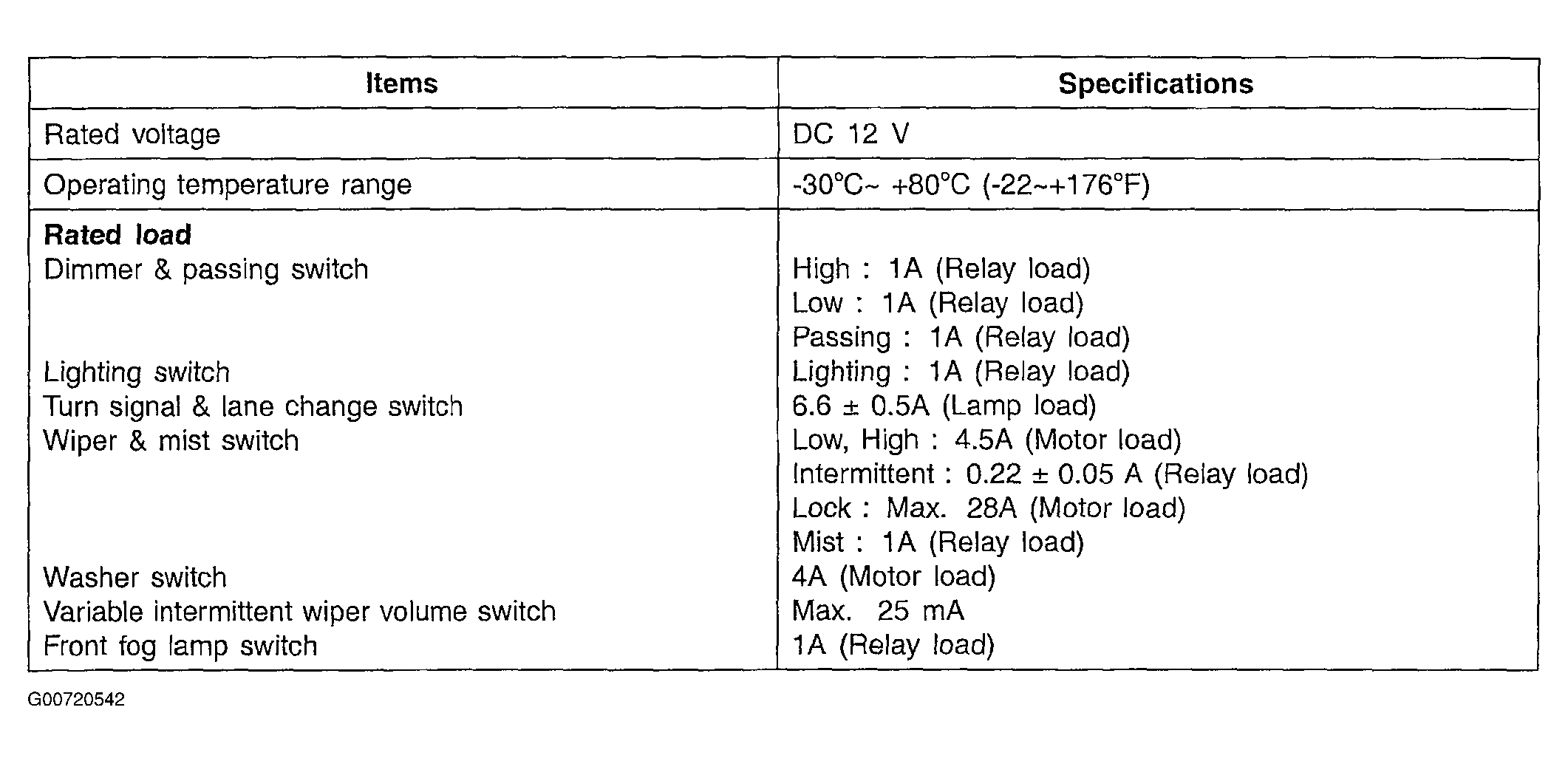

Fig 1: Multifunction Switch Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
