Repair and Diagnosis
›
Suspension
›
Front Suspension System
›
Special Tools
Special Tools

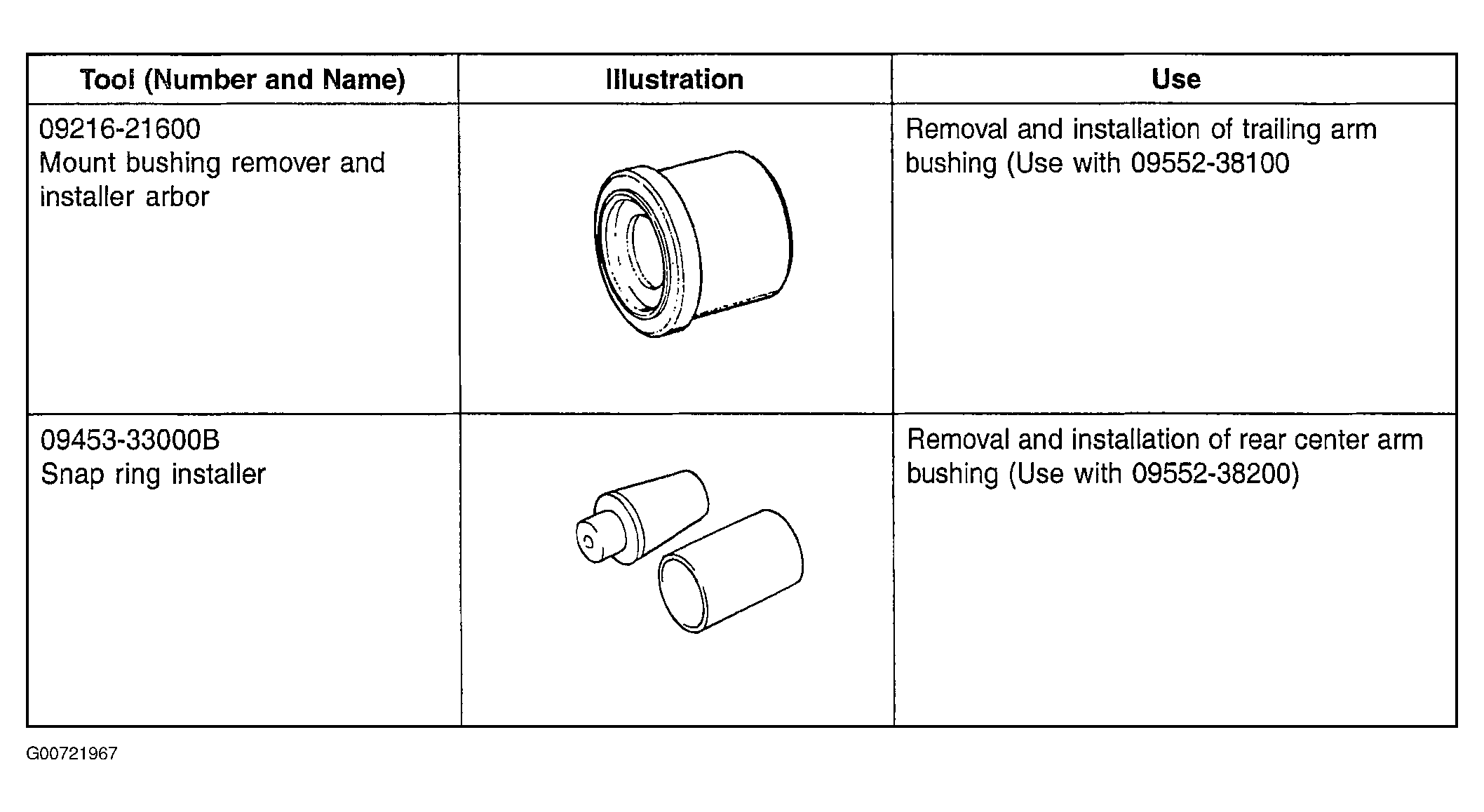

Fig 1: Special Tools (1 Of 4)
Courtesy of HYUNDAI MOTOR CO.

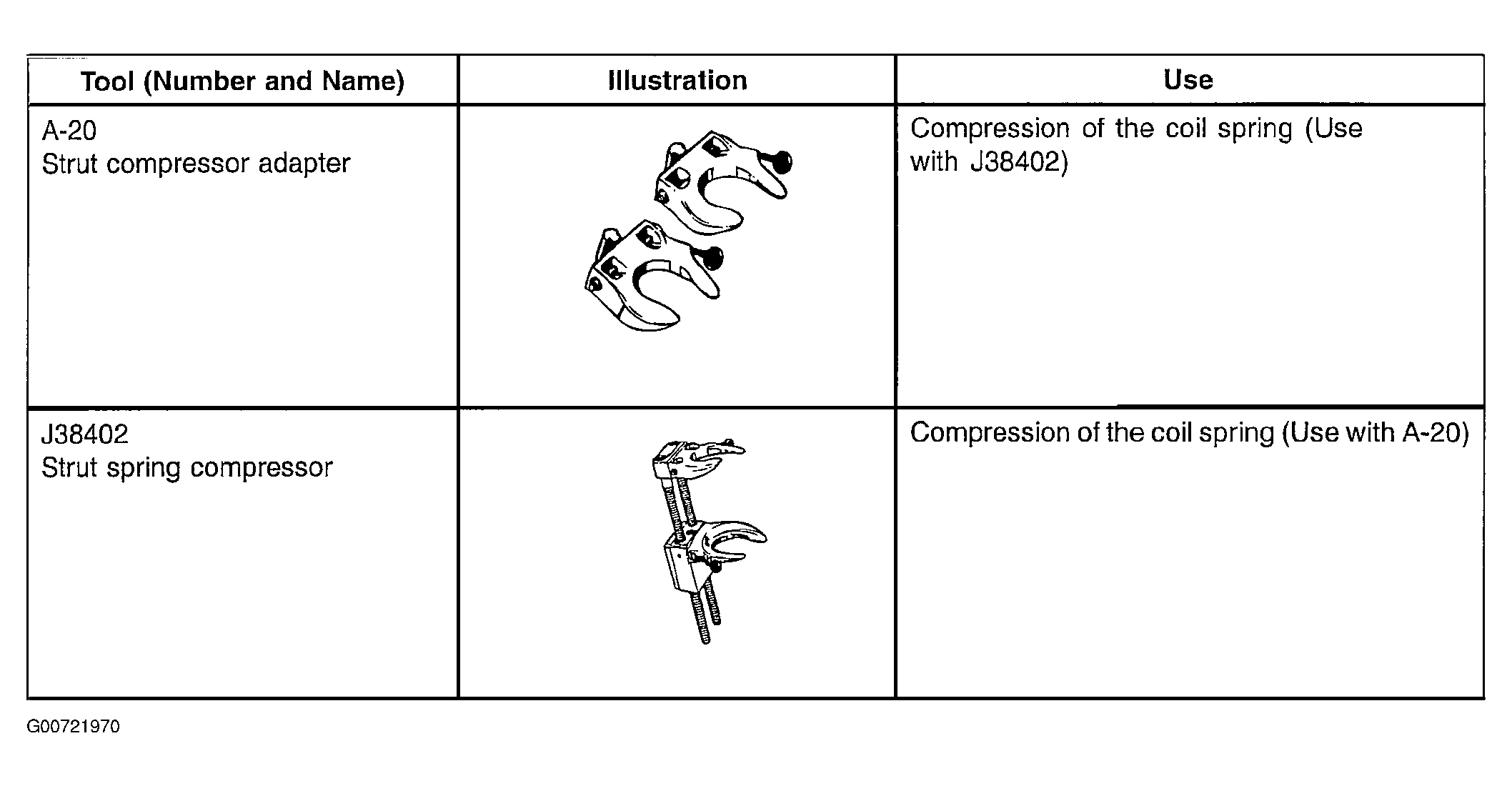

Fig 2: Special Tools (2 Of 4)
Courtesy of HYUNDAI MOTOR CO.

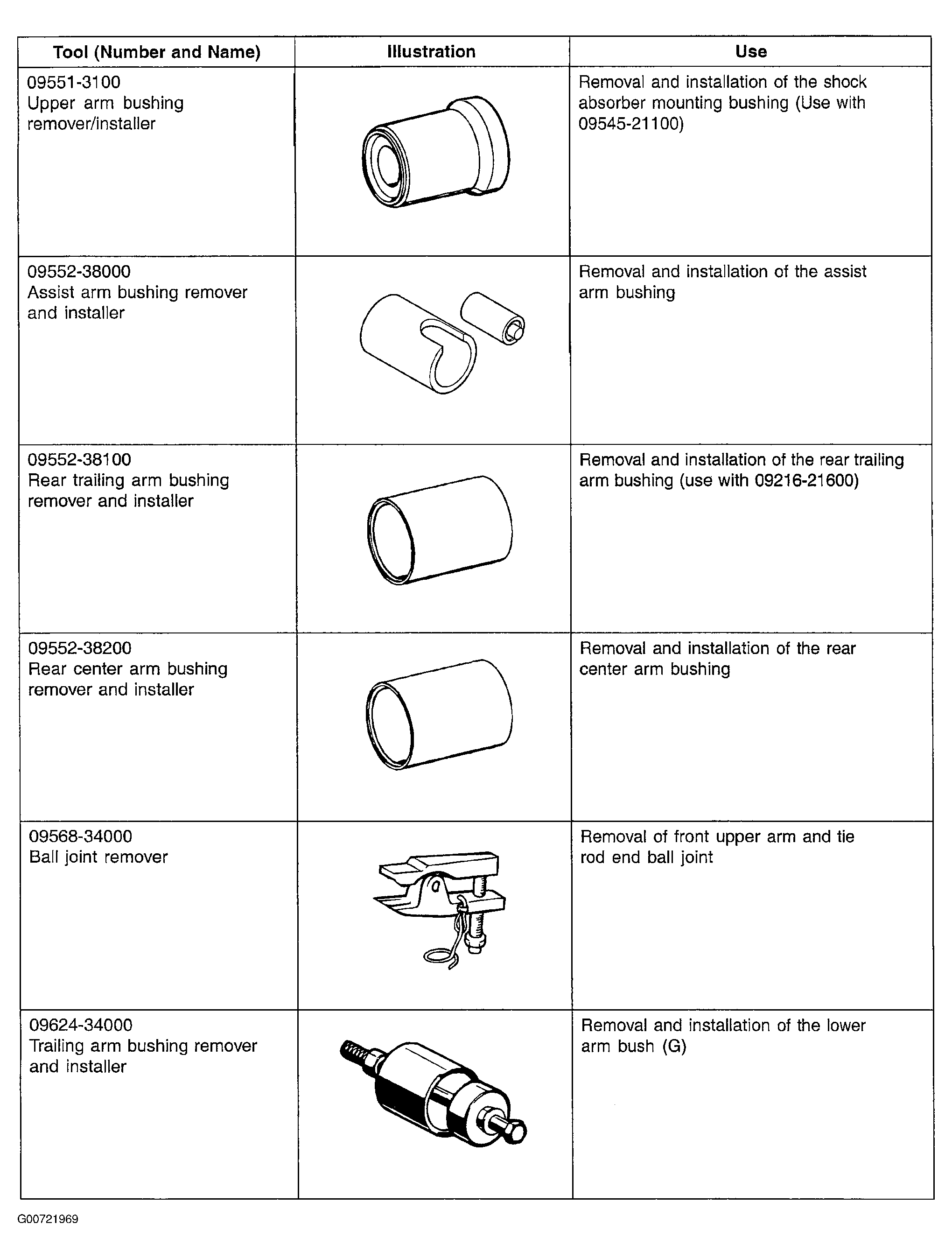

Fig 3: Special Tools (3 Of 4)
Courtesy of HYUNDAI MOTOR CO.

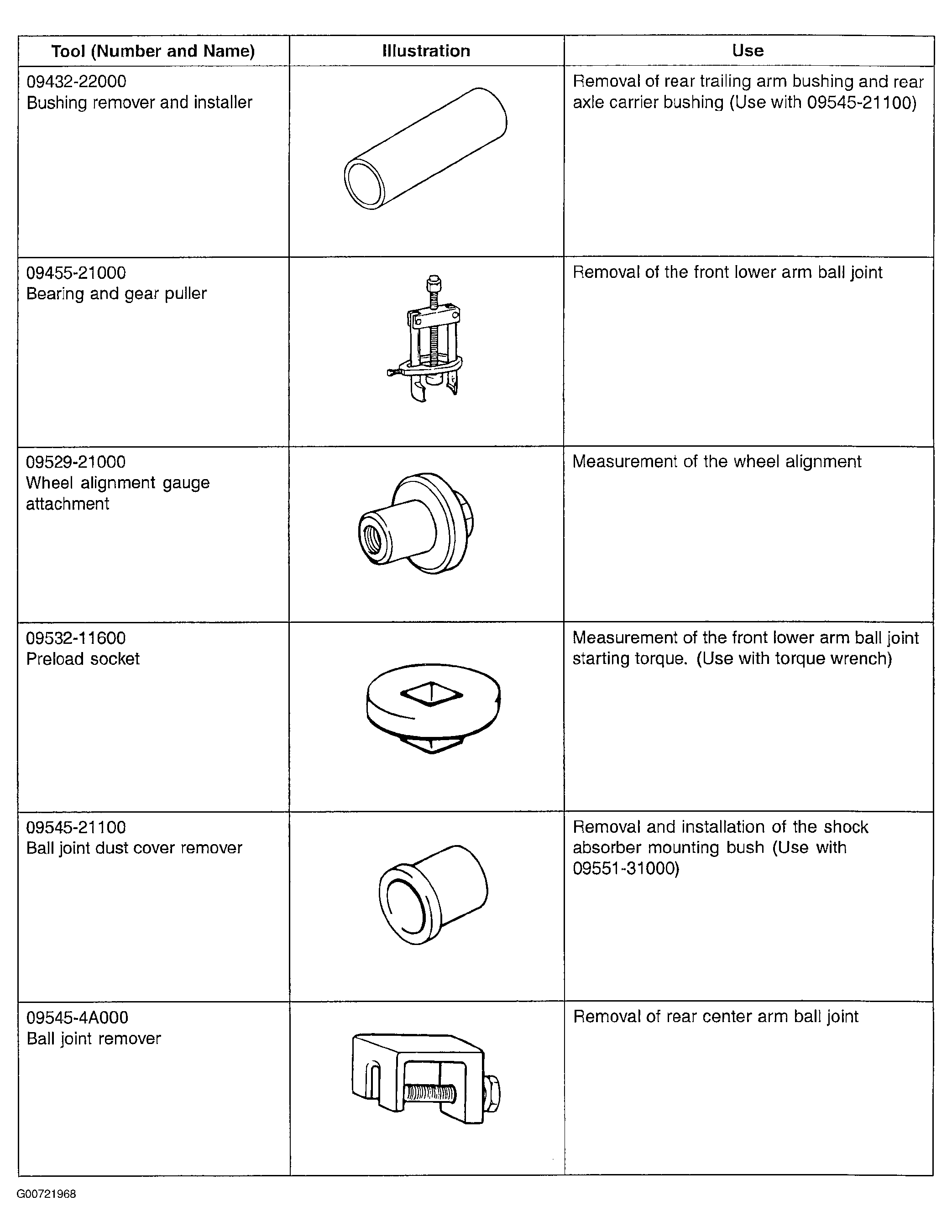

Fig 4: Special Tools (4 Of 4)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
