Circuit Diagram

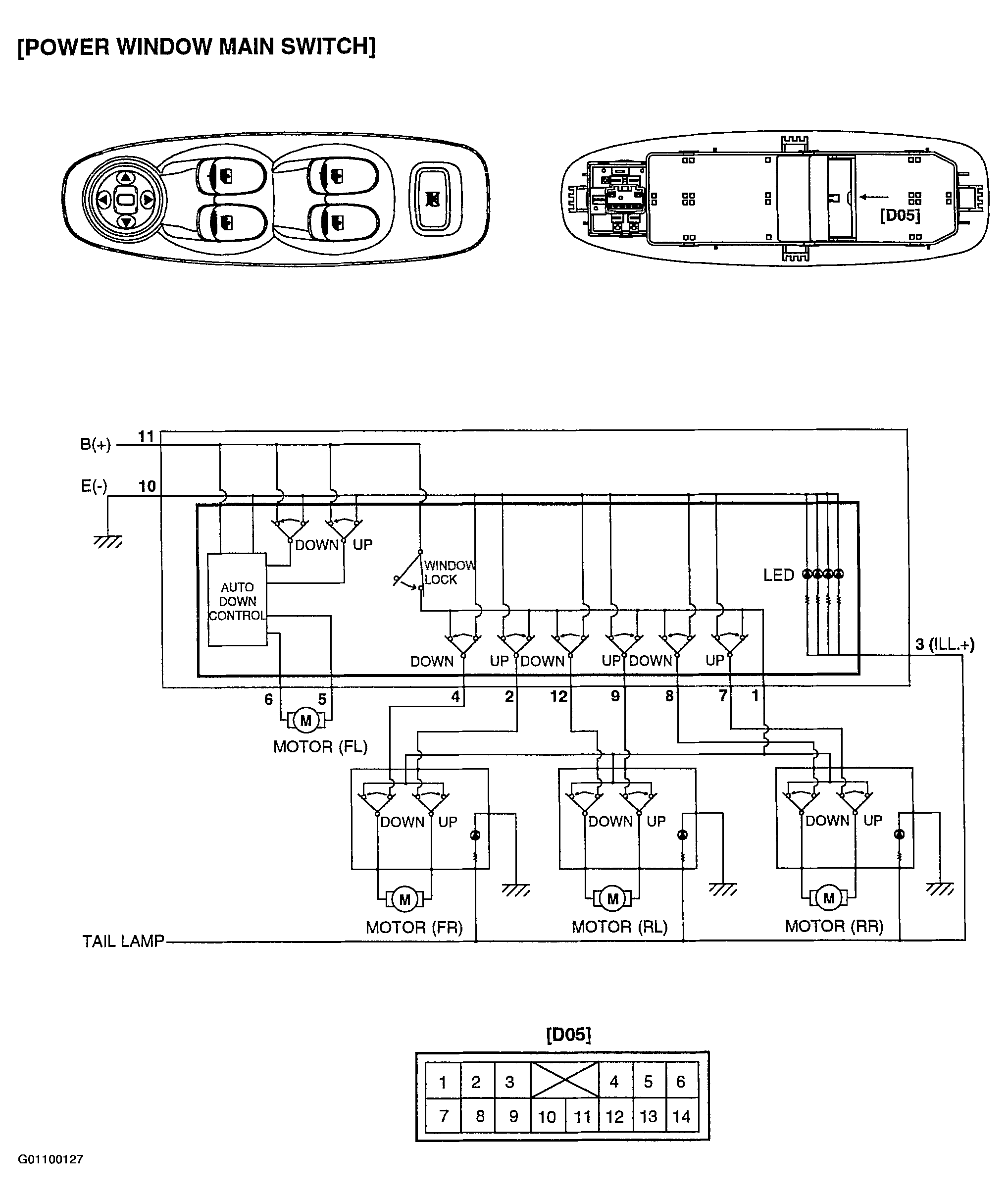

Fig 1: Identifying Power Window Switch Circuit Diagram & Connector Terminals (Main Switch)
G01100127Courtesy of HYUNDAI MOTOR CO.

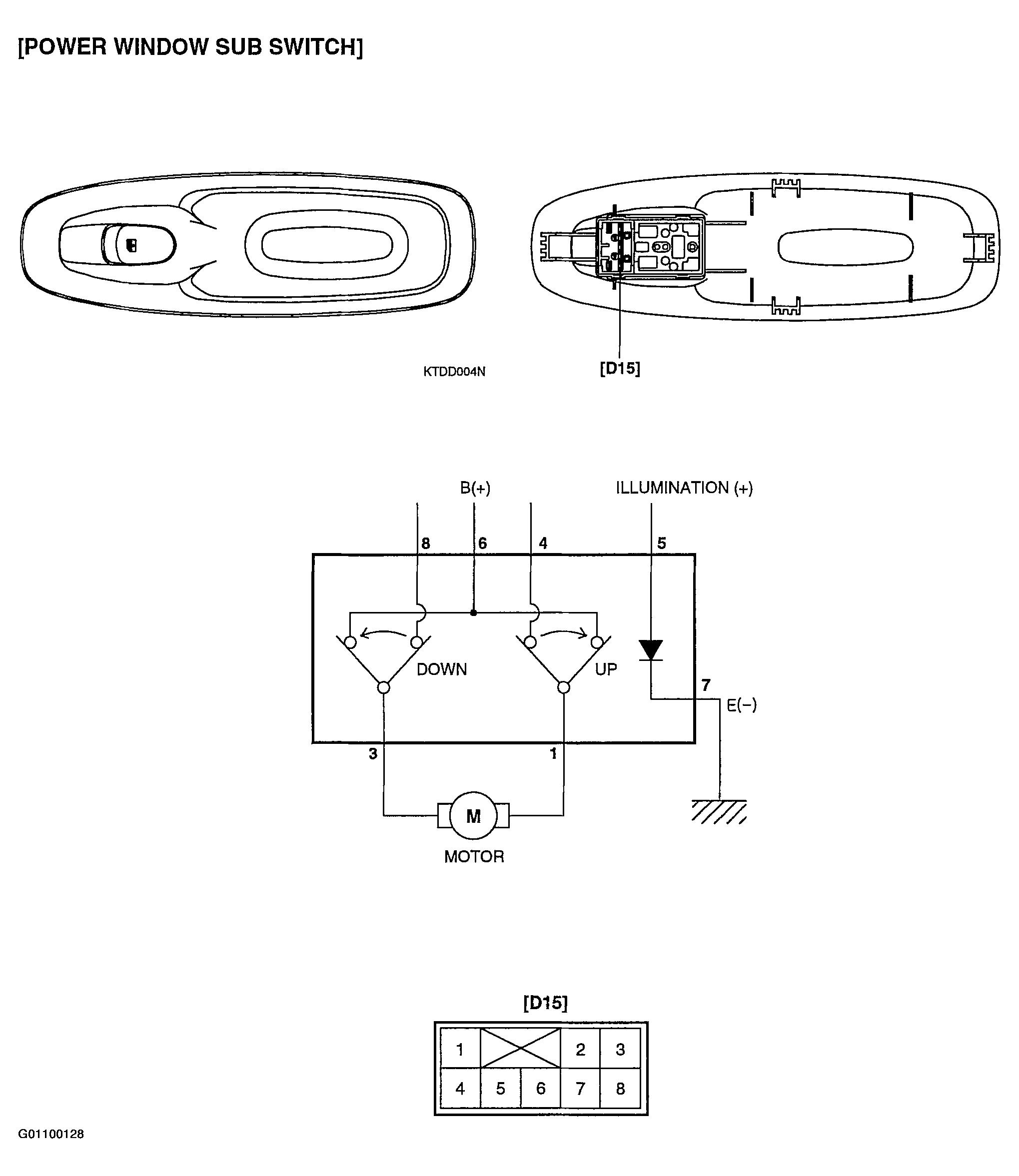

Fig 2: Identifying Power Window Switch Circuit Diagram & Connected Terminals (Sub Switch)
G01100128Courtesy of HYUNDAI MOTOR CO.
