Audio System: Components

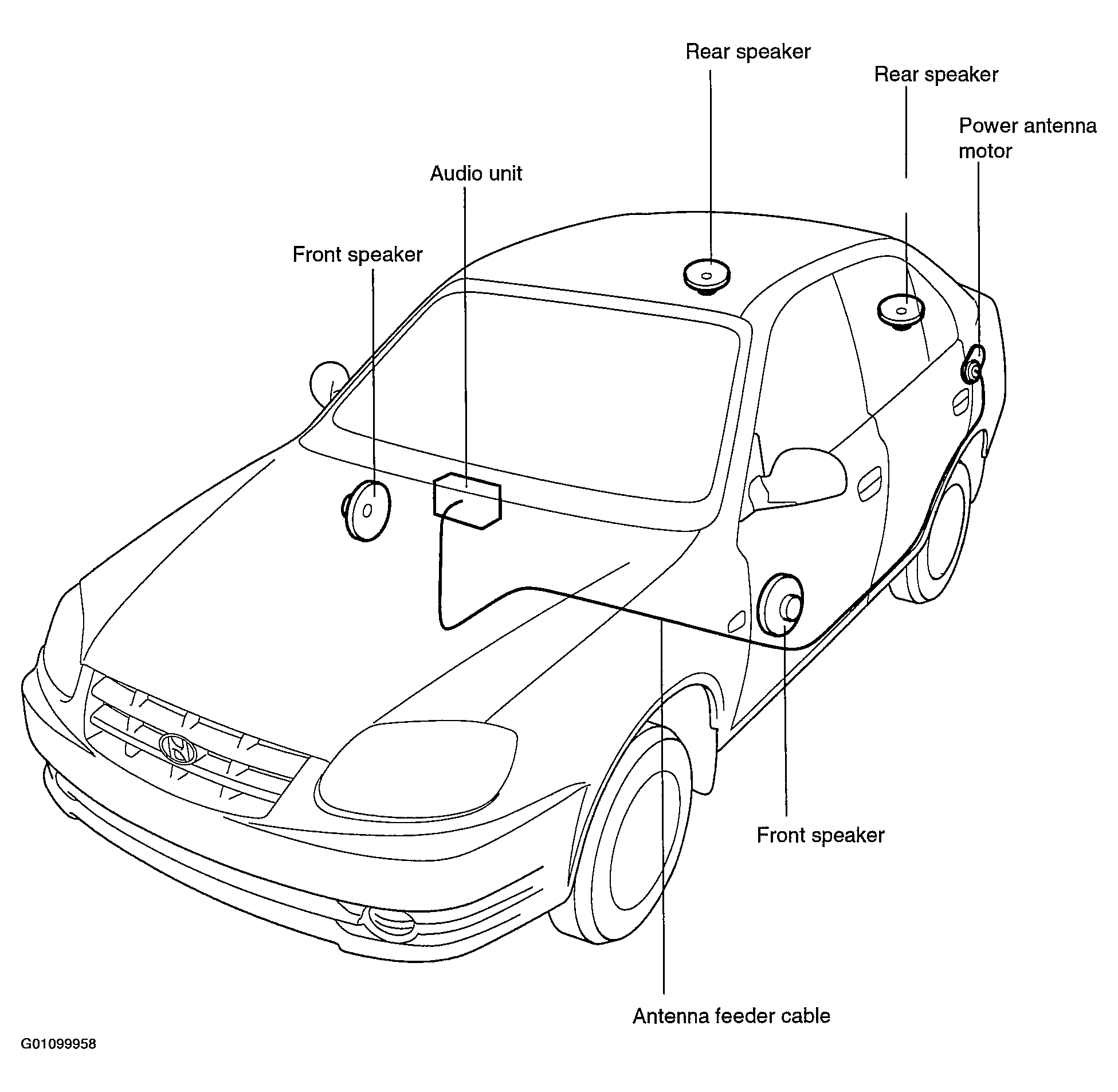

Fig 1: Identifying Audio System Components

Courtesy of HYUNDAI MOTOR CO.

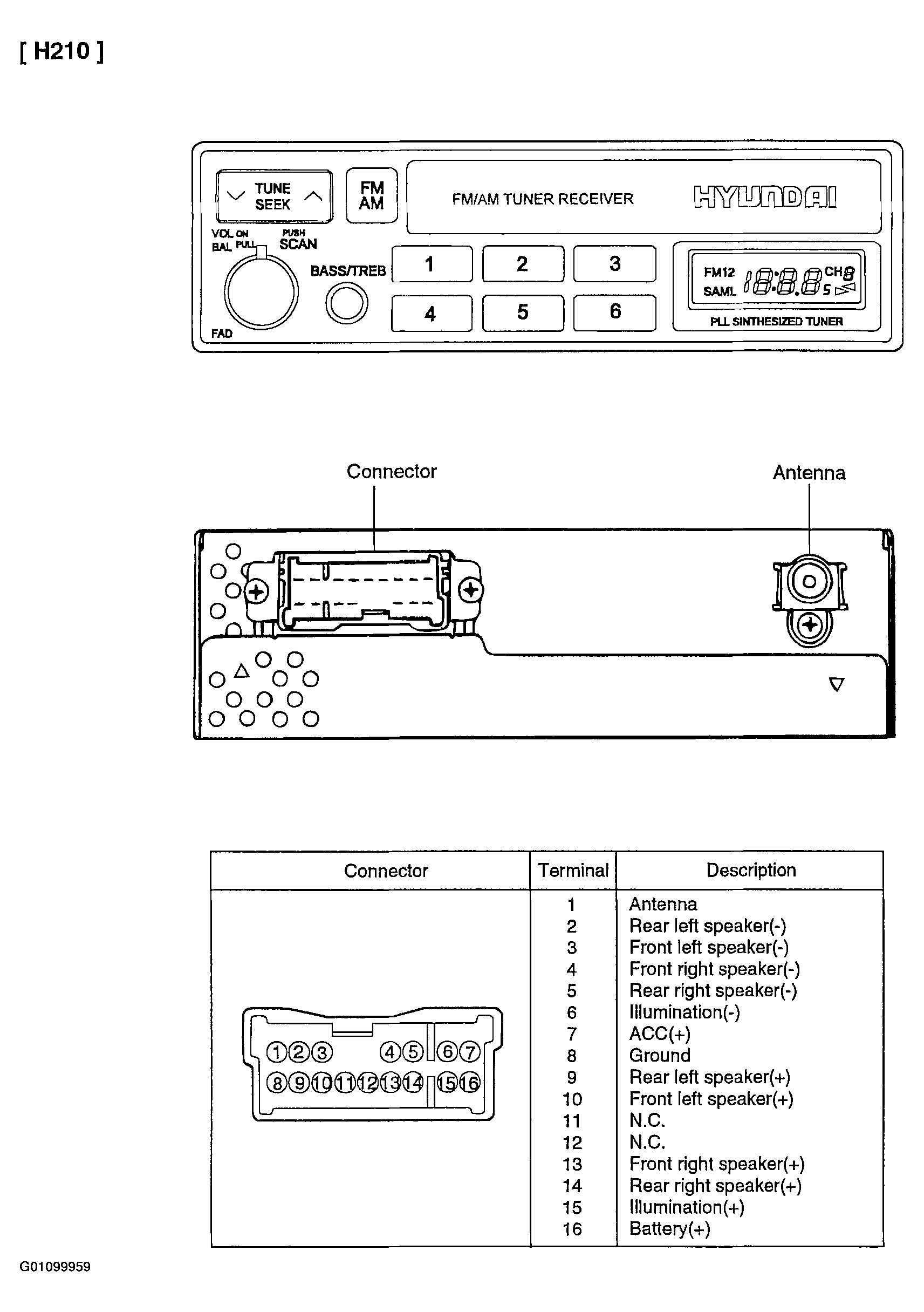

Fig 2: Identifying AM/FM Tuner Receiver & Connector Terminal Identification

Courtesy of HYUNDAI MOTOR CO.

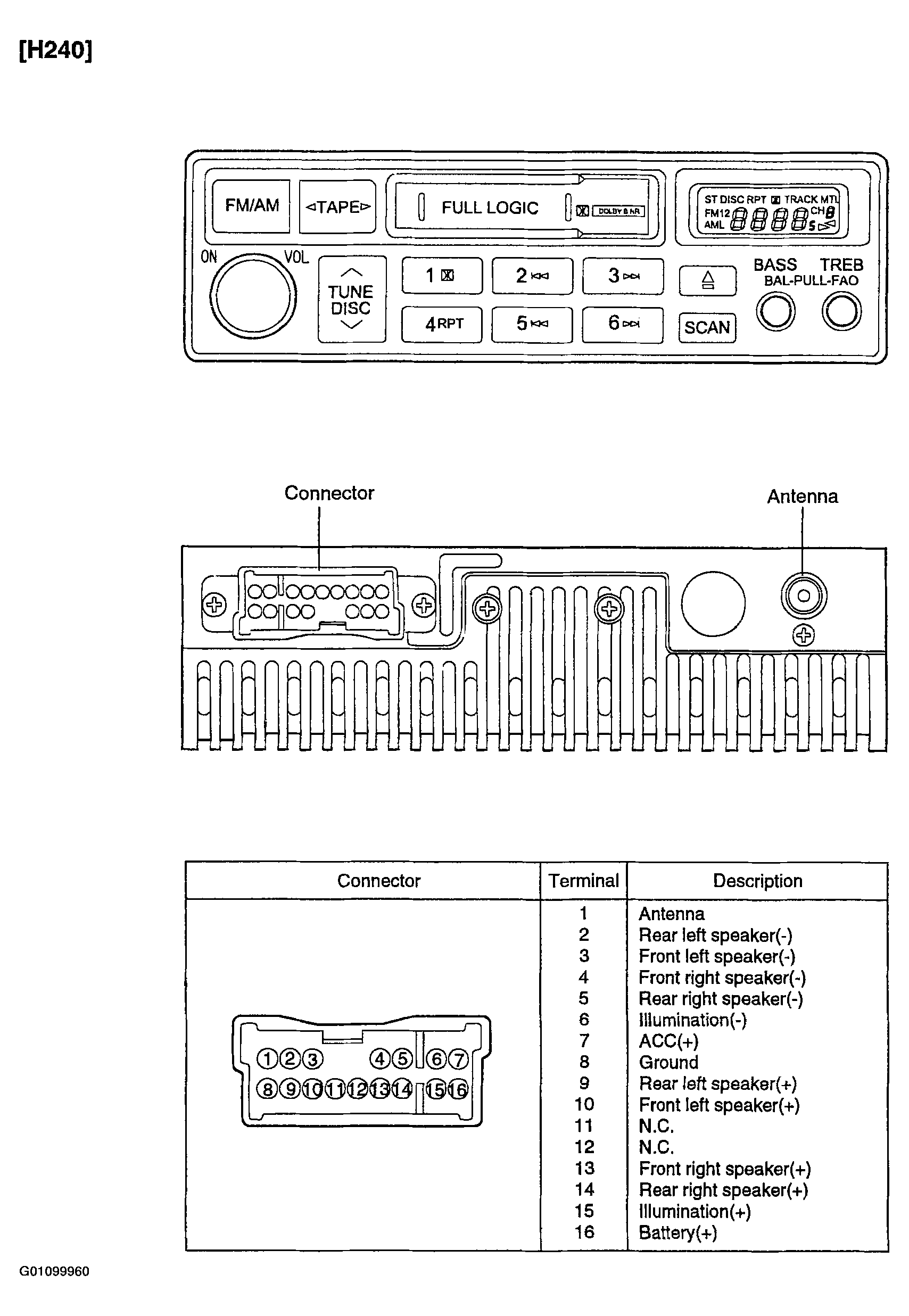

Fig 3: Identifying AM/FM Tuner Receiver/Tape Player & Connector Terminal Identification

Courtesy of HYUNDAI MOTOR CO.

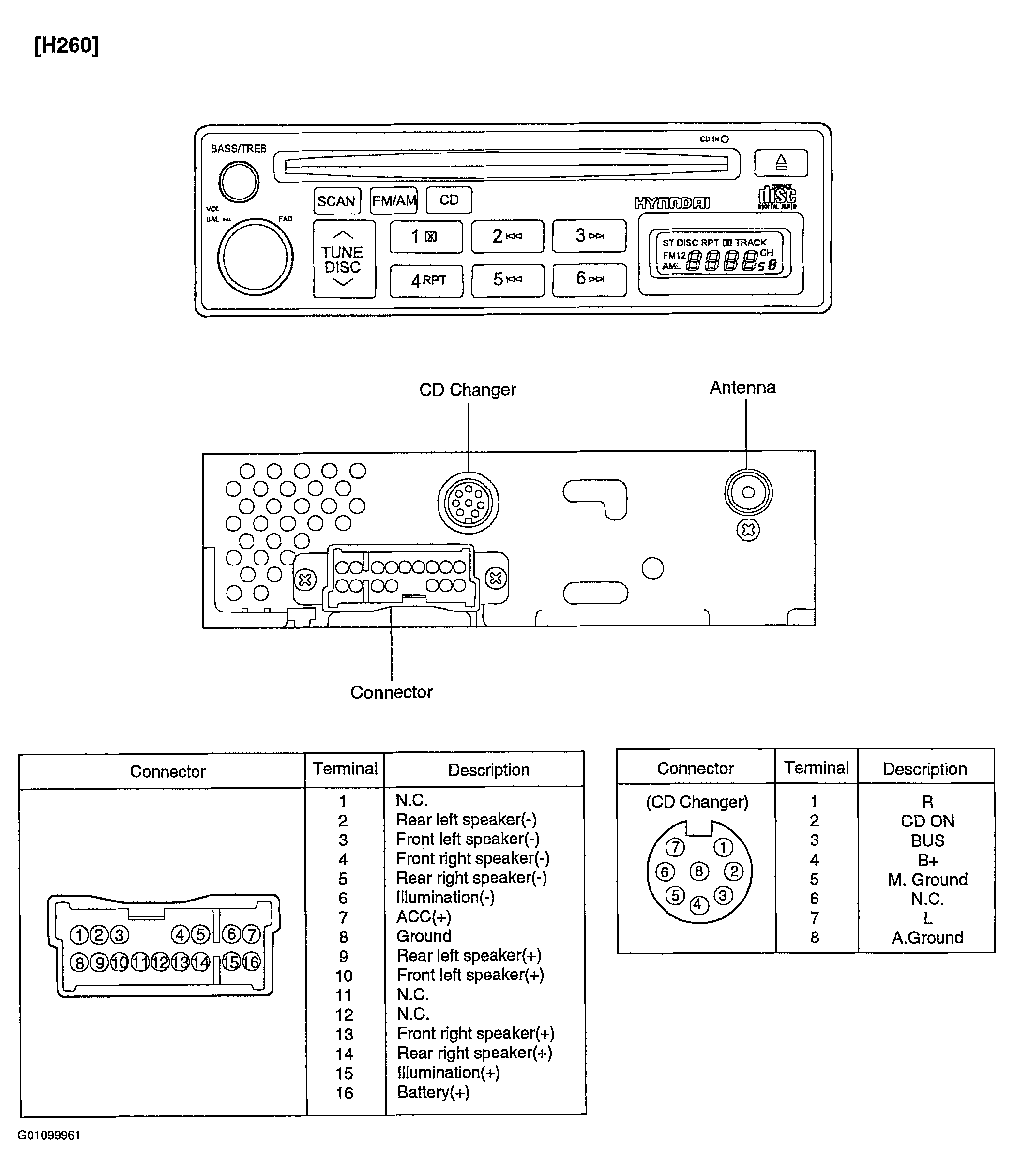

Fig 4: Identifying AM/FM Tuner Receiver/ CD Player & Connector Terminal Identification

Courtesy of HYUNDAI MOTOR CO.
