Electronic Time & Alarm Control System
›
Electronic Time & Alarm Control Module
›
Circuit Diagram
Circuit Diagram

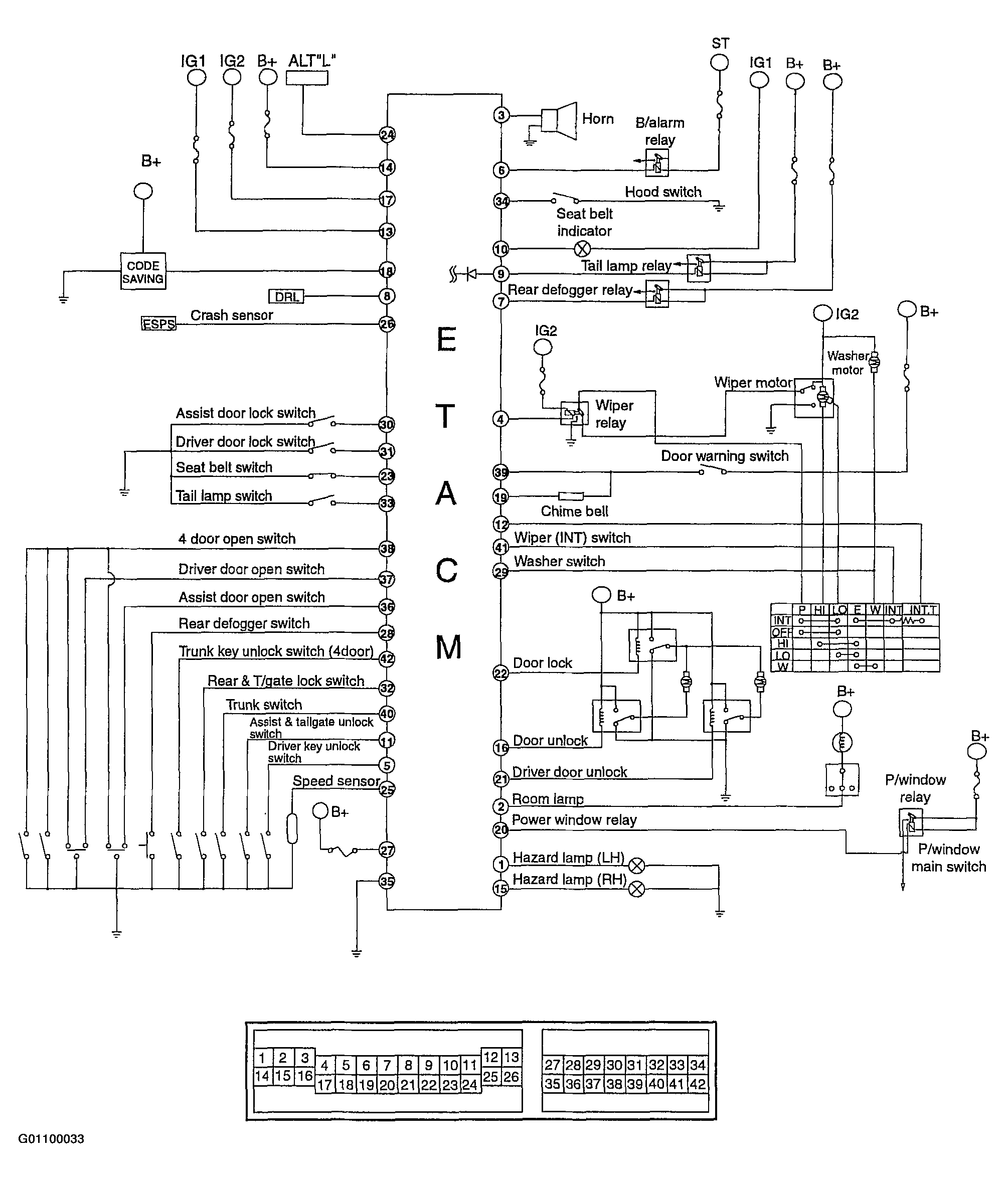

Fig 1: ETACS Circuit Diagram & Connector Terminal Identification
