Shift & Key Lock Control System
›
Circuit Diagram
Circuit Diagram

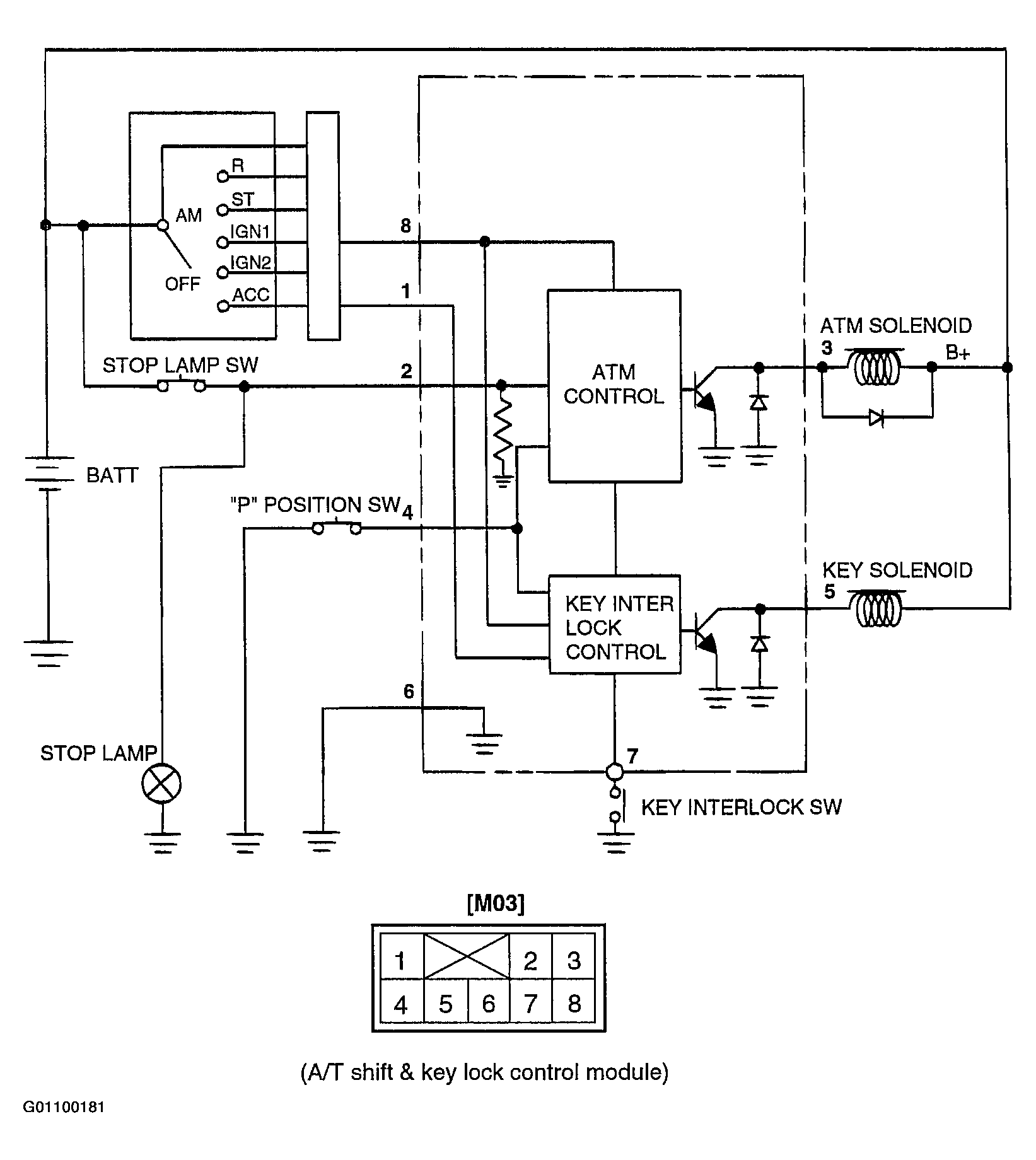

Fig 1: Shift & Key Lock Control System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
