Ignition Switch/Steering Lock
›
Shift & Key Lock Control System
›
Inspection
›
Timing Chart
Timing Chart

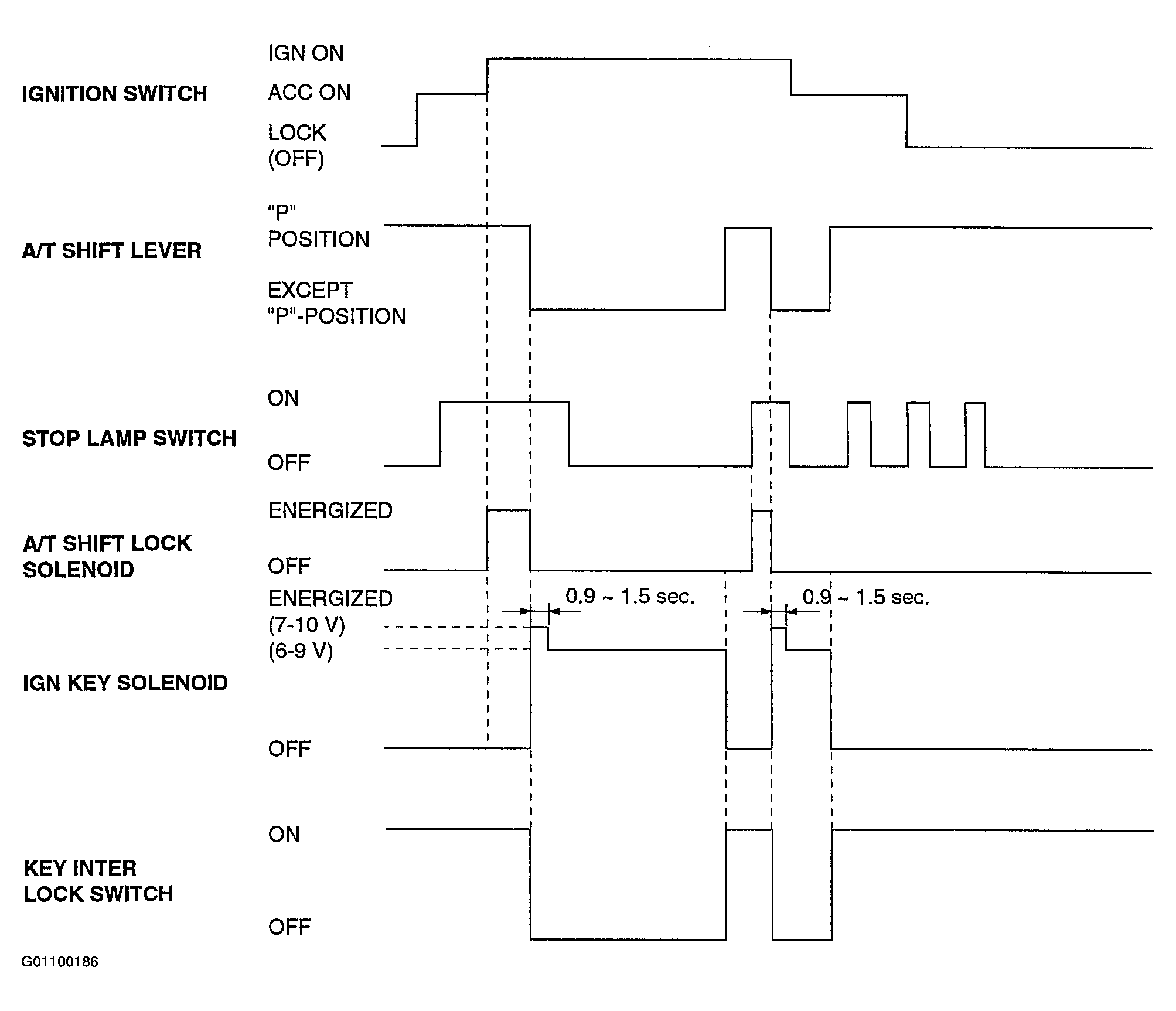

Fig 1: System Timing Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
