Power Window Main Switch

  1. Remove the power window main switch from the driver's door trim panel.

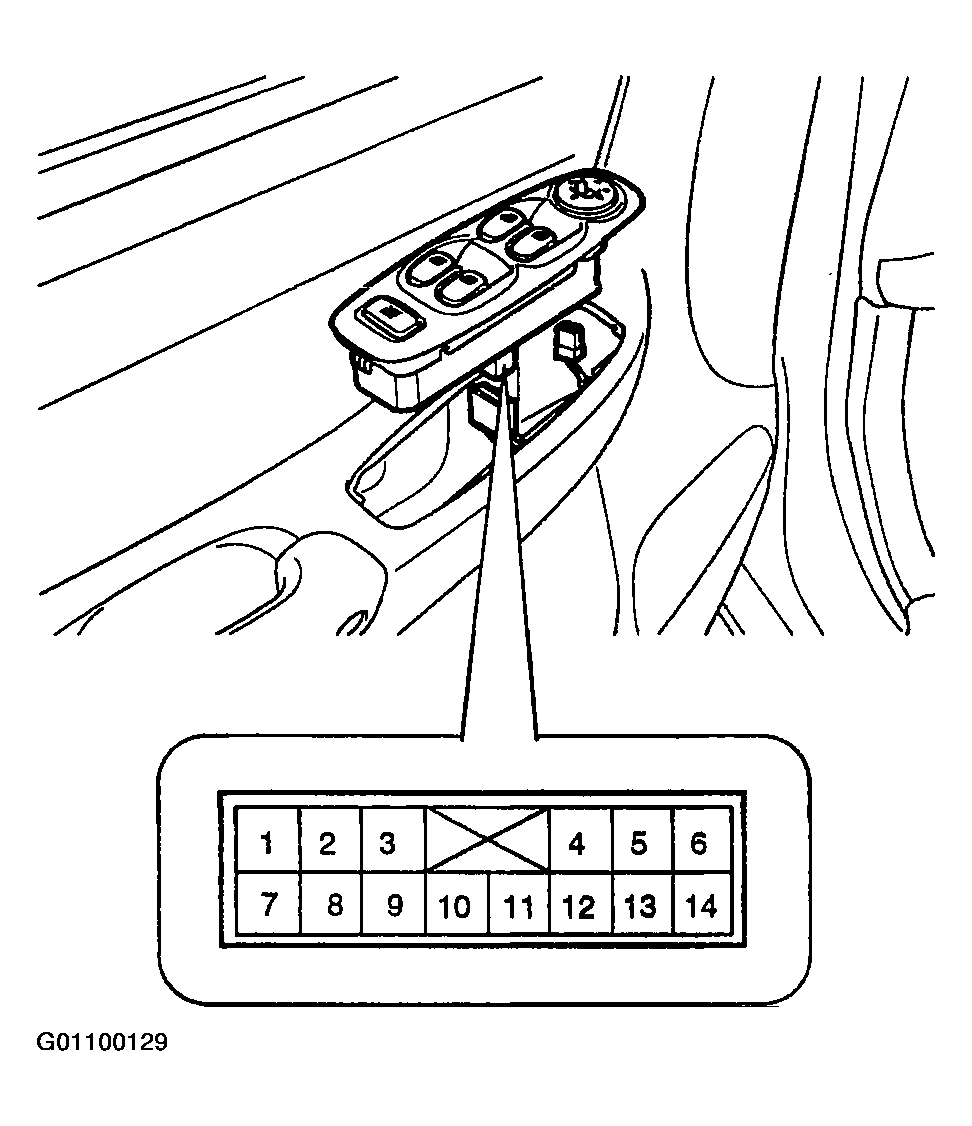

    Fig 1: Identifying Power Window Main Switch & Connector Terminals
    G01100129Courtesy of HYUNDAI MOTOR CO.
  2. Check for continuity between the terminals.

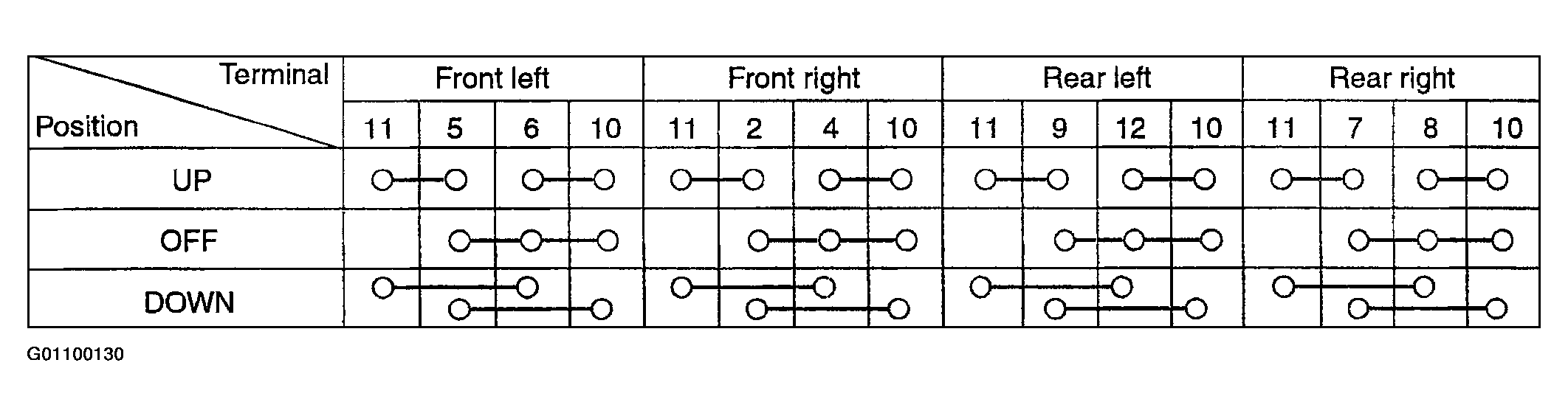

Fig 2: Power Window Main Switch Continuity Table
G01100130Courtesy of HYUNDAI MOTOR CO.
