Power Window Sub Switch

  1. Remove the power window sub switch from the rear door trim panel.

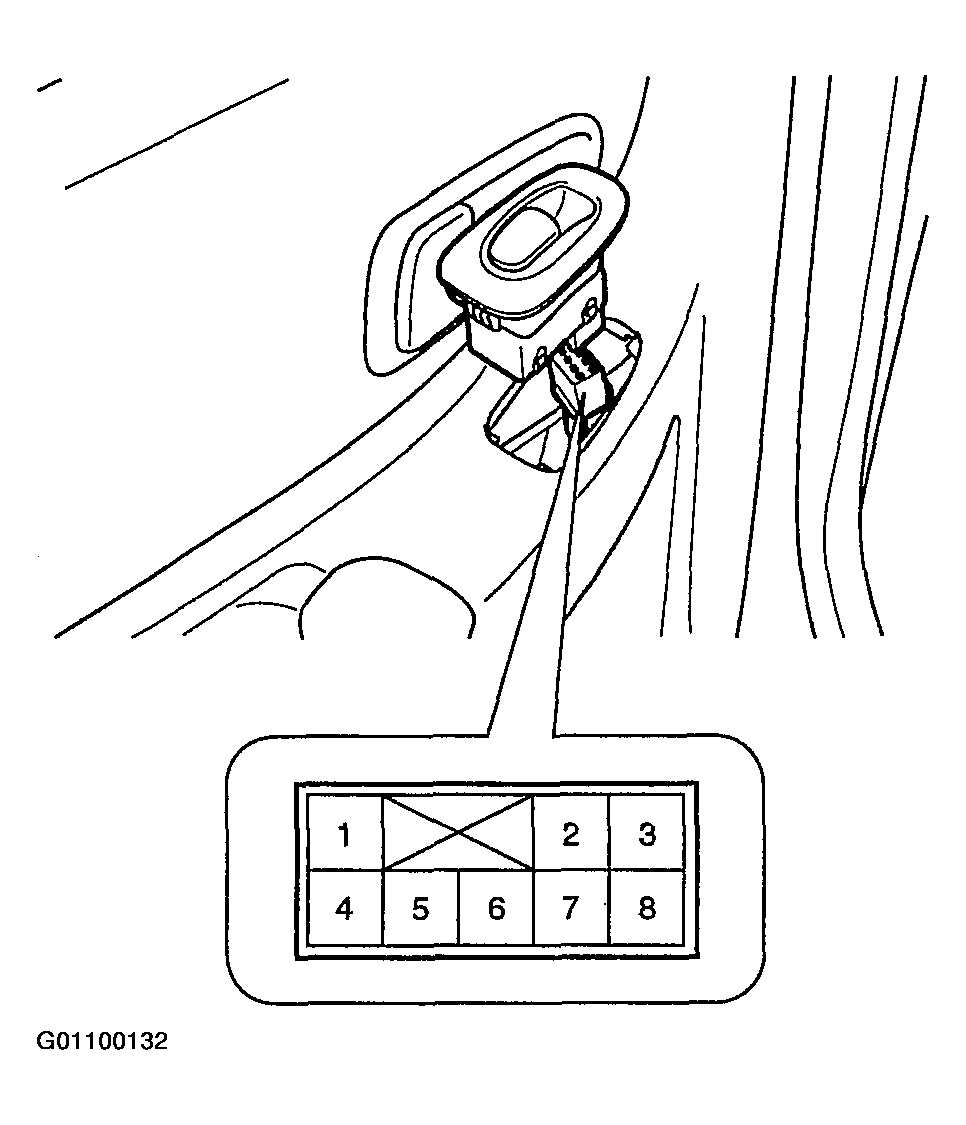

    Fig 1: Identifying Power Window Sub Switch & Connector Terminals
    G01100132Courtesy of HYUNDAI MOTOR CO.
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.
Fig 2: Power Window Sub Switch Continuity Table
G01100133Courtesy of HYUNDAI MOTOR CO.
