Inspection At HECU Terminals

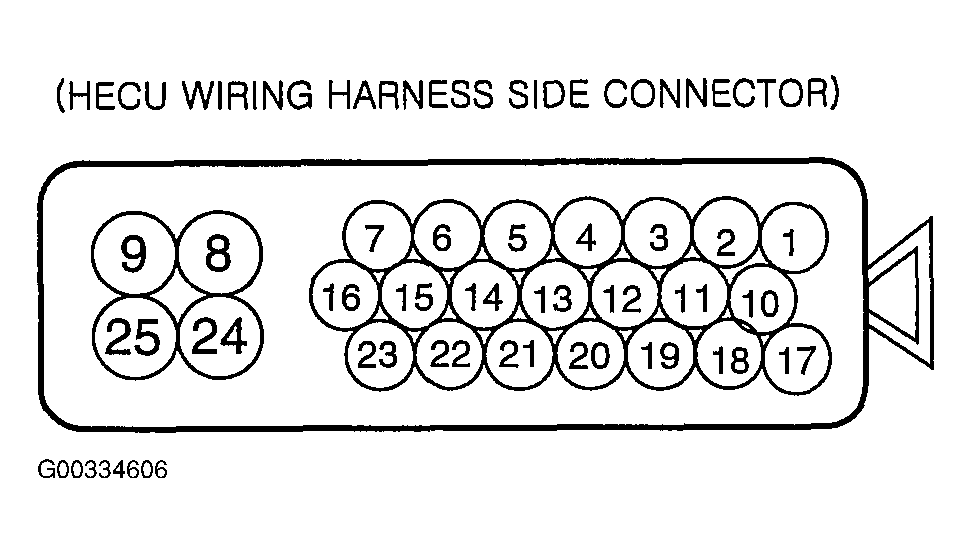

Fig 1: HECU Connector Wiring Harness Side View
G00334606Courtesy of HYUNDAI MOTOR CO.

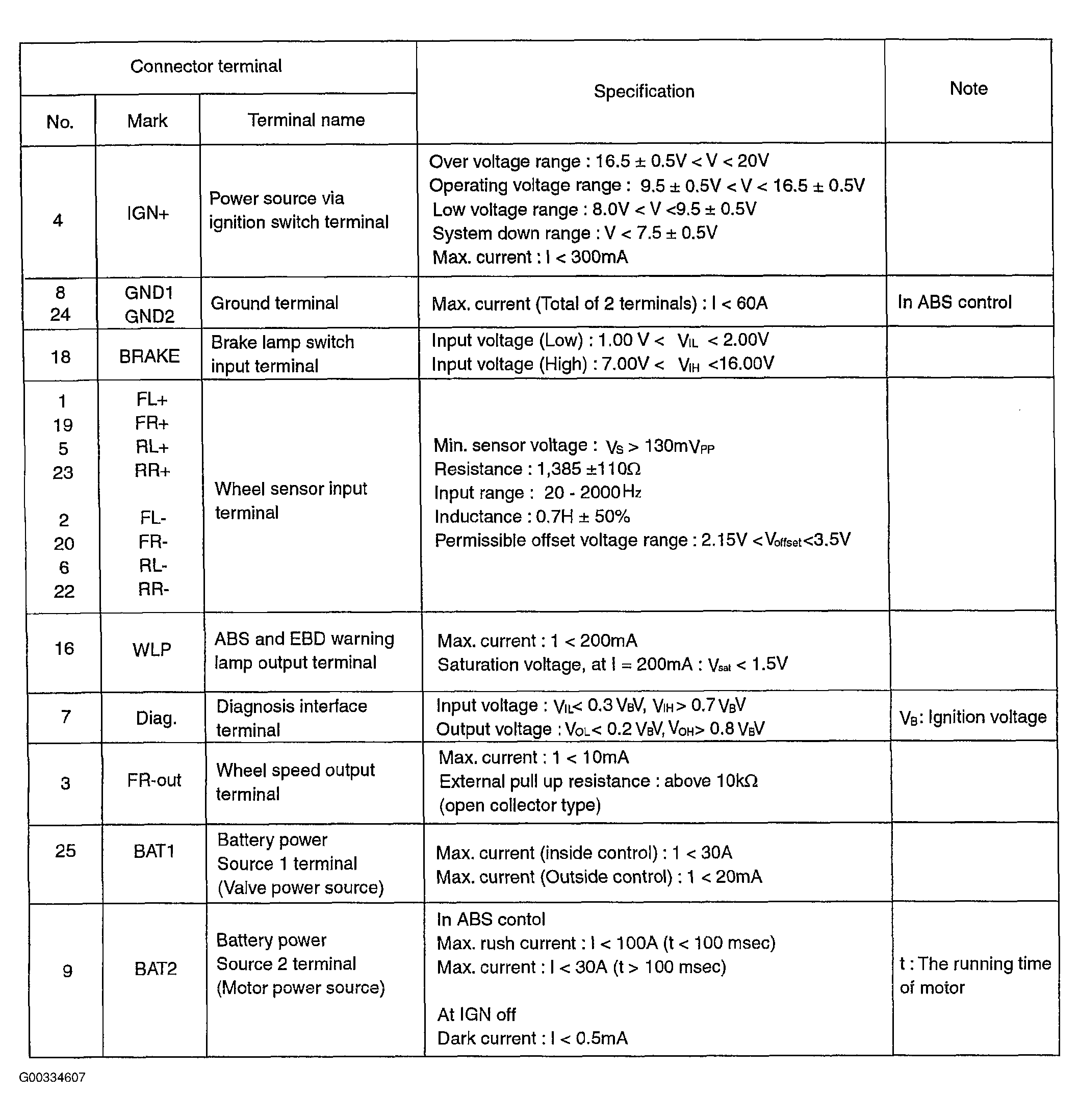

Fig 2: HECU Terminal Inspection Table
G00334607Courtesy of HYUNDAI MOTOR CO.
